8.4.7

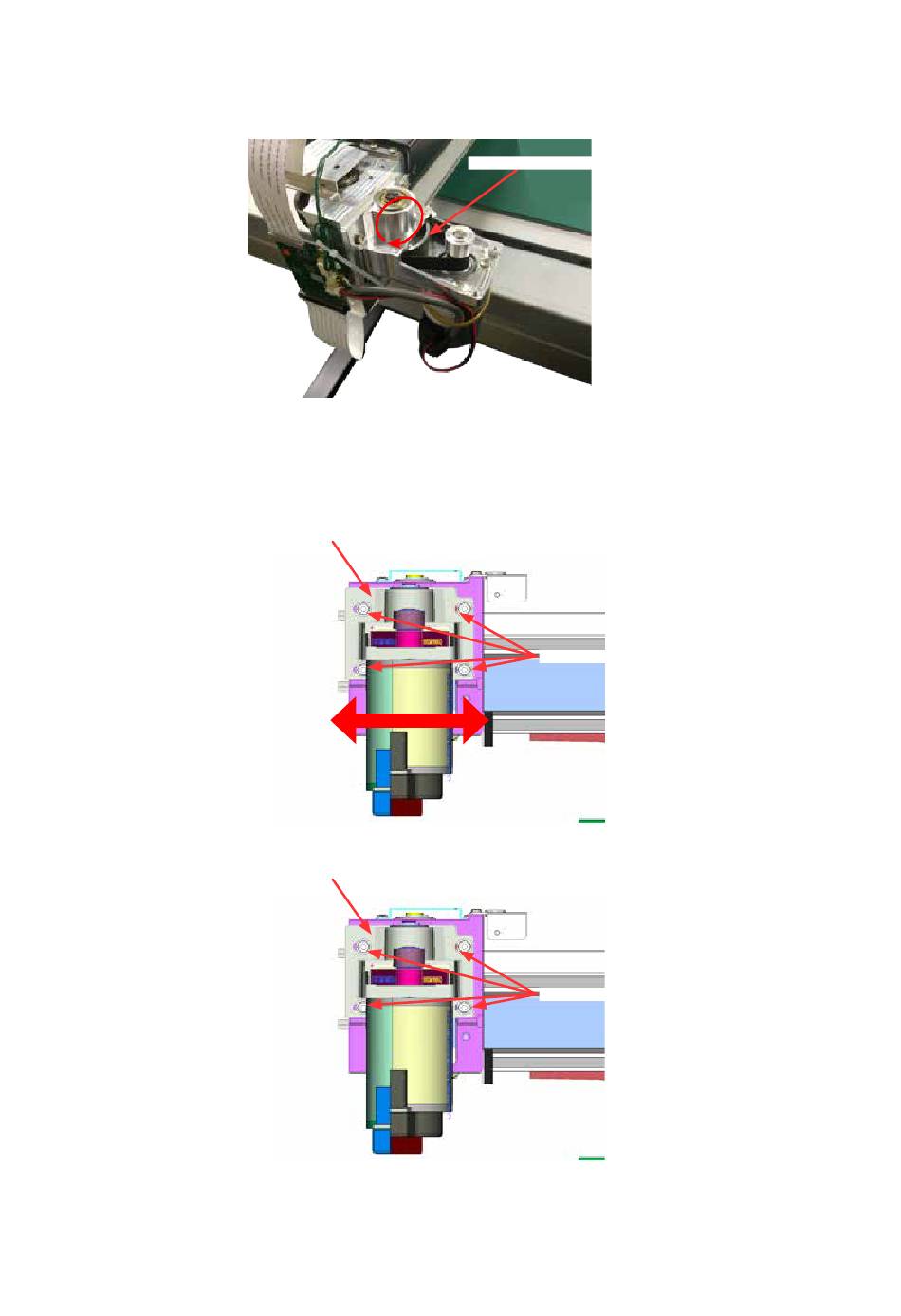

Adjusting the Play of Y Motor Drive Gear

Adjust the play of motor drive gear when the Motor Gear box was removed from the drive gear box.
(1) Turn the Y motor drive gear four times, and then find the small play gear position and big play position.
(2) Turn the Y motor drive gear to the small play gear position.
(3) Loosen the four M4L8 Cap screws a little holding the Y motor gear box.
(4) Adjust the Y motor gear position to the red arrow direction to remove the small play between the Y
driver gear and Y motor drive gear.
(5) Tighten the four M4L8 Cap screws holding the Y motor gar box.
FCX2000-UM-251-9370
Y motor gear box
Y motor gear box
8 DISASSEMBLY AND ASSEMBLY
Y motor drive gear (large gear)
M4L8 cap screw
M4L8 cap screw
8-53
