8 DISASSEMBLY AND ASSEMBLY
8.3

Y-Axis Drive Part

8.3.1

Y Motor

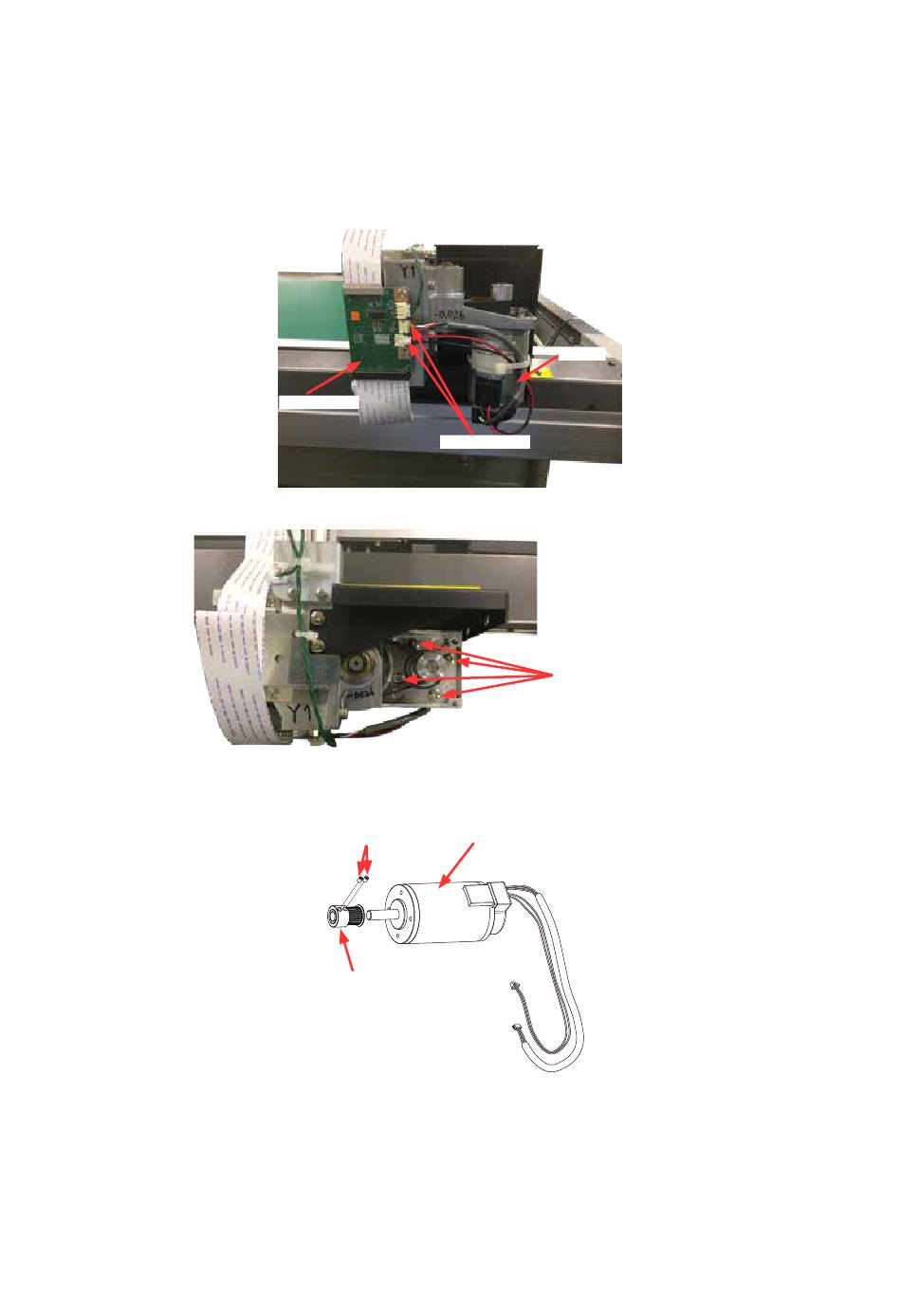

How to detach the Y Motor
(1) Detach the rear Y bar end cover (Refer to the section 8.1.16.).
(2) Disconnect the Y motor cables from the Y relay board.
Y motor
Y relay board
Y motor cables
(3) Remove the four M4L8 binding head screws holding the Y motor, and then detach it.
M4L8 binding head screw
(4) Loosen the two M4L5 set screws holding the Y motor pulley, and then detach it.
Y motor
M4L5 set screw
Y motor pulley
FCX2000-UM-251-9370 8-29
