8
DISASSEMBLY AND ASSEMBLY
8.7
Electrostatic Adhesion Part (FCX2000-120ES only)
8.7.1
High Voltage Board
How to detach the High Voltage Board
(1) Detach the right top cover (Refer to the section 8.1.5.).
(2) Disconnect the high voltage board cable from the relay connectors.
(3) Remove the four M3L6 binding head screws holding the high voltage board, and the detach it.

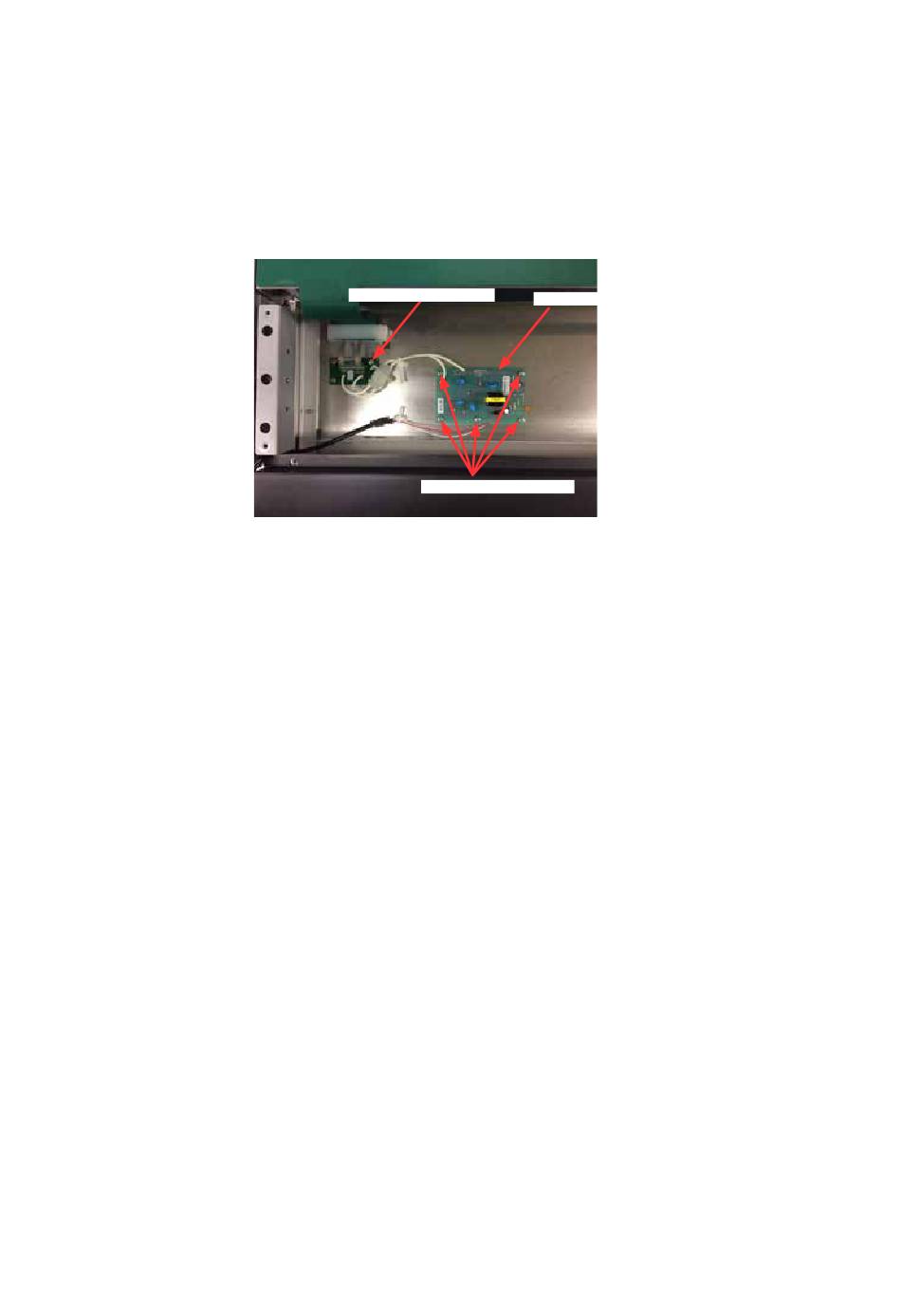

Electrostatic relay board
High voltage board
M3L6 binding head screw
How to reinstall the High Voltage Board
(1) Reattach the high voltage board in the reverse order in which it was detached.
FCX2000-UM-251-9370
8-61
