4.6

Adjusting the Tool Carriage Height

Adjust the height of the tool carriage to suit the thickness of the media.
How to adjust the Tool Carriage Height

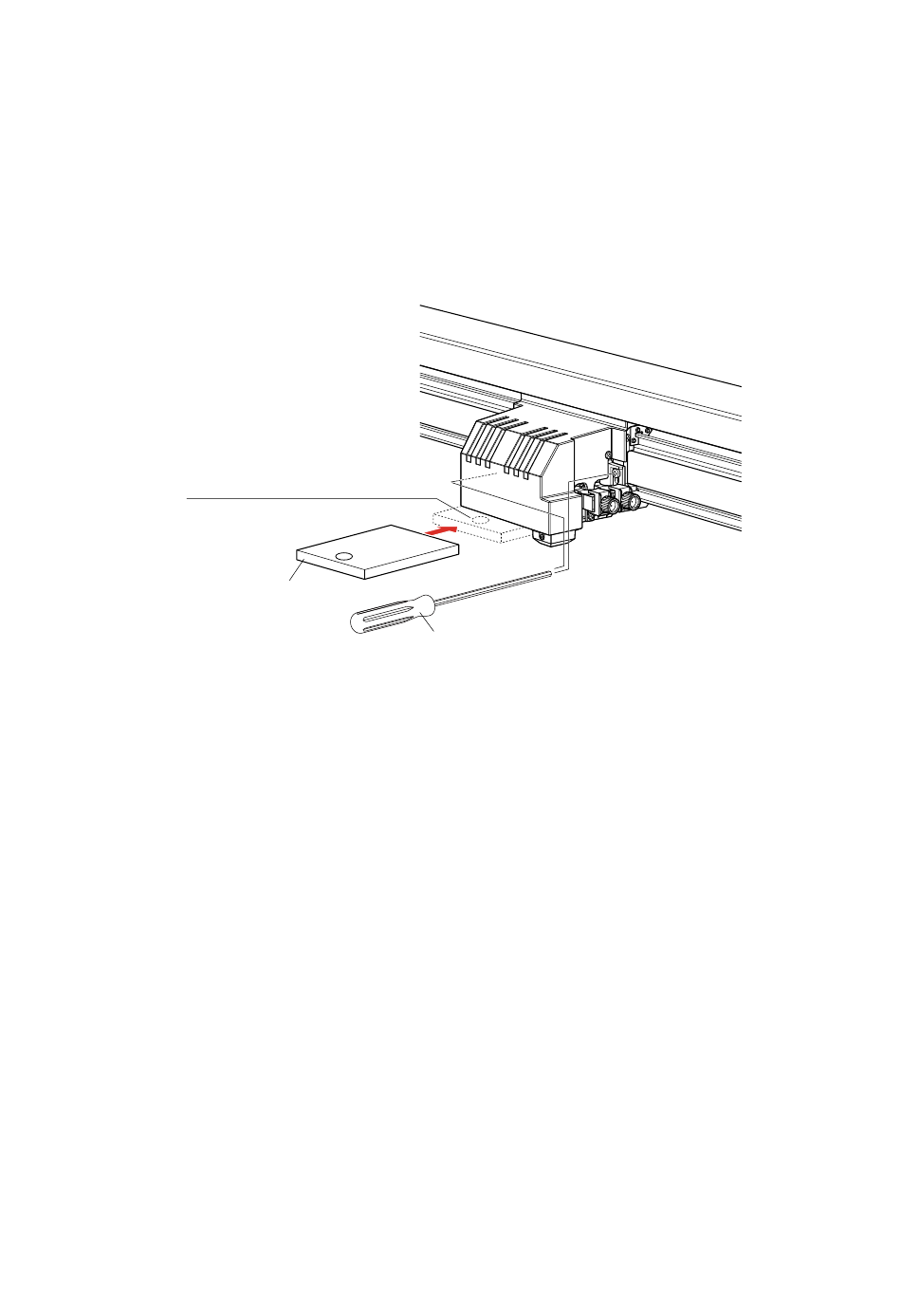

(1) Use the hexagon screw driver to loosen the two height adjustment bolts.
(2) When the pen carriage can be moved freely up and down, insert the height adjustment plate (thick)
under the pen carriage. Adjust the height of the tool carriage so that the tool carriage rests on top of the
plate.
Insert the height adjustment plate up to the position where the position adjustment hole can still be seen.
Insert the plate up to the position where
this hole can still be seen
Height adjustment plates
(3) Use the hexagon screw driver to tighten the height adjustment bolts. Make sure that the pen carriage is
parallel to the writing panel.
(4) When the adjustment is complete, remove the height adjustment plate (thick) from under the pen
carriage.
FCX2000-UM-251-9730
1
Hexagon screw driver
4-15
4. OPERATIONS
2
