4. OPERATIONS
4.9.2

Confirm the Results of the Cutting Test

Confirm the cutting test results, and adjust to optimal setting. Repeat cutting test and adjustment until optimal
cut is achieved.
Adjustment of Offset
Check the corners of the triangles and rectangles. See "Setting the Tool Condition" and adjust the offset
value if the corner is not cut or if it is cut too much.

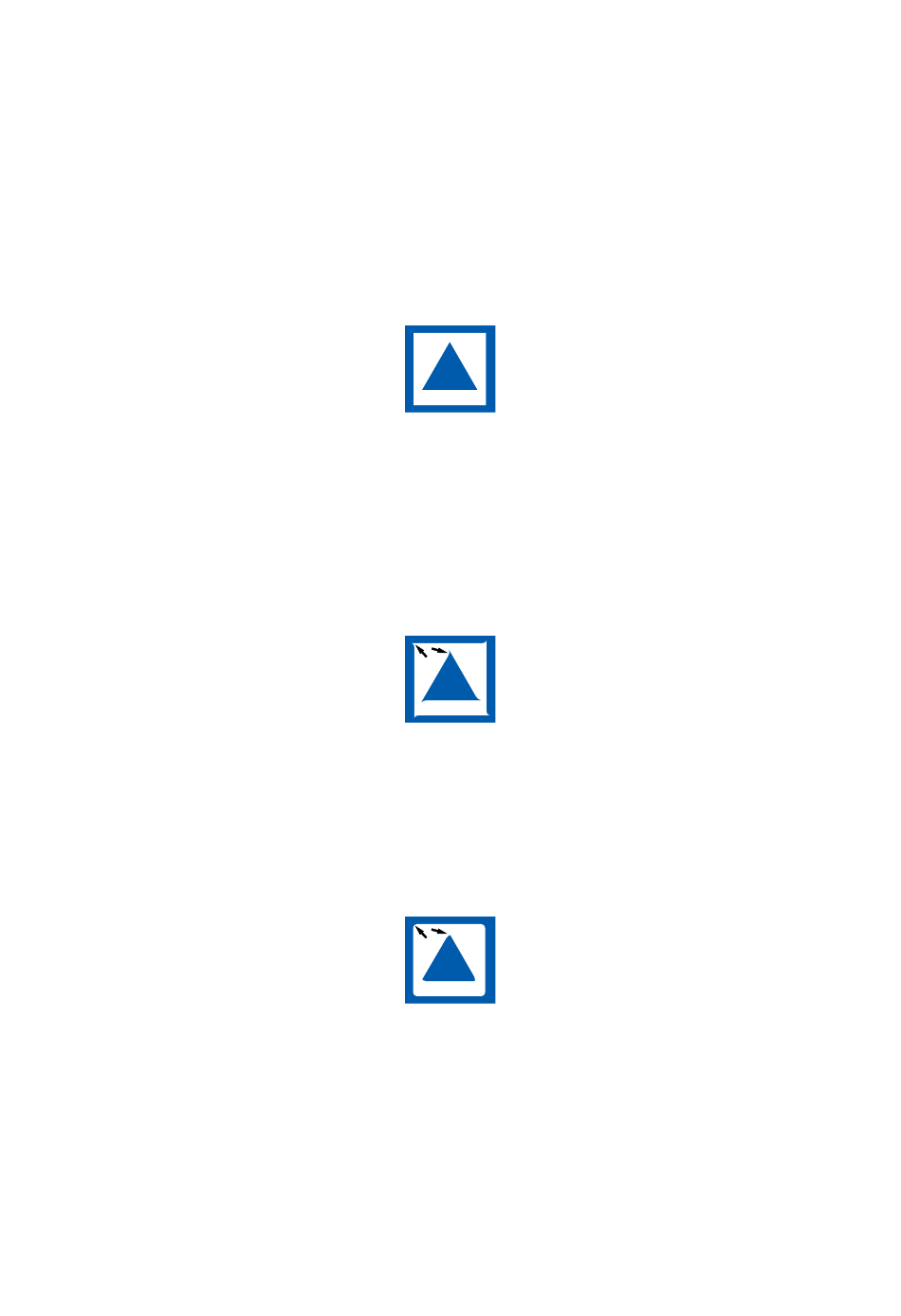

Optimal offset value.
The corner of triangle and the square cuts correctly that without peeling the corner as shown in the picture
below.
Too much offset value.
adjustment.
The corner of triangle and the square cuts sharp and the corner is peeling as shown in the picture below.
The offset is pre-set to the each blade type.
Confirm the blade type first.
At this time the thin diameter of blade is installed and the thick diameter of blade type is selecting.
Decrease the offset value when the correct blade type is selecting.
Not enough adjustment.
The corner of triangle and the square cuts rounded as shown in the picture below.
The offset is pre-set to the each blade type.
Confirm the blade type first.
At this time the thick diameter of blade is installed and the thin diameter of blade type is selecting.
Increase the offset value when the correct blade type is selecting.
FCX2000-UM-251-9730 4-25
