GRAPHTEC FCX2000 Service Manual page 145

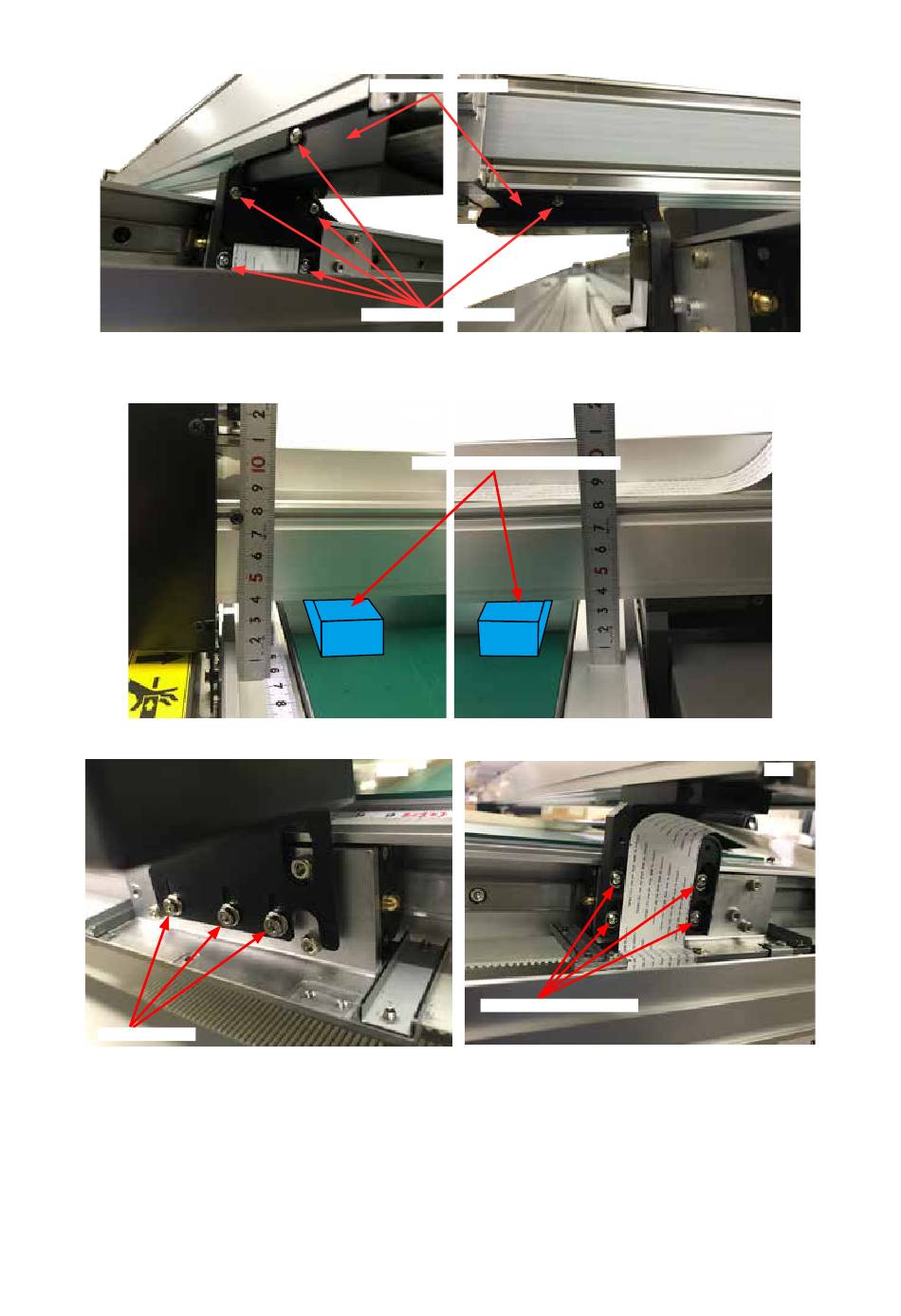

(5) Remove the six M3L6 binding head screws holding the X Flexible Cable Bracket, and then detach it.
(6) Put the spacers to under the Y bar which has almost same height of Y bar.
This will prevent the Y bar drop when the fixing screws of Y bar loosen.
(7) Loosen the three M4L8 cap screws and the four pan head cap screws holding the Y bar.
M4L8 cap screw
(8) Loosen the three M4L8 cap screws and the four pan head cap screws holding the Y bar.
(9) Adjust the Y bar height to up or down evenly at front and the rear.
Don't lift up or down too much one side.
Otherwise the front Y bar bracket will bend.
(10) Tighten the three M4L8 cap screws and the four pan head cap screws after the Y bar height was
adjusted.
(11) Attach all parts which were detached.
FCX2000-UM-251-9370
X flexible cable bracket
M3L6 binding head screw
Front
Put the spacers to under the Y bar.
Front
M4L8 pan head cap screw
8-70
8 DISASSEMBLY AND ASSEMBLY
Rear
Rear
