4. Basic Operation

4.1

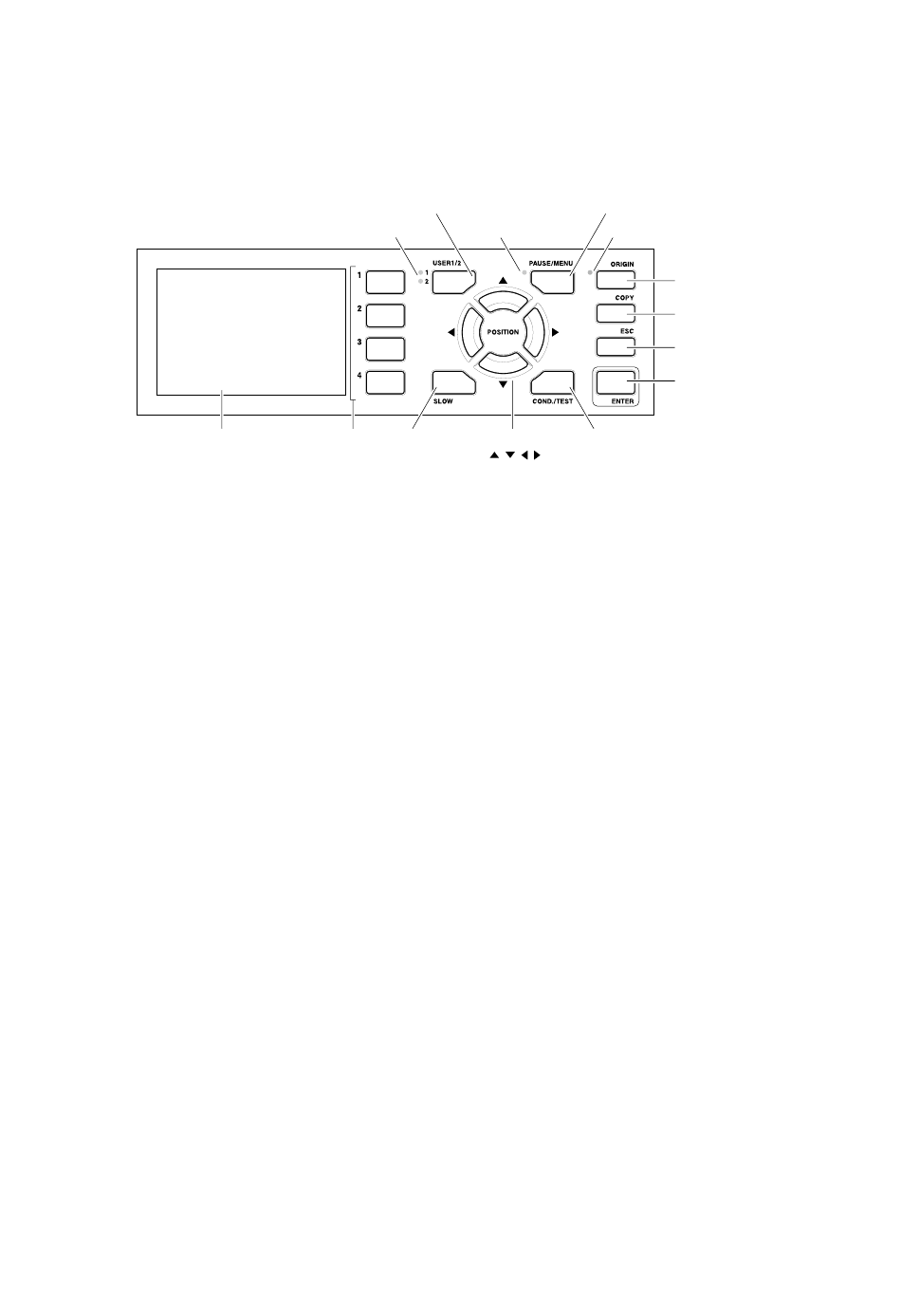

How to Use the Control Panel

This section explains the function of lamps and keys on the control panel.
Screen (LCD)
Indicator Lamp
USER 1/2 lamp ..........................User lamp that has been selected lights.
PAUSE/MENU lamp ..................Lights at the time of the menu mode.
ORIGIN lamp .............................When the origin point has been saved, the lamp lights.
Control key
USER 1/2...................................Switches the user selection.
PAUSE/MENU ...........................Switches to the MENU mode.
ORIGIN ......................................Sets the current position as an origin point.
COPY ........................................Copy of data in the buffer memory is output.
ESC ...........................................Cancels the setting change and then returns to the previous screen in the
ENTER ......................................Saves the settings, and then returns to the setting screen in various functions
COND/TEST ..............................Displays the screen to set the tool conditions.
FCX2000-UM-251-9730
[USER1/2] key
USER 1/2 lamp
[1, 2, 3, 4] key [SLOW] key
It will go into MENU mode if the key is pressed once, and MENU mode will
be turned off when the key is pressed again.
Various functions are set in the MENU mode.
When the PAUSE/MENU key is pressed during the operation, the cutting/
plotting operation stops.
On the READY screen, pressing the [ENTER] and [ORIGIN] keys at the
same time will allow you to reset the plotter.
setting screen. Returns to the previous screen in the menu screen.
and condition setting screen of the menu screen.
On the READY screen, pressing the [ENTER] and [ORIGIN] keys at the
same time will allow you to reset the machine.
Use this when checking tool conditions to activate a cutting test.
[PAUSE/MENU] key
[PAUSE/MENU]
lamp
ORIGIN lamp
POSION [COND./TEST] key
( , , , )
key
4-1
4. OPERATIONS
[ORIGIN] key
[COPY] key
[ESC] key
[ENTER] key
