8 DISASSEMBLY AND ASSEMBLY

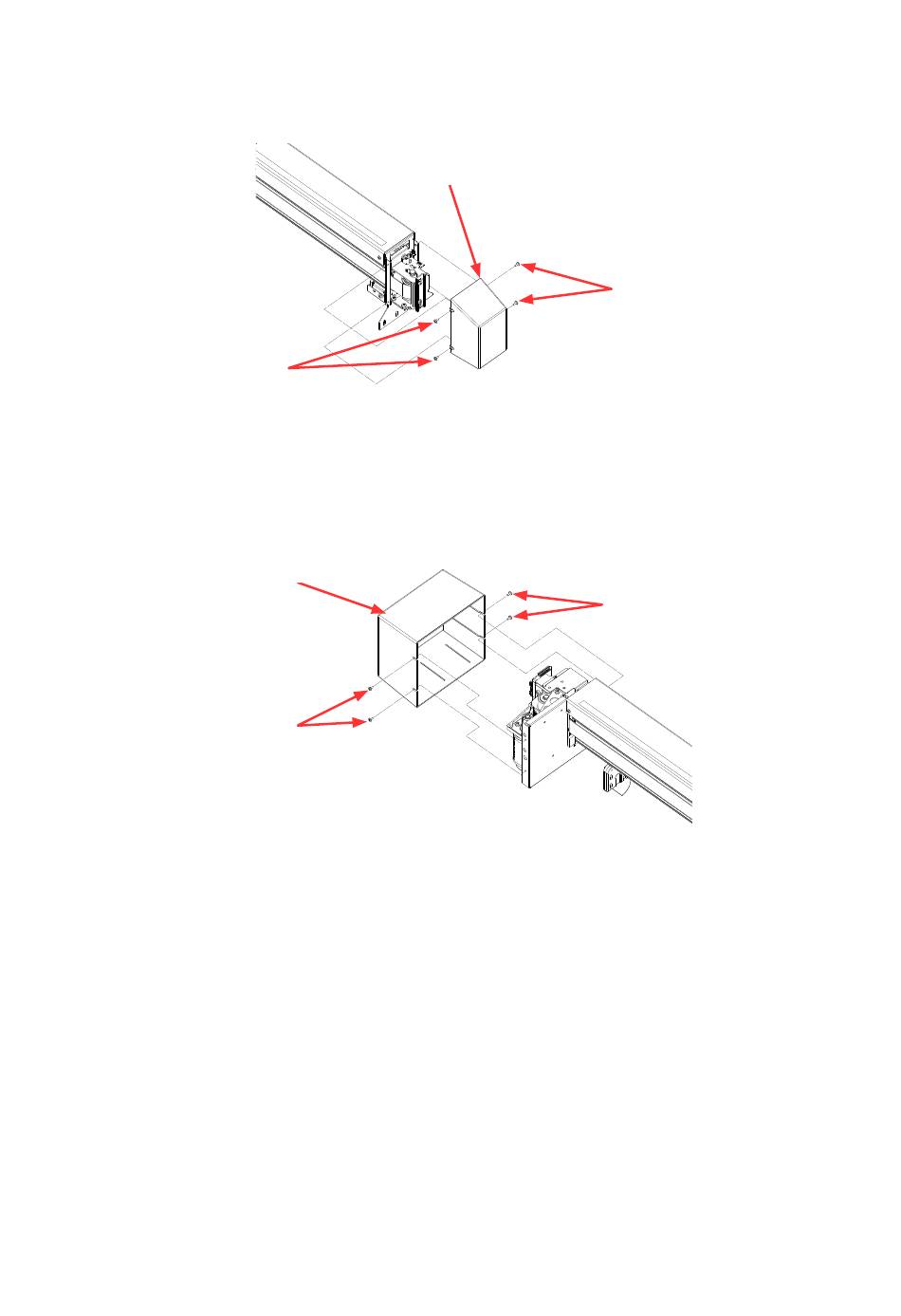

8.1.15 Front Y Bar End Cover

How to detach the Front Y Bar End Cover
(1) Remove the four M3L6 binding head screws holding the front Y bar end cover, and then detach it.
Front Y bar end cover
M3L6 binding head screw
M3L6 binding head screw
How to reinstall the Front Y Bar End Cover
(1) Reattach the front Y bar end cover in the reverse order in which it was detached.

8.1.16 Rear Y Bar End Cover

How to detach the Rear Y Bar End Cover
(1) Remove the four M3L6 binding head screws holding the rear Y bar end cover, and then detach it.
Rear Y bar end cover
M3L6 binding head screw
M3L6 binding head screw
How to reinstall the Rear Y Bar End Cover
(1) Reattach the rear Y bar end cover in the reverse order in which it was detached.
FCX2000-UM-251-9370 8-12
