8 DISASSEMBLY AND ASSEMBLY
8.2.2 X Motor Belt
How to detach the X Motor Belt
(1) Detach the left top cover (Refer to the section 8.1.6.).
(2) Detach the X motor (Refer to the section 8.2.1.).

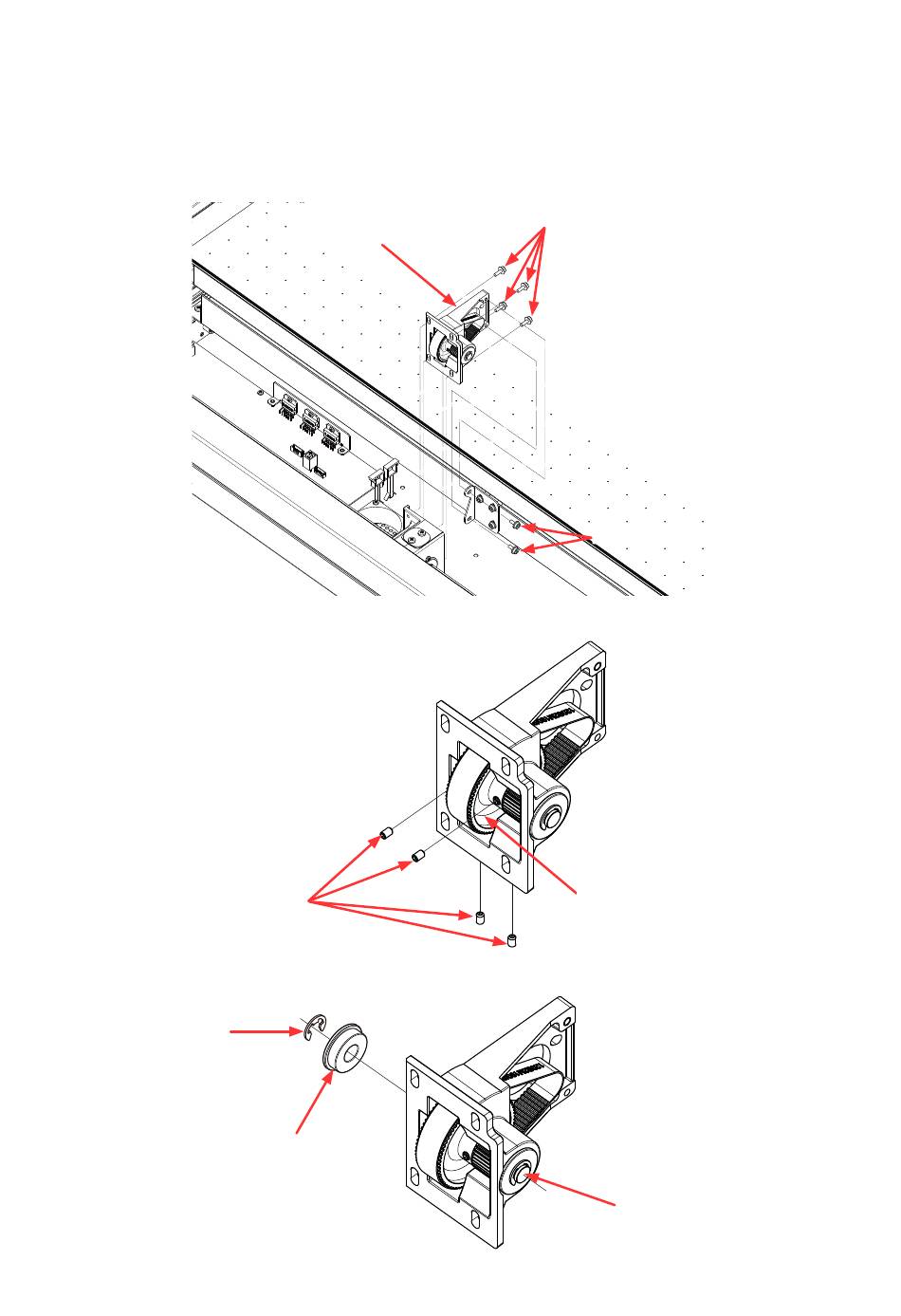

(3) Remove the six M4L8 cap screws holding the X motor bracket assembly, and then detach it.
M4L8 cap screw
X motor bracket assembly
M4L8 cap screw
(4) Loosen the four M4L5 set screws holding the X motor drive gear.
X motor drive gear
M4L5 set screw
(5) Remove the C6 E-ring holding the X motor drive shaft bearing, and then detach it.
C6 E-ring
X motor drive shaft bearing
X motor drive shaft
FCX2000-UM-251-9370 8-16
