DISASSEMBLY AND ASSEMBLY
8.5.2
Power Supply Board
How to detach the power supply board
(1) Detach the left top cover (Refer to the section 8.1.6.).
(2) Disconnect all the cable from the power supply board.
(3) Remove the four M3L6 binding head screws holding the power supply board, then detach it.

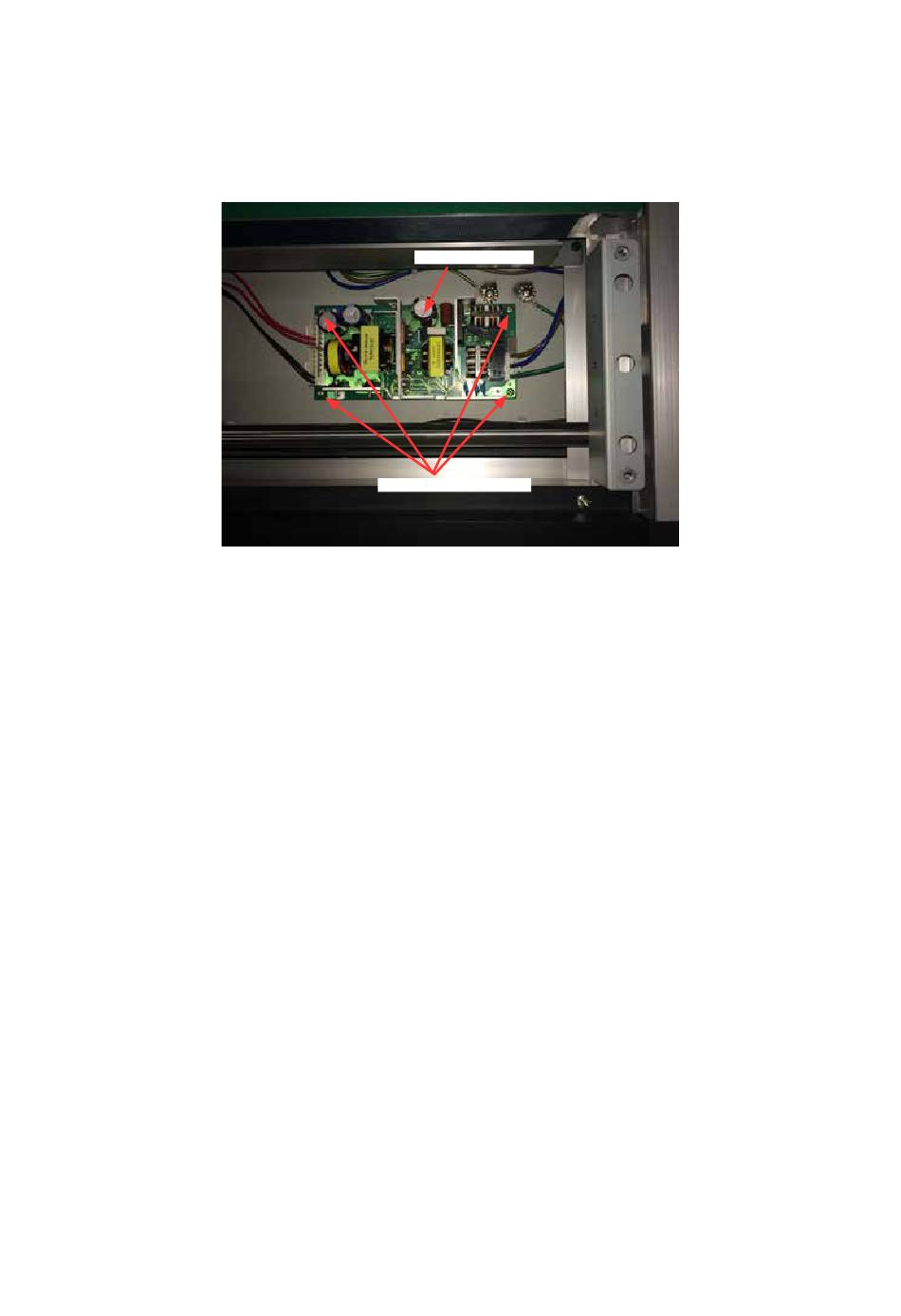

Power supply board
M3L6 binding head screw
How to reinstall the power supply board
(1) Reattach the power supply board in the reverse order in which it was detached.
FCX2000-UM-251-9370
