8 DISASSEMBLY AND ASSEMBLY
8.1
Outer Part
8.1.1
Right Front Corner Cover
How to detach the Right Front Corner Cover
(1) Remove the three M4L8 binding head screws holding the right front corner cover, and then detach it.
How to reinstall the Right Front Corner Cover
(1) Reattach the right front corner cover in the reverse order in which it was detached.
8.1.2
Right Rear Corner Cover
How to detach the Right Rear Corner Cover
(1) Remove the three M4L8 binding head screws holding the right rear corner cover, and then detach it.
How to reinstall the Right Rear Corner Cover
(1) Reattach the right rear corner cover in the reverse order in which it was detached.
FCX2000-UM-251-9370

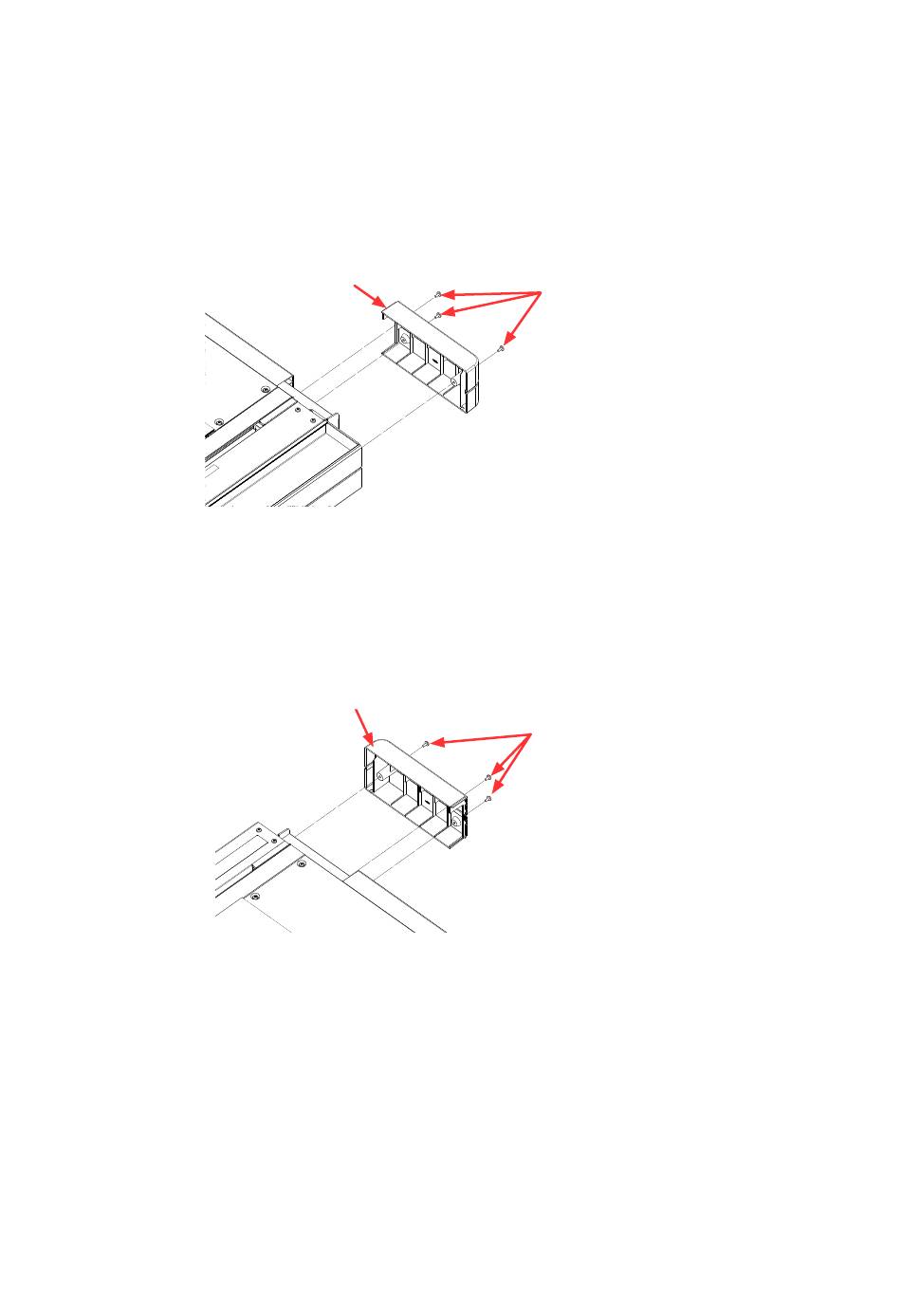

Right front corner cover
Right rear corner cover
8
DISASSEMBLY AND ASSEMBLY
M4L8 binding head screw
M4L8 binding head screw
