GRAPHTEC FCX2000 Service Manual page 97

How to reinstall the Rear X Belt
(1) Loosen the four set screws holding the front X drive pulley.
There is rear X drive pulley inside of X
drive pulley bracket.
(2) Shave 2 mm off ends of the X-belt until the wire comes out as shown below.
(3) Reattach the rear X belt in the reverse order in which it was detached.
(4) Adjust the rear X belt tension when installing the X drive belt (Refer to the section 8.4.4.).
(5) Apply a few quantity of the silicon grease to the belt and the tooth of pulley.
FCX2000-UM-251-9370

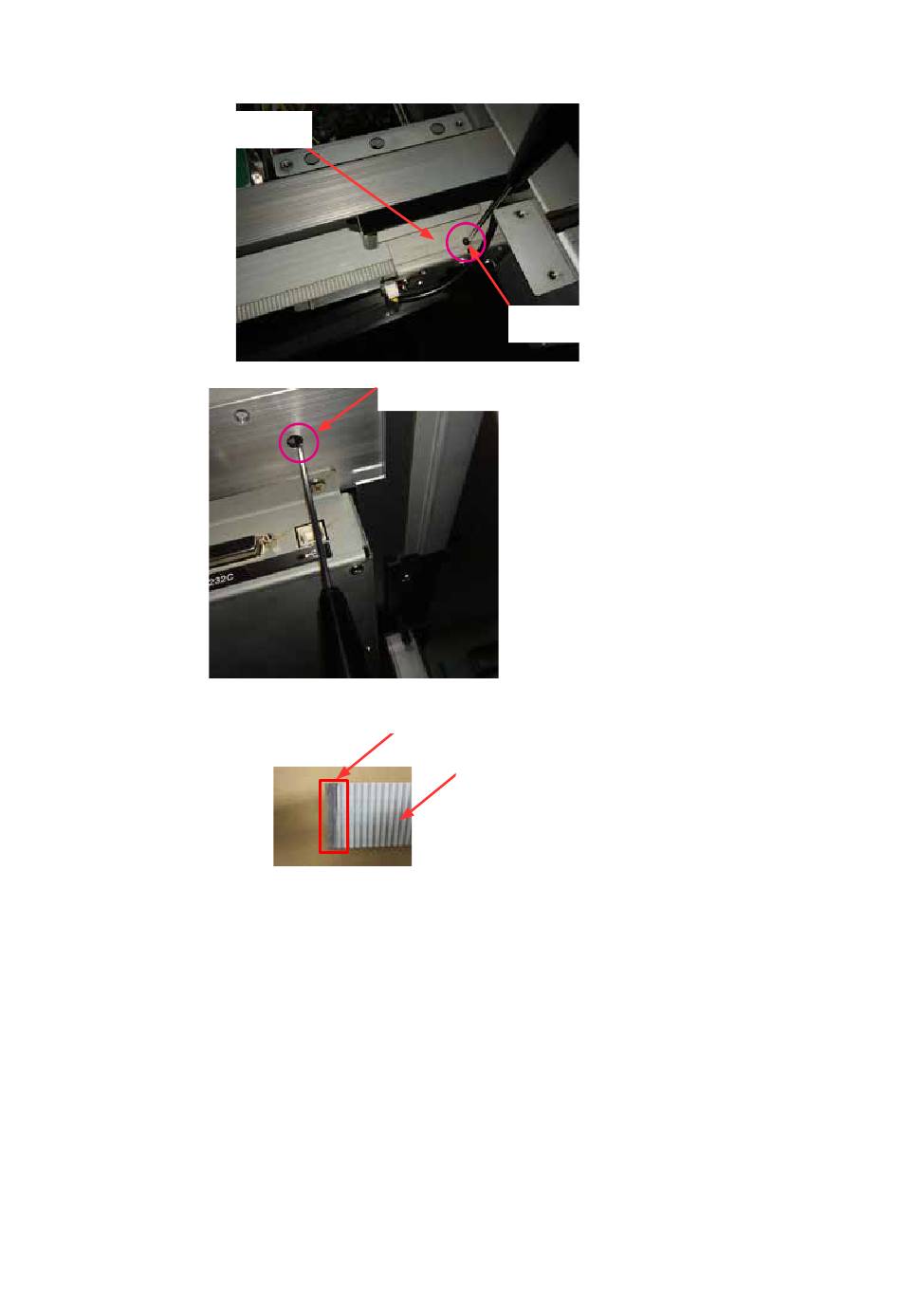

Loosen the two M4L5 set screws holding the rear X
drive pulley from this access hole.
Loosen the two M4L5 set screws holding the rear X
drive pulley from this access hole.
Shave this area until the wire comes out.
X belt
8-22
8 DISASSEMBLY AND ASSEMBLY
