Installing the Warning Light Option OPH-A42

This option of FCX2000 is not installing the bracket and Warning Light cables, and the control box needs to
replace to the Warning Light.
Therefore, this option needs to replace the control box and then install the bracket and Warning Light cables
before installing the Warning Light Assembly.
Installing procedure

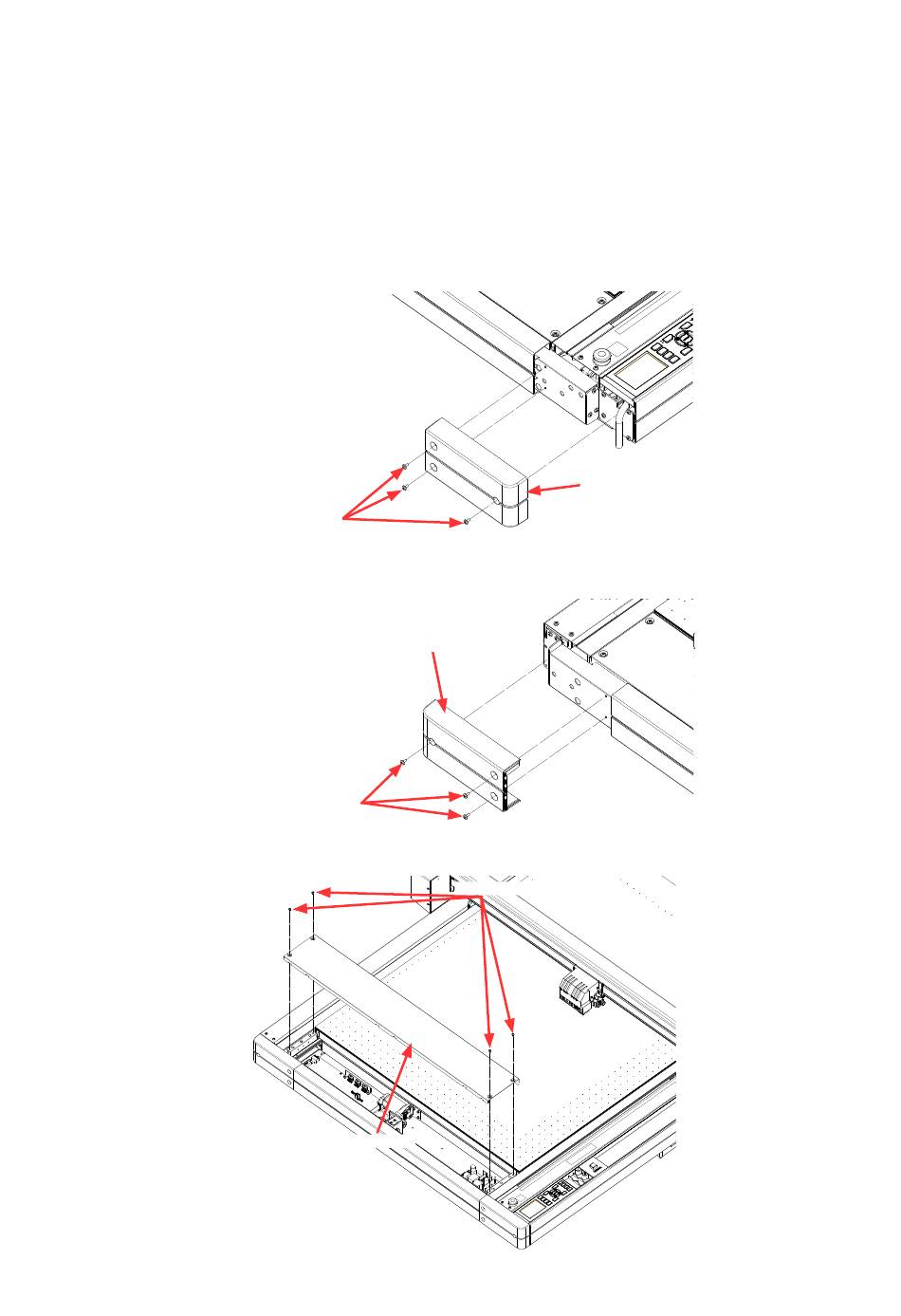

(1) Remove the three M4L8 binding head screws holding the left front corner cover, and then detach the left
front corner cover.
M4L8 binding head screw
(2) Remove the three M4L8 binding head screws holding the left rear corner cover, and then detach the left
rear corner cover.
M4L8 binding head screw
(3) Remove the four M4L8 binding head screws holding the left top cover, and then detach the left top cover.
FCX2000-UM-251-9370
Left rear corner cover
M4L8 binding head screw
Left top cover
2-19
2 Setup procedure
Left front corner cover
