13 Target electrical component for WEEE instruction

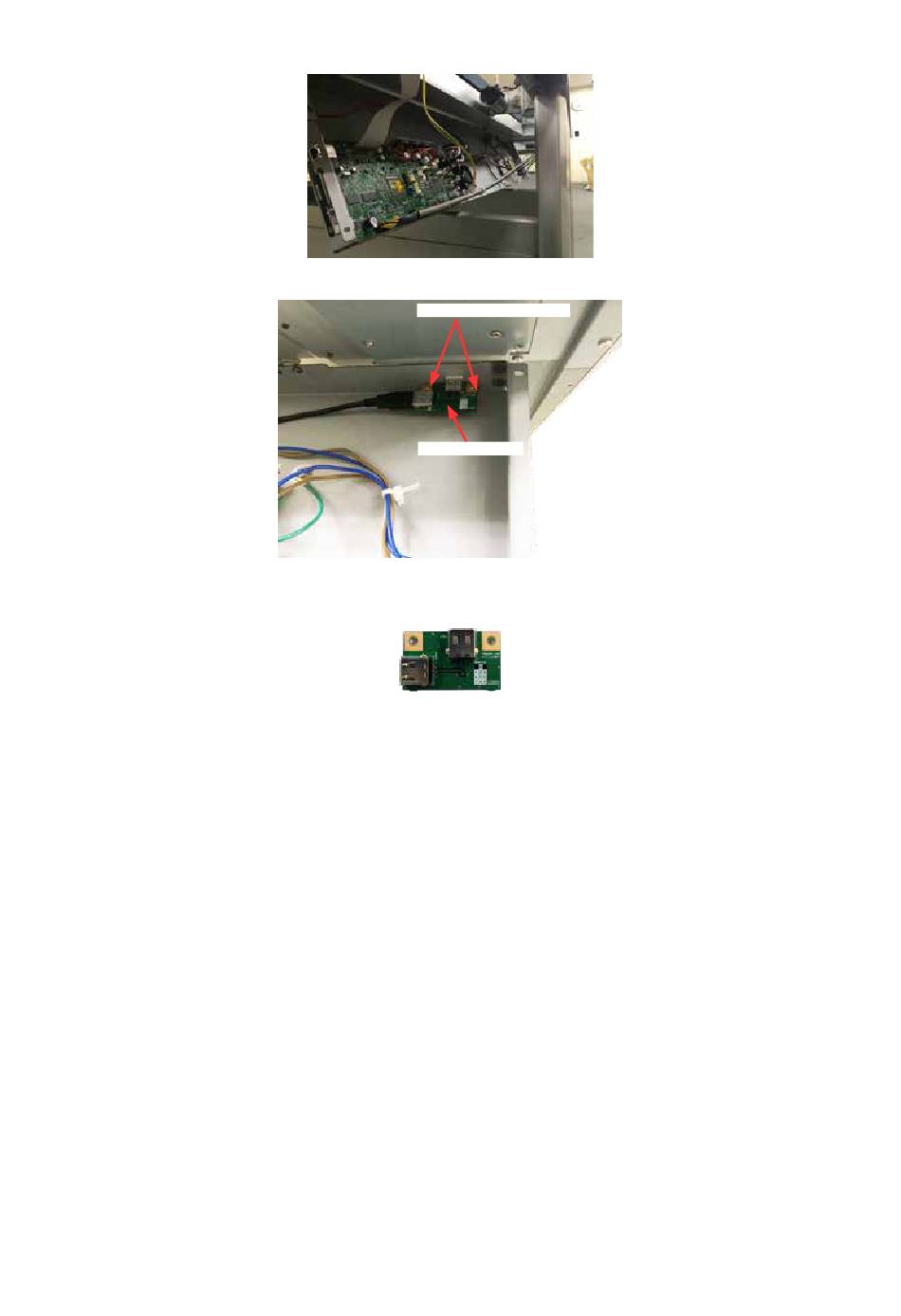

(10) Open the control box as shown in the following picture.
(11) Remove the two M3L6 binding head screws holding the USB relay board.
M3L6 binding head screw
USB Relay Board
(12) Disconnect the USB cable from the USB relay board.
(13) Detach the USB relay board.
FCX2000-UM-251-9370
