GRAPHTEC FCX2000 Service Manual page 181

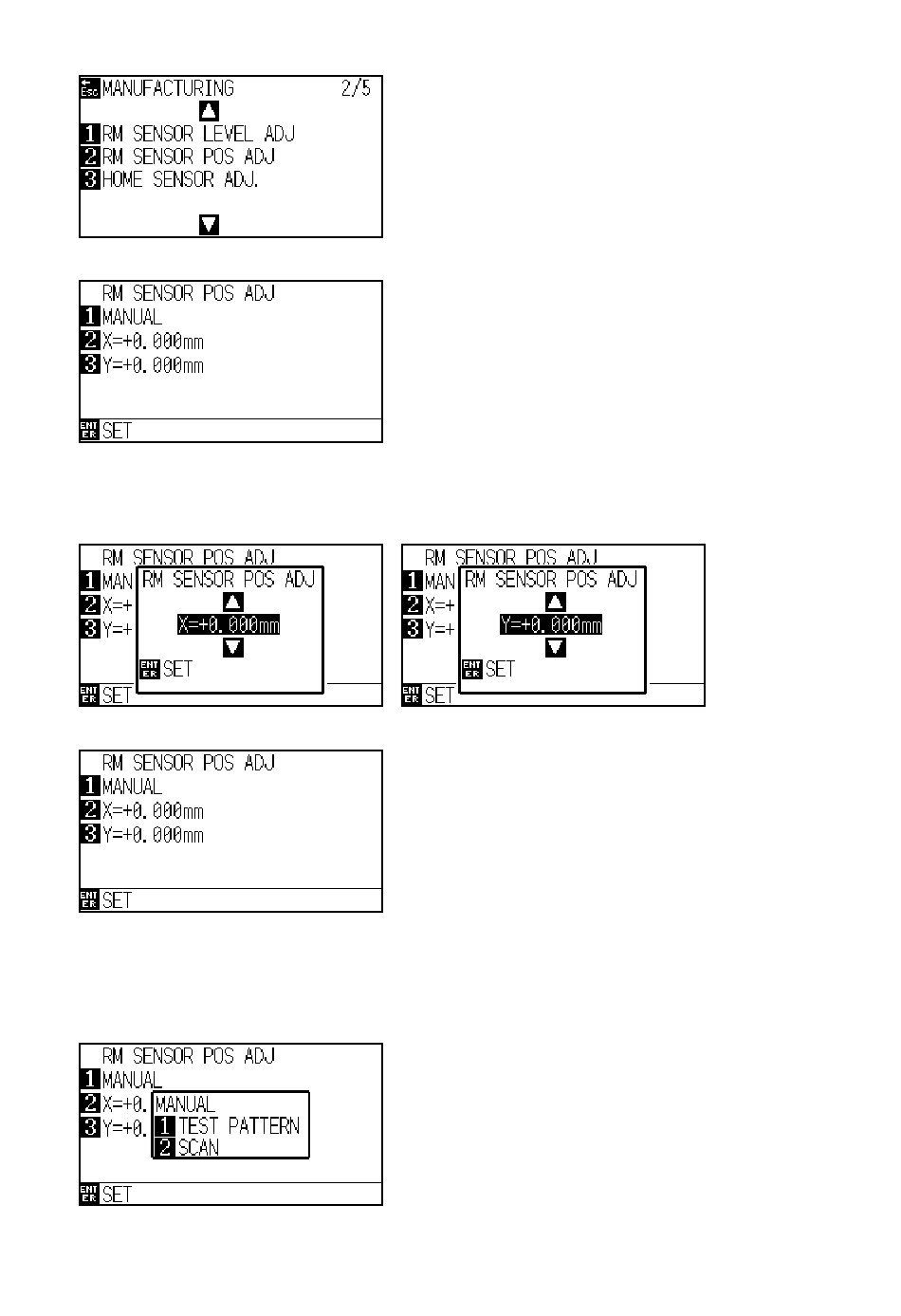

(7) Press the UP ARROW key to display the following menu.
(8) Press the F2 key (RM SENSOR POS ADJ) to display the following menu.
Press the F3 (X=) or F4 (Y=) to input the recorded adjustment values if you replace the main board.
Input the recorded adjustment value by using the Up arrow key or Down arrow key with the following
menu.
Press the ENTER key to store the value.
Press the ENTER key to store the value.
Skip to step (16)
(9) Press the F2 key (MANUAL) if the registration mark sensor was replaced. The following menu is
displayed.
FCX2000-UM-251-9370
9 ELECTRICAL ADJUSTMENTS
9-35
