DISASSEMBLY AND ASSEMBLY

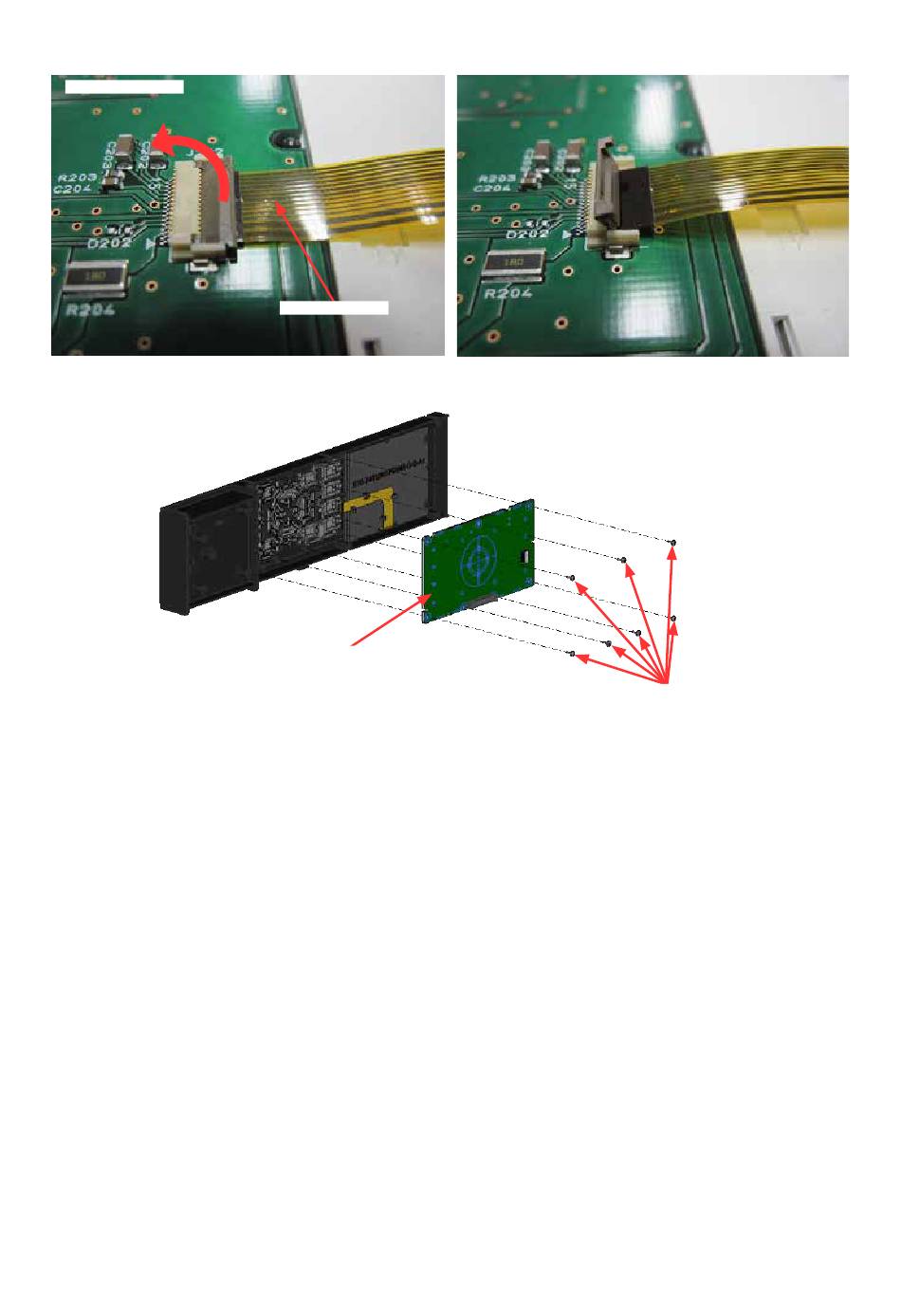

(8) Disconnect the LCD flexible cable from the control panel board.
Control panel board
LCD flexible cable
(9) Remove the six M2L5 self-tapping screws holding the control panel board, and the detach it.
Control panel board
M2L5 self-tapping screw
How to reinstall the control panel board
(1) Reattach the control panel board in the reverse order in which it was detached.
FCX2000-UM-251-9370
8-59
