GRAPHTEC FCX2000 Service Manual page 254

• Removing (C) Control Panel Board (I) LCD, BTG240128SFBWBG

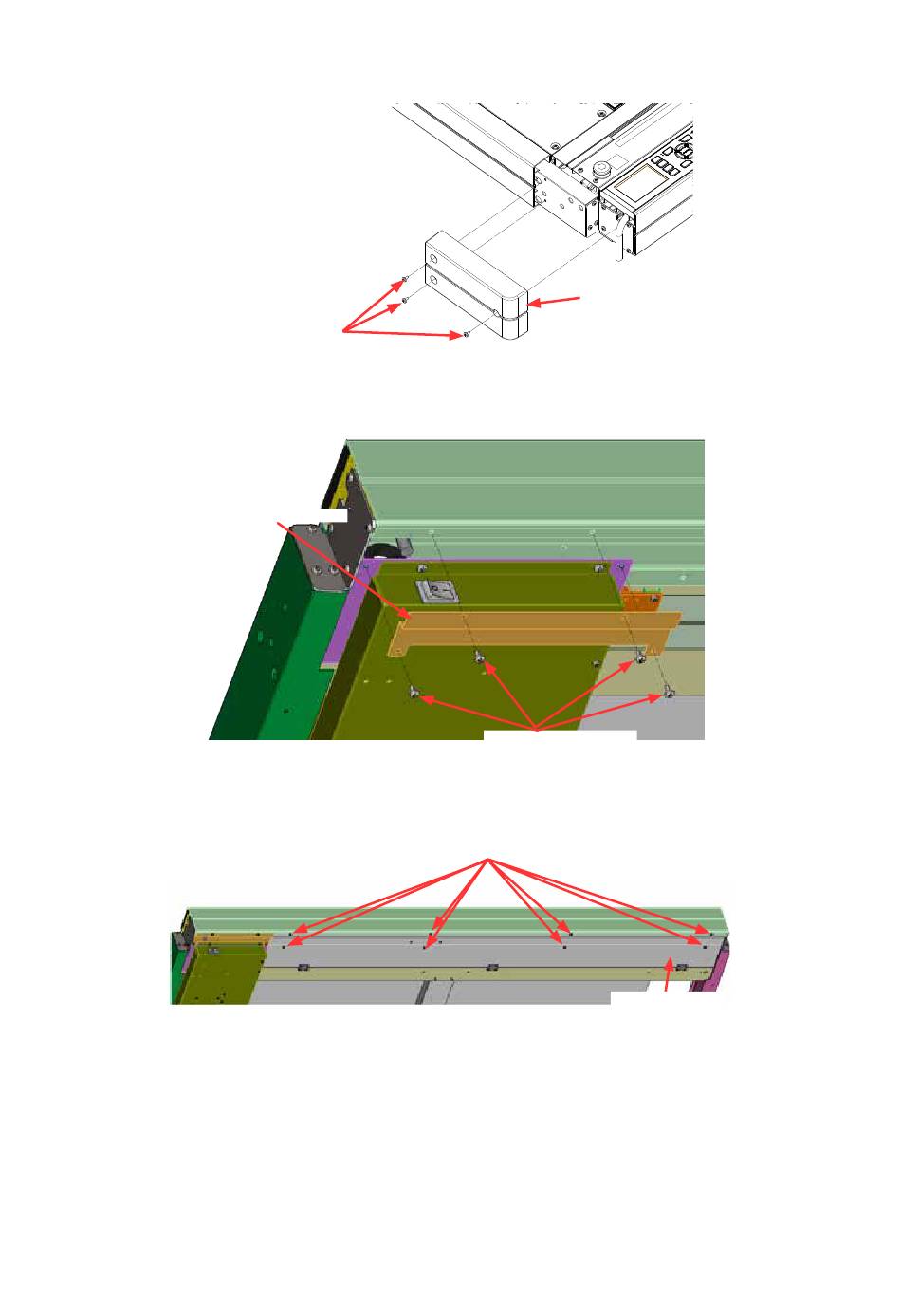

(1) Remove the three M4L8 binding head screws holding the left front corner cover, and then detach it.
M4L8 binding head screw
(2) Remove the four M4L6 binding head screws holding the control part bottom cover, and then detach
it.
Control part bottom cover
(3) Remove the six M4L8 binding head screws holding the front bottom cover for the FCX2000-60.
Remove the eight M4L8 binding head screws holding the front bottom cover for the FCX2000-120.
Remove the ten M4L8 binding head screws holding the front bottom cover for the FCX2000-180.
(4) Open the front bottom cover.
FCX2000-UM-251-9370
13 Target electrical component for WEEE instruction
Left front corner cover
M4L6 binding head screw
M4L8 binding head screw
13-7
Front bottom cover
