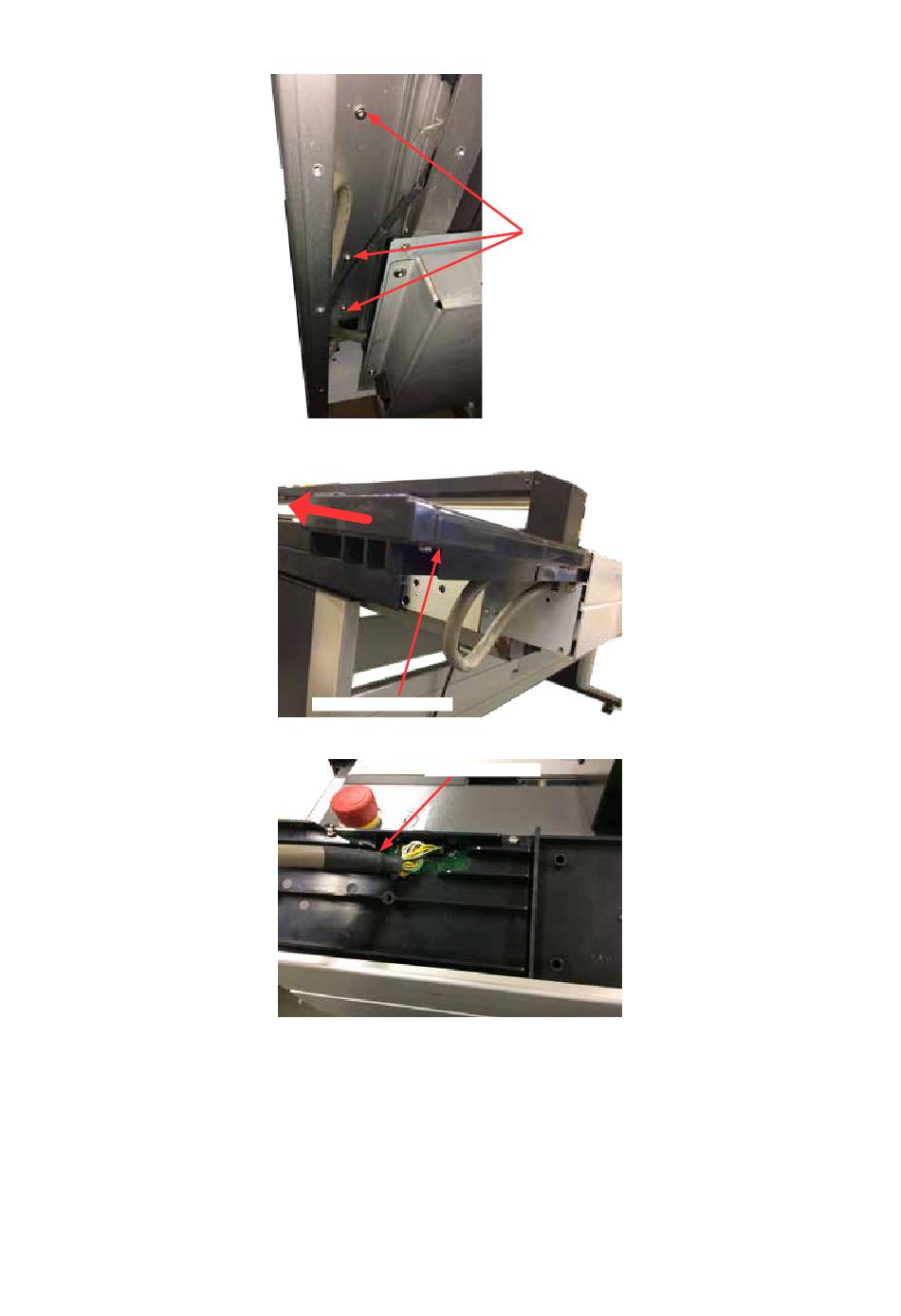

(5) Remove the three M4L10 self-tapping screws holding the control panel assembly.
(6) Pull out the control panel assembly from the tray during pushing the control panel cable.
(7) Disconnect the control panel cable from the control panel board.
FCX2000-UM-251-9370
13 Target electrical component for WEEE instruction
Control panel assembly
Control panel cable
13-8
M4L10 self-tapping screw
