Y Bar Cover - GRAPHTEC FCX2000 Service Manual

8 DISASSEMBLY AND ASSEMBLY

8.1.13 Y Bar Cover

How to detach the Y Bar Cover

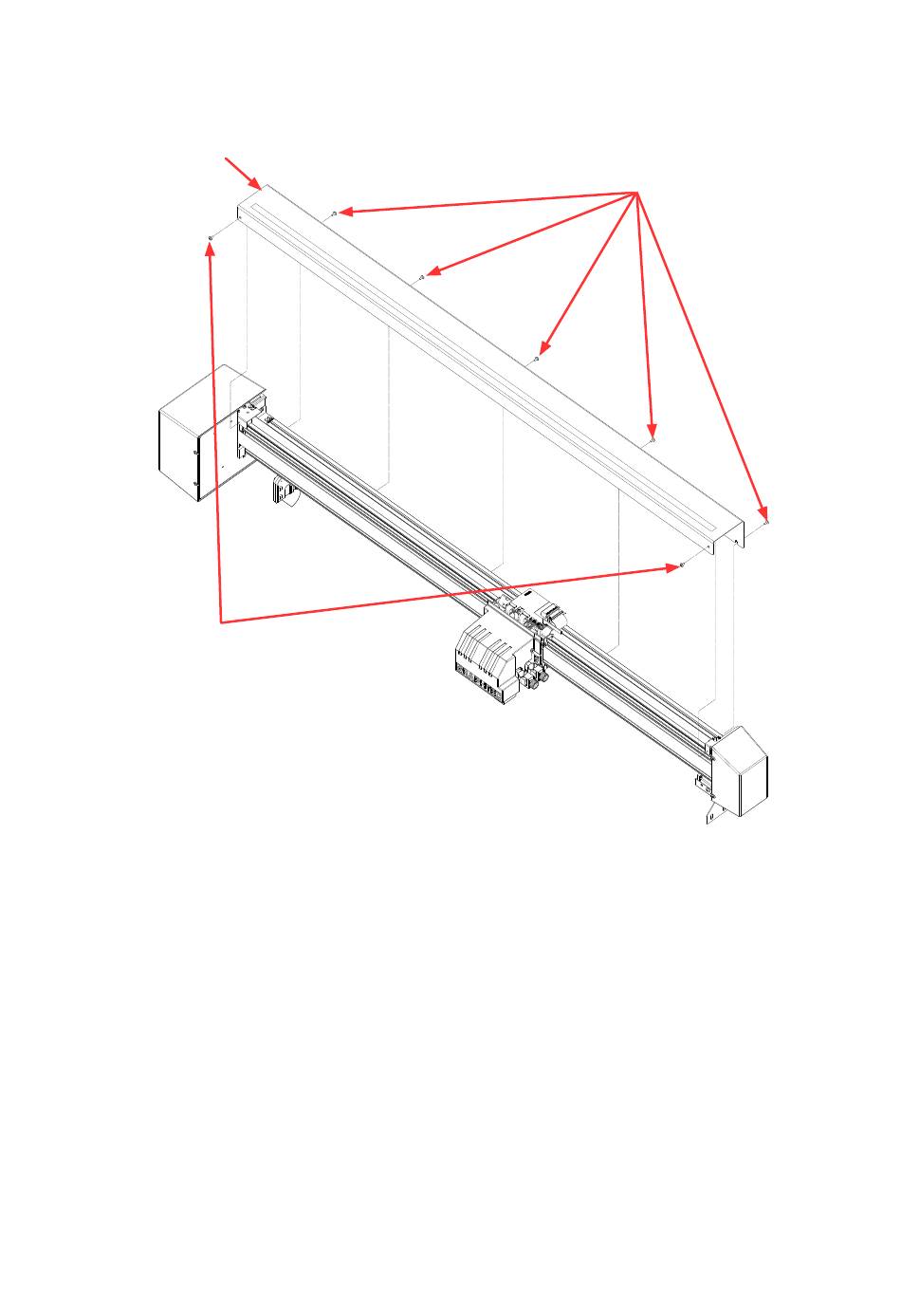

(1) Remove the seven M3L6 binding head screws holding the Y bar cover, and then detach it.
Y bar cover
M3L6 binding head screw
M3L6 binding head screw
How to reinstall the Y Bar Cover
(1) Reattach the Y bar cover in the reverse order in which it was detached.
FCX2000-UM-251-9370 8-10
