8 DISASSEMBLY AND ASSEMBLY
8.3.2

Y Motor Belt

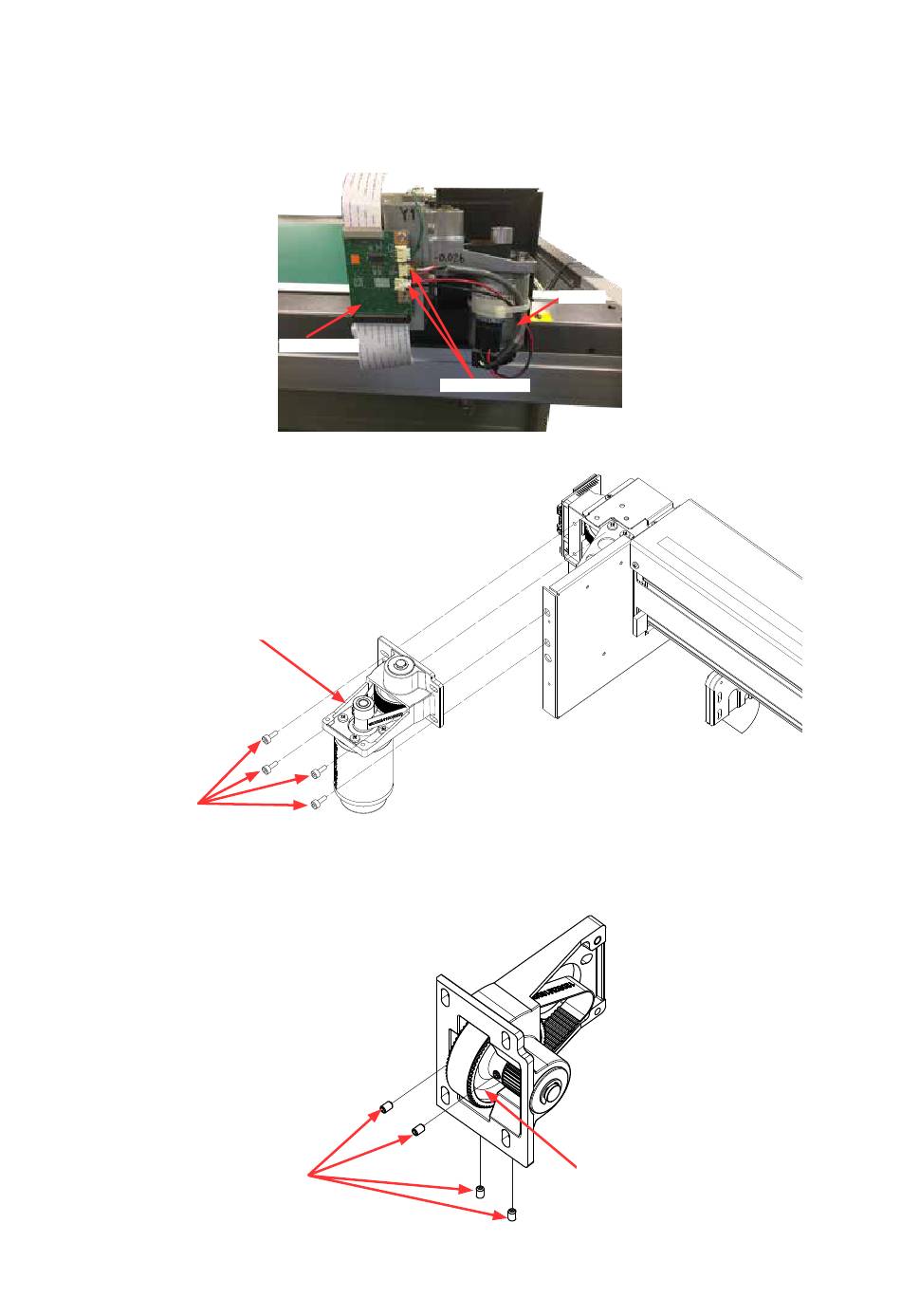

How to detach the X Motor Belt
(1) Detach the rear Y bar end cover (Refer to the section 8.1.16.).
(2) Disconnect the Y motor cables from the Y relay board.
Y motor
Y relay board
Y motor cables
(3) Remove the four M4L8 cap screws holding the Y motor bracket assembly, and then detach it.
Y motor bracket assembly
M4L8 cap screw
(4) Detach the Y motor (Refer to the section 8.3.1.).
(5) Loosen the four M4L5 set screws holding the Y motor drive gear.
Y motor drive gear
M4L5 set screw
FCX2000-UM-251-9370 8-31
