DISASSEMBLY AND ASSEMBLY
8.5.3
Fan
How to detach the Fan

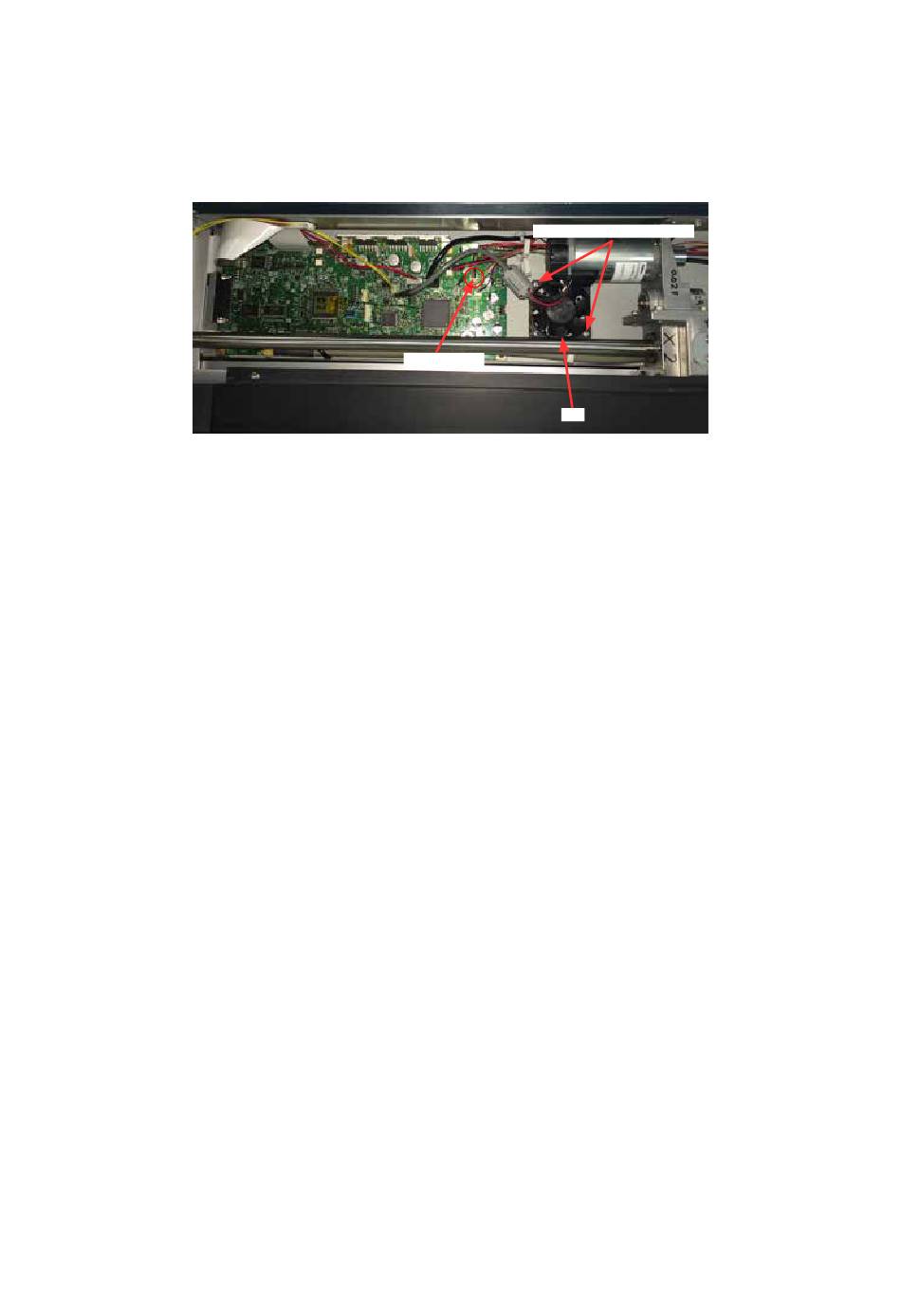

(1) Detach the left top cover (Refer to the section 8.1.6.).
(2) Disconnect the fan cable from the main board.
(3) Remove the two M3L28 binding head screws holding the fan, then detach it.
M3L28 binding head screw
J7: Fan cable
Fan
How to reinstall the Fan
(1) Reattach the fan in the reverse order in which it was detached.
FCX2000-UM-251-9370
8-56
