Front X Belt - GRAPHTEC FCX2000 Service Manual

8.2.3

Front X Belt

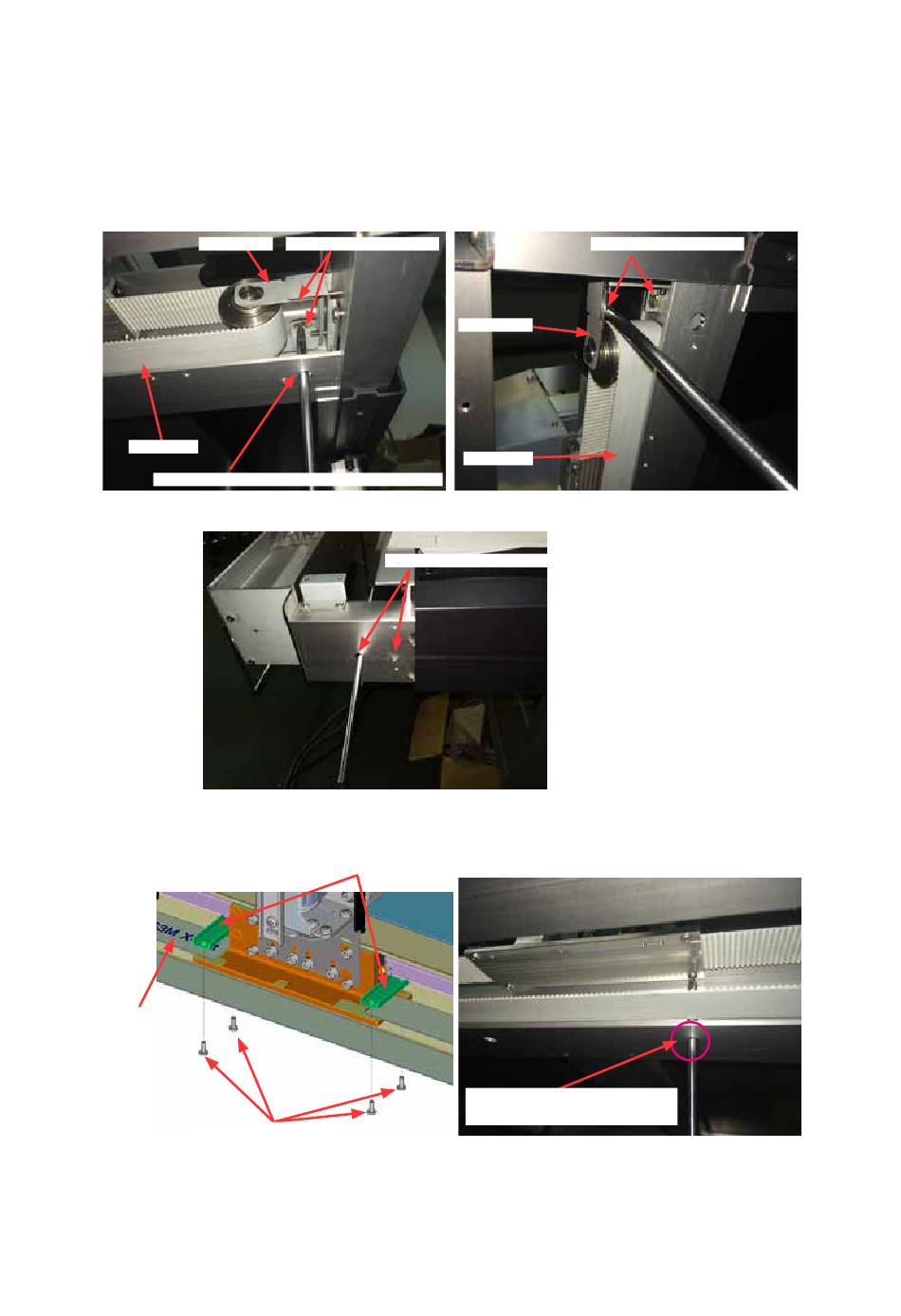

How to detach the Front X Belt
(1) Detach the right front corner cover (Refer to the section 8.1.1.).
(2) Open the front bottom cover (Refer to the section 8.1.9.)
(3) Detach the front top cover (Refer to the section 8.1.10.).
(4) Loosen the two M4L6 binding head screw fixing the idler bracket.
Idler bracket
Front X belt
Use this access hole to loosen the screw of rear.
(5) Loosen the two belt tension adjustment screws to loosen the front X belt tension.
(6) Remove the four M3L8 binding head screws holding the belt stoppers, and then detach the front X belt
from the front X slider.
Front X belt
M3L8 binding head screw
FCX2000-UM-251-9370
M4L6 binding head screw
Use these access holes to loosen the X belt tension.
Belt stopper
8-18
8 DISASSEMBLY AND ASSEMBLY
M4L6 binding head screw
Idler bracket
Front X belt
Use this hole to remove the rear of
M3L8 binding screws.
