8.1.8

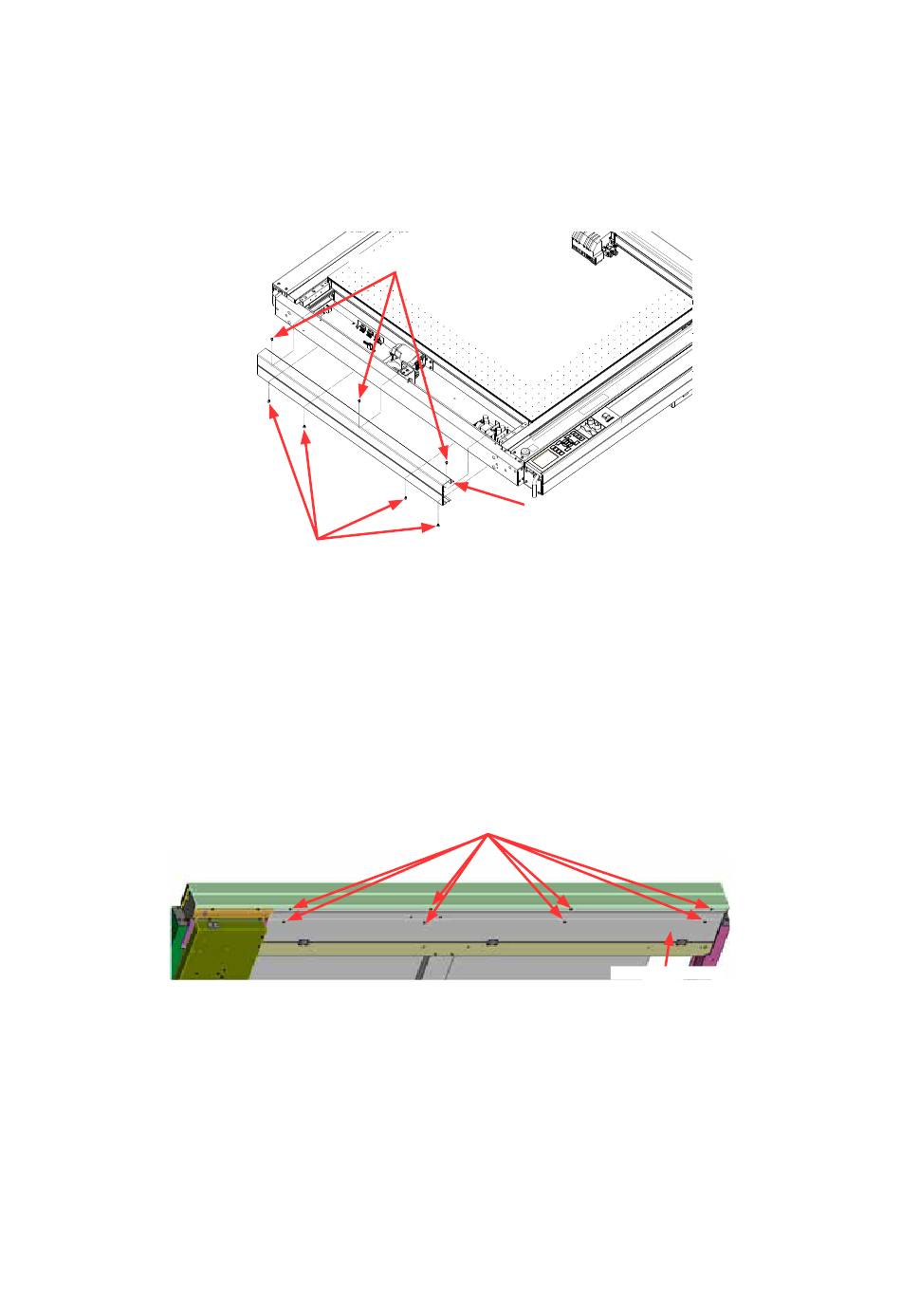

Left Side Cover

How to detach the Left Side Cover
(1) Detach the left front corner cover (Refer to the section 8.1.3.).
(2) Detach the left rear corner cover (Refer to the section 8.1.4.).
(3) Detach the left top cover (Refer to the section 8.1.6.).
(4) Remove the seven M4L8 binding head screws holding the left side cover, and then detach it.
How to reinstall the Left Side Cover
(1) Reattach the left side cover in the reverse order in which it was detached.
8.1.9

How to Open the Front Bottom Cover

(1) Remove the six M4L8 binding head screws holding the front bottom cover for the FCX2000-60.
Remove the eight M4L8 binding head screws holding the front bottom cover for the FCX2000-120.
Remove the ten M4L8 binding head screws holding the front bottom cover for the FCX2000-180.
(2) Open the front bottom cover.
FCX2000-UM-251-9370
M4L8 binding head screw
M4L8 binding head screw
8
Left side cover
M4L8 binding head screw
8-5
DISASSEMBLY AND ASSEMBLY
Front bottom cover
