DISASSEMBLY AND ASSEMBLY
When the block color of Electrostatic Adhesion Panel is replacing.
Peel off the black color of Electrostatic Adhesion Panel from the honeycomb plate.
Preparing
Prepare the following items.
Two pieces of 15 x 1294 mm double sided tape (NITTO No.5000N is recommended.)
Two pieces of 15 x 968 mm double sided tape (NITTO No.5000N is recommended.)
U622630250 ES Panel 120 BLK
How to remove the green color of Electrostatic Adhesion Panel
(1) Detach the right top cover (Refer to the section 8.1.5.).
(2) Move the Y bar to the left end.
(3) Disconnect the flexible cable of electrostatic adhesion panel from the electrostatic relay board.

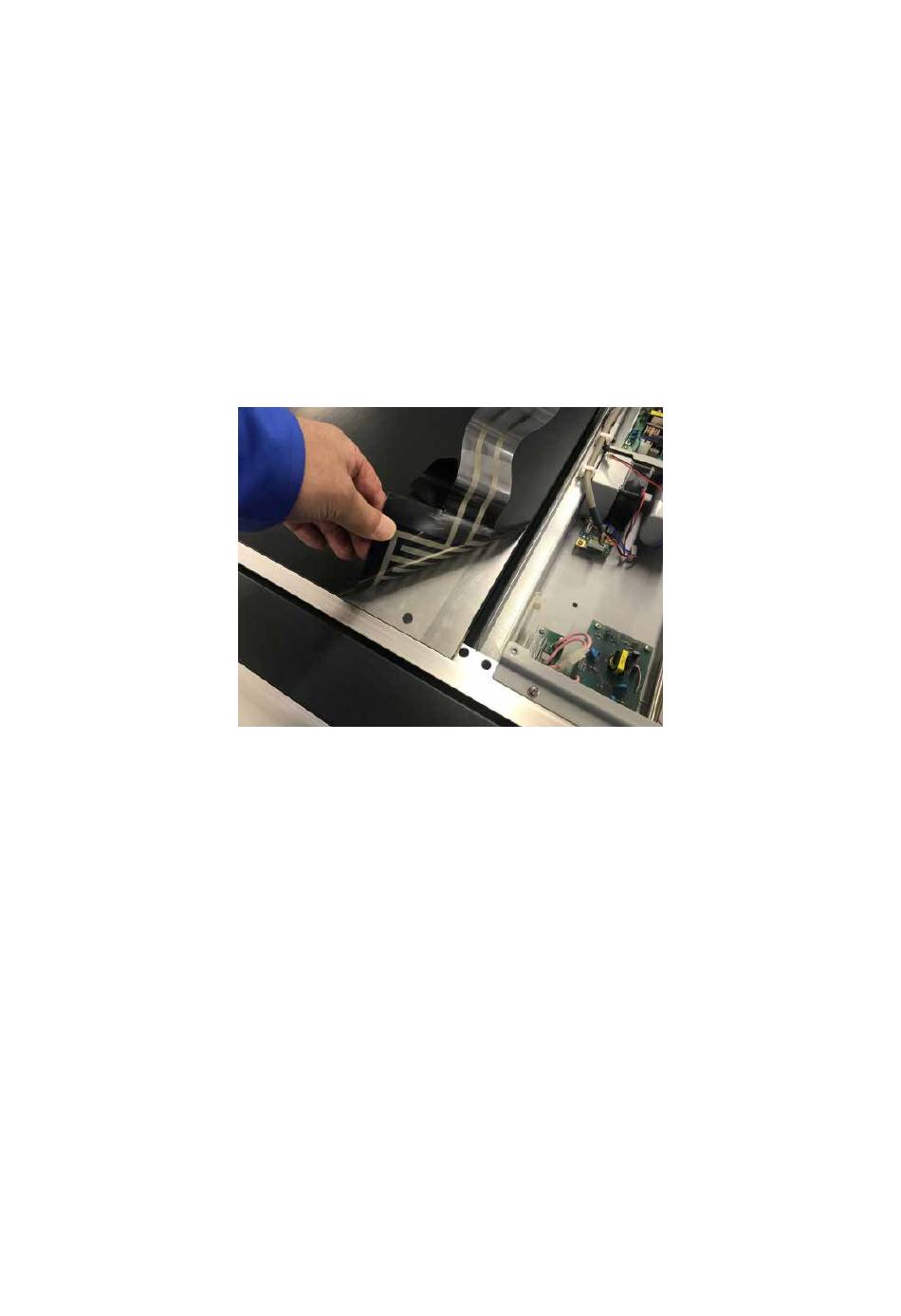

(4) Gently peel off the black color of electrostatic adhesion panel from near the connecting area.
