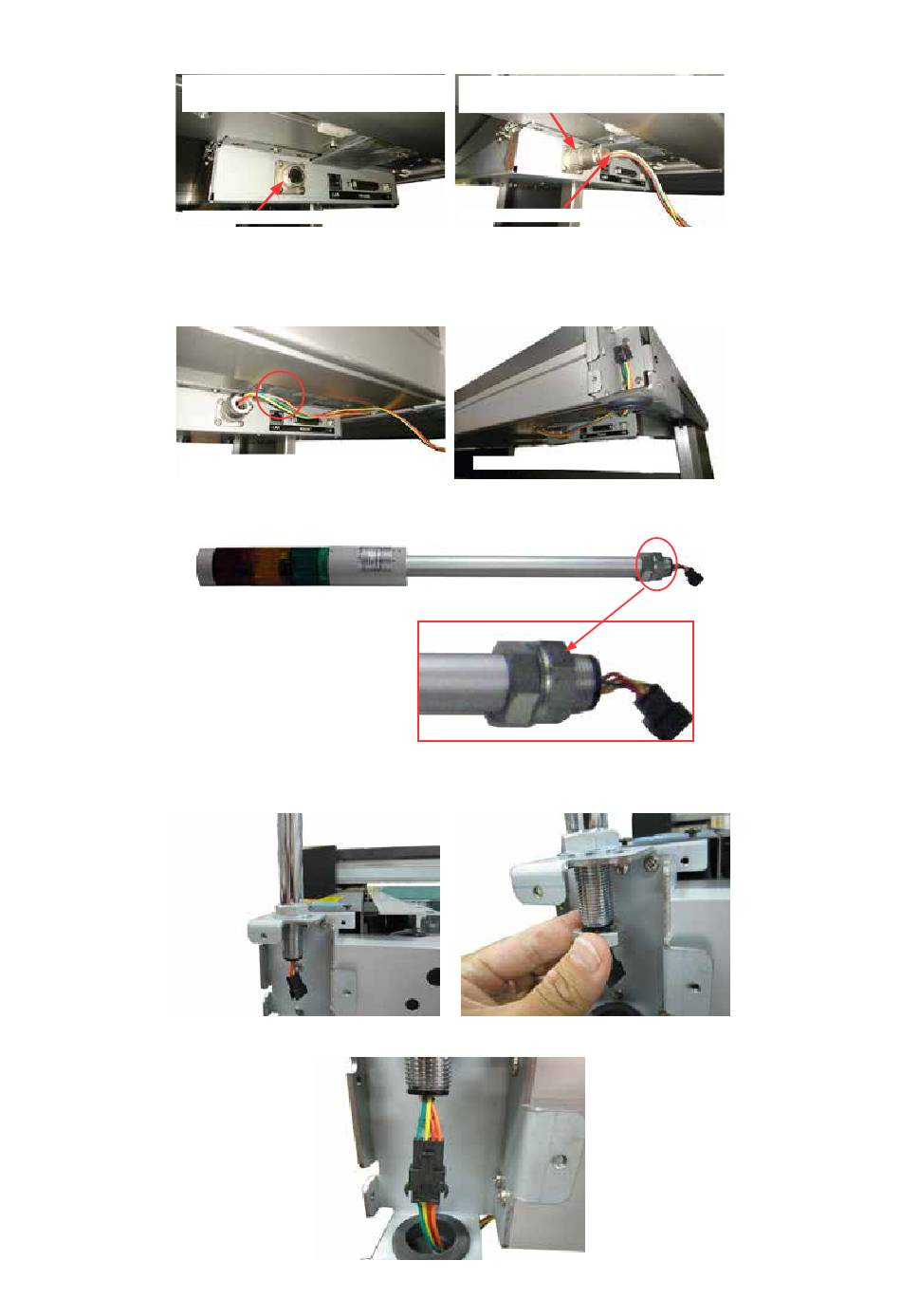

(11) Connect the warning light cable CA403114B to the warning light connector.
Connect the warning light cable CA403114B
to the warning light connector.
Warning light connector.
(12) Tie the warning light cable CA403114B by using the two cable ties and the two cable tie bases, and
then put cable to the bottom of FCX2000.
And then insert the cable to the rubber cap of Rear Left Frame Bracket.
When the cable is putting to the bottom of
FCX2000, the cable should not hang down.
(13) Remove the nut from the Warning Light assembly.
(14) Insert the Warning Light to the Warning Light Bracket as shown in the picture below, and then fix the
Warning Light by using a Nut.
(15) Connect the Warning Light cable as shown in the picture below.
FCX2000-UM-251-9370
To fasten the connector, turn this ring to
clockwise.
Warning light cable CA403114B
Insert the cable to the rubber cap.
Remove the nut from the
warning light assembly.
