8.1.11 Rear Top Cover

How to detach the Rear Top Cover

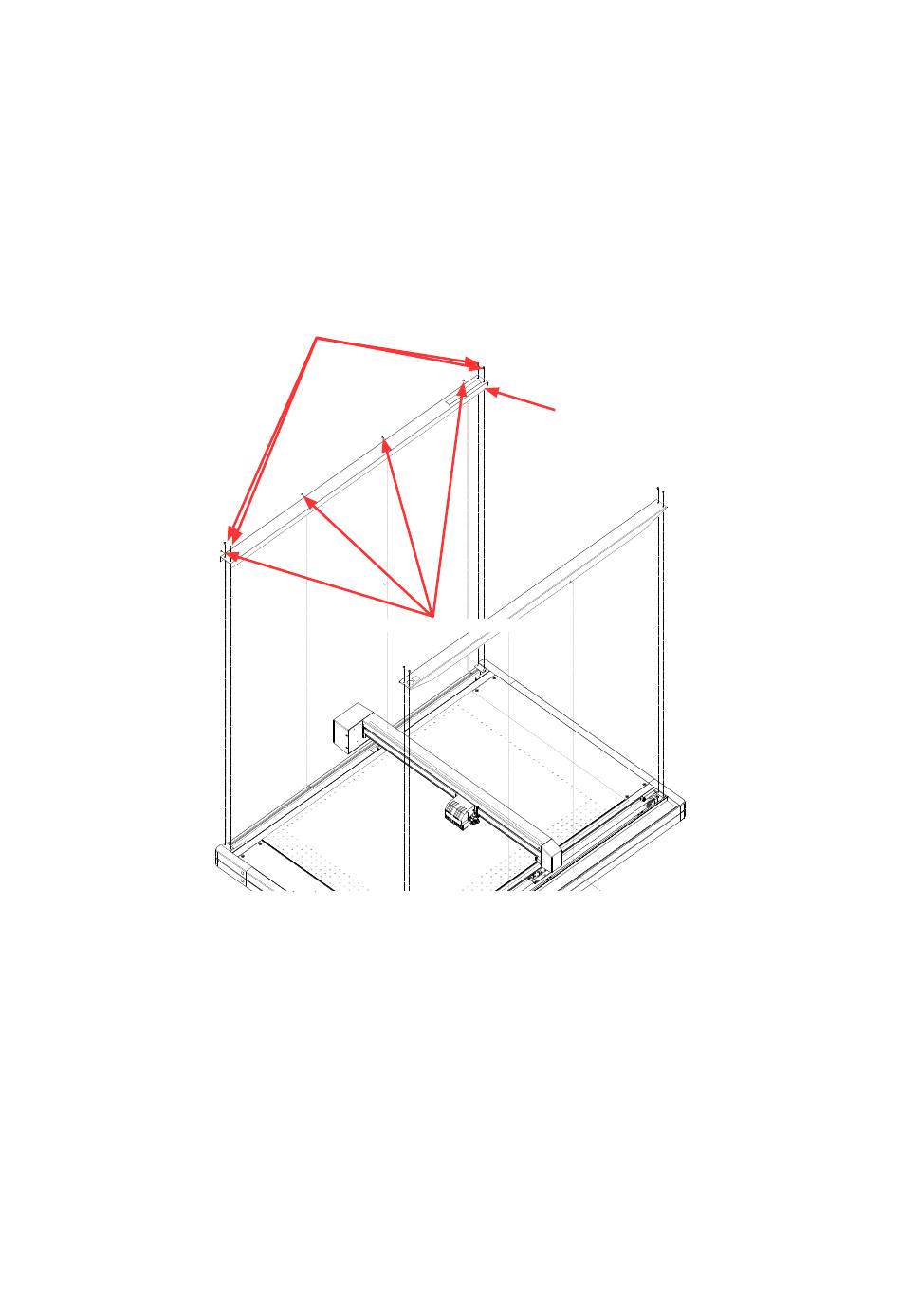

(1) Remove the four M4L8 binding head screws holding the rear top cover.
(2) Remove the three M3L6 binding head screws holding the front top cover at rear part for the FCX2000-
60, and then detach it.
Remove the four M3L6 binding head screws holding the front top cover at rear part for the FCX2000-
120, and then detach it.
Remove the five M3L6 binding head screws holding the front top cover at rear part for the FCX2000-
180, and then detach it.
How to reinstall the Rear Top Cover
(1) Reattach the rear top cover in the reverse order in which it was detached.
FCX2000-UM-251-9370
M4L8 binding head screw
M3L6 binding head screw
8 DISASSEMBLY AND ASSEMBLY
Rear top cover
8-7
