8 DISASSEMBLY AND ASSEMBLY
8.3.4

Y Relay Board

How to detach the Y Home Sensor
(1) Detach the rear Y bar end cover (Refer to the section 8.1.16.).

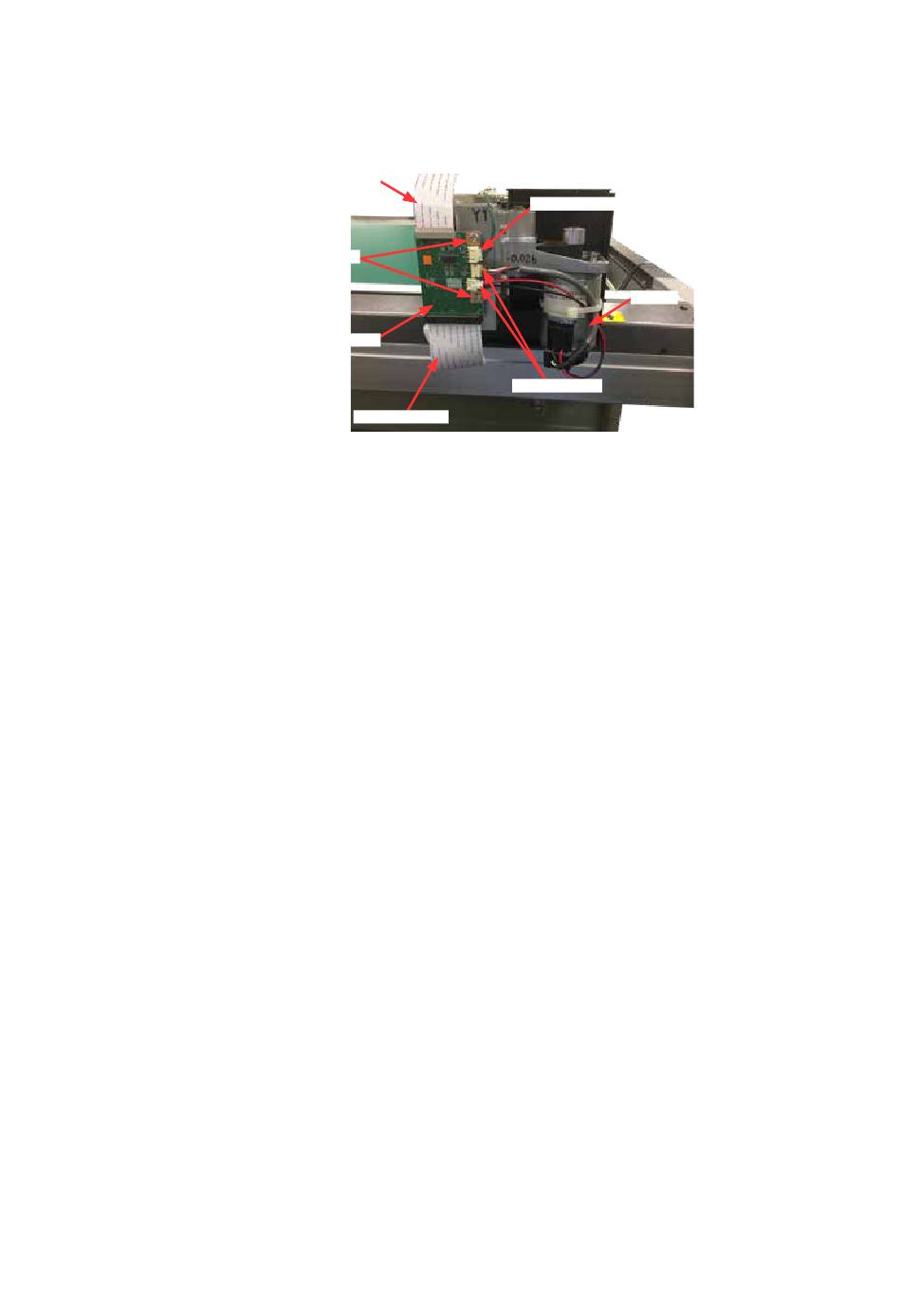

(2) Disconnect all cables from the Y relay board.
Y flexible cable
Y home sensor cable
M3L6 binding head screw
Y motor
Y relay board
Y motor cables
X flexible cable
(3) Remove the two M3L6 binding head screws holding the Y relay board, and then detach it.
How to reinstall the Y Relay Board
(1) Reattach the Y relay board in the reverse order in which it was detached.
FCX2000-UM-251-9370 8-34
