13 Target electrical component for WEEE instruction

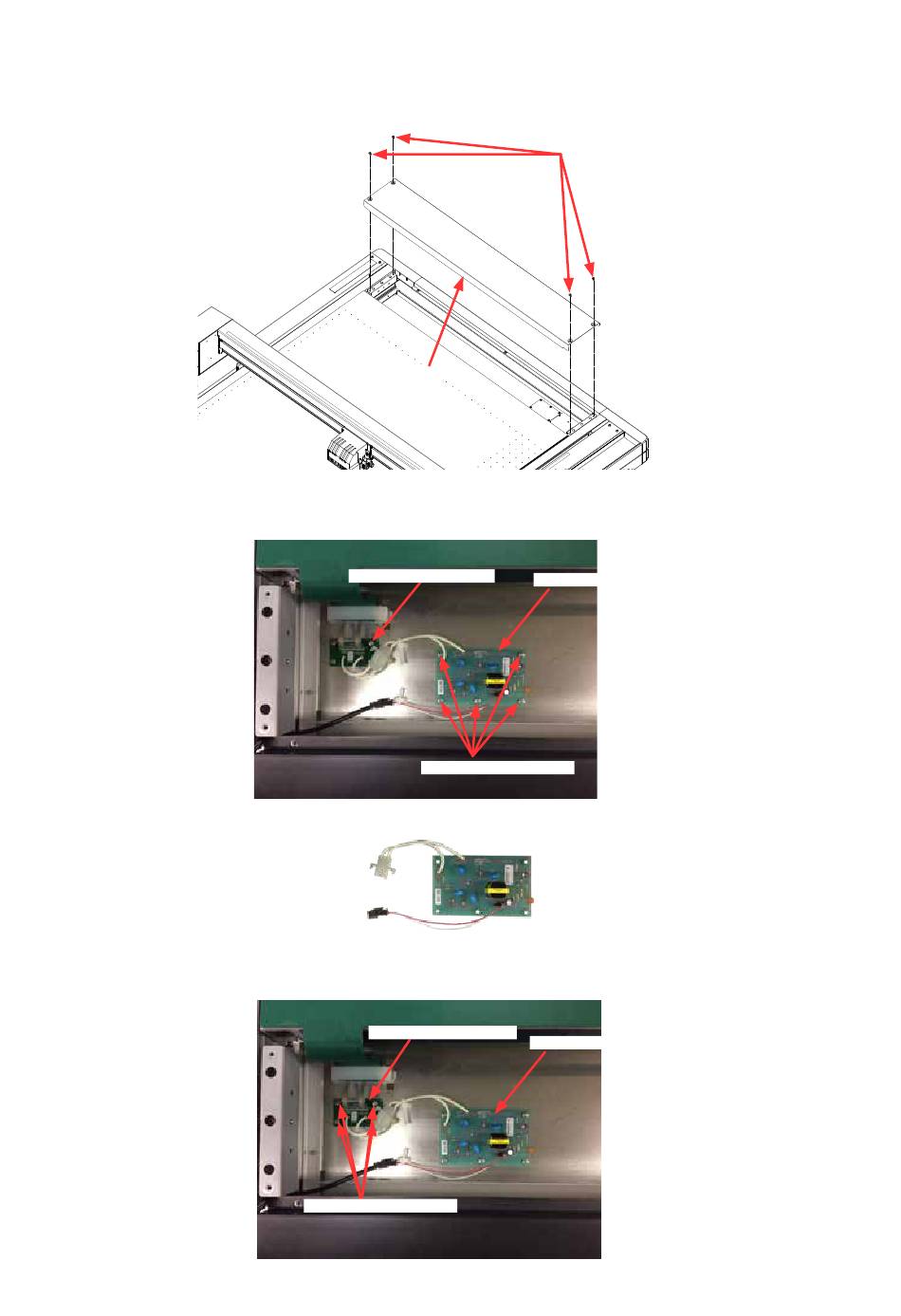

• Removing (G) Electrostatics High Voltage Board (H) Electrostatics Relay Board
(FCX2000-120ES only)
(1) Remove the four M4L8 binding head screws holding the right top cover, and then detach it.
M4L8 binding head screw
Right top cover
(2) Disconnect the high voltage board cable from the relay connectors.
(3) Remove the four M3L6 binding head screws holding the high voltage board.
Electrostatic relay board
High voltage board
M3L6 binding head screw
(4) Detach the high voltage board.
(5) Disconnect the flexible cable of electrostatic adhesion panel from the electrostatic relay board.
(6) Remove the four M3L6 binding head screws holding the electrostatic relay board.
Electrostatic relay board
High voltage board
M3L6 binding head screw
FCX2000-UM-251-9370
13-14
