8.4.6

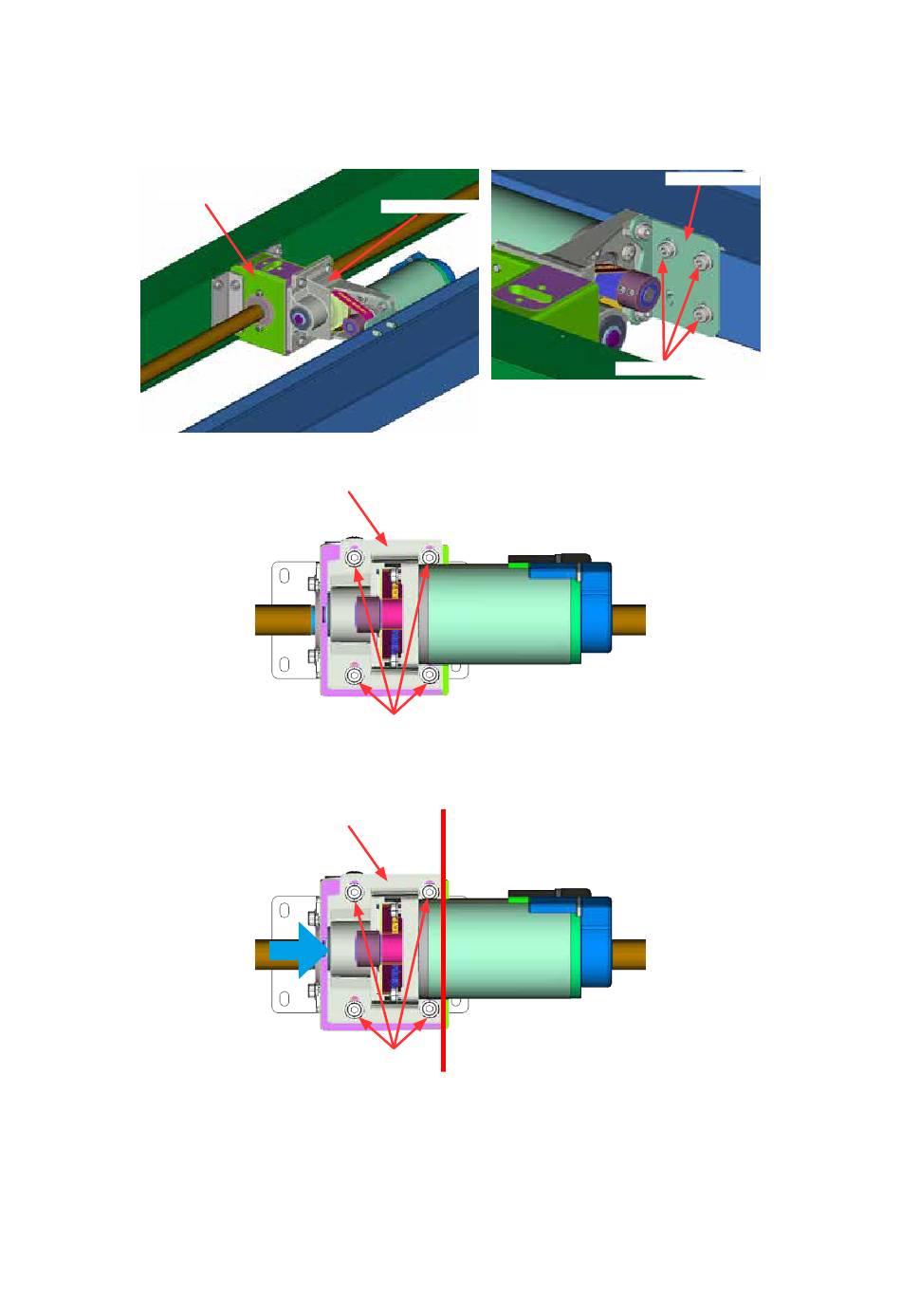

Adjusting the Play of X Motor Drive Gear

Adjust the play of motor drive gear when the Motor Gear box was removed from the drive gear box.
(1) Loosen the three M4L8 Cap screws holding the X motor bracket after the X motor gear box was
installed.
X drive gear box
(2) Loosen the four M4L8 Cap screws holding the X motor gear box.
(3) Tighten the four M4L8 Cap screws holding the X motor gar box while pushing to the blue arrow direction.
(4) And confirm the X motor gear box is installing vertically on the X drive gear box.
FCX2000-UM-251-9370
X motor gear box
X motor gear box
M4L8 cap screw
X motor gear box
M4L8 cap screw
8 DISASSEMBLY AND ASSEMBLY
M4L8 cap screw
8-51
X motor bracket
