GRAPHTEC FCX2000 Service Manual page 183

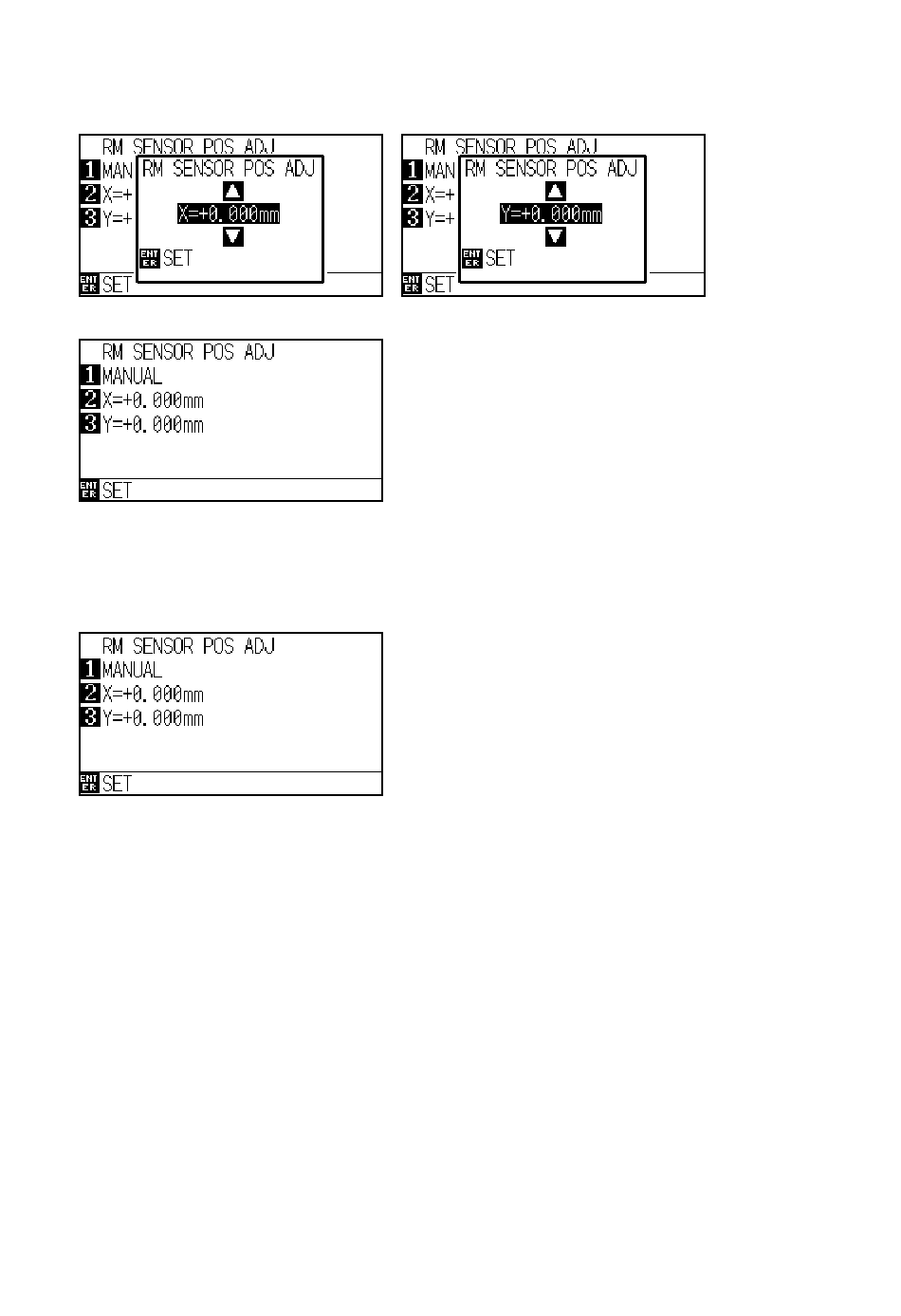

Press the F3 (X=) or F4 (Y=) to input the measured adjustment values.
Input the measured adjustment value by using the Up arrow key or Down arrow key with the following
menu.
Press the ENTER key to store the value.
(15) Verify that the plotted cross mark line is located at the center of the printed cross mark line.
Repeat steps (9) and (10) to verify it.
(16) Record the adjusted values to the factory adjustment values label when the adjustment values are
changed.
(17) Press the ENTER key in the following manu to exit the RM sensor offset adjustment.
(18) Turn off the plotter.
