8 DISASSEMBLY AND ASSEMBLY
8.3.9

Y Belt

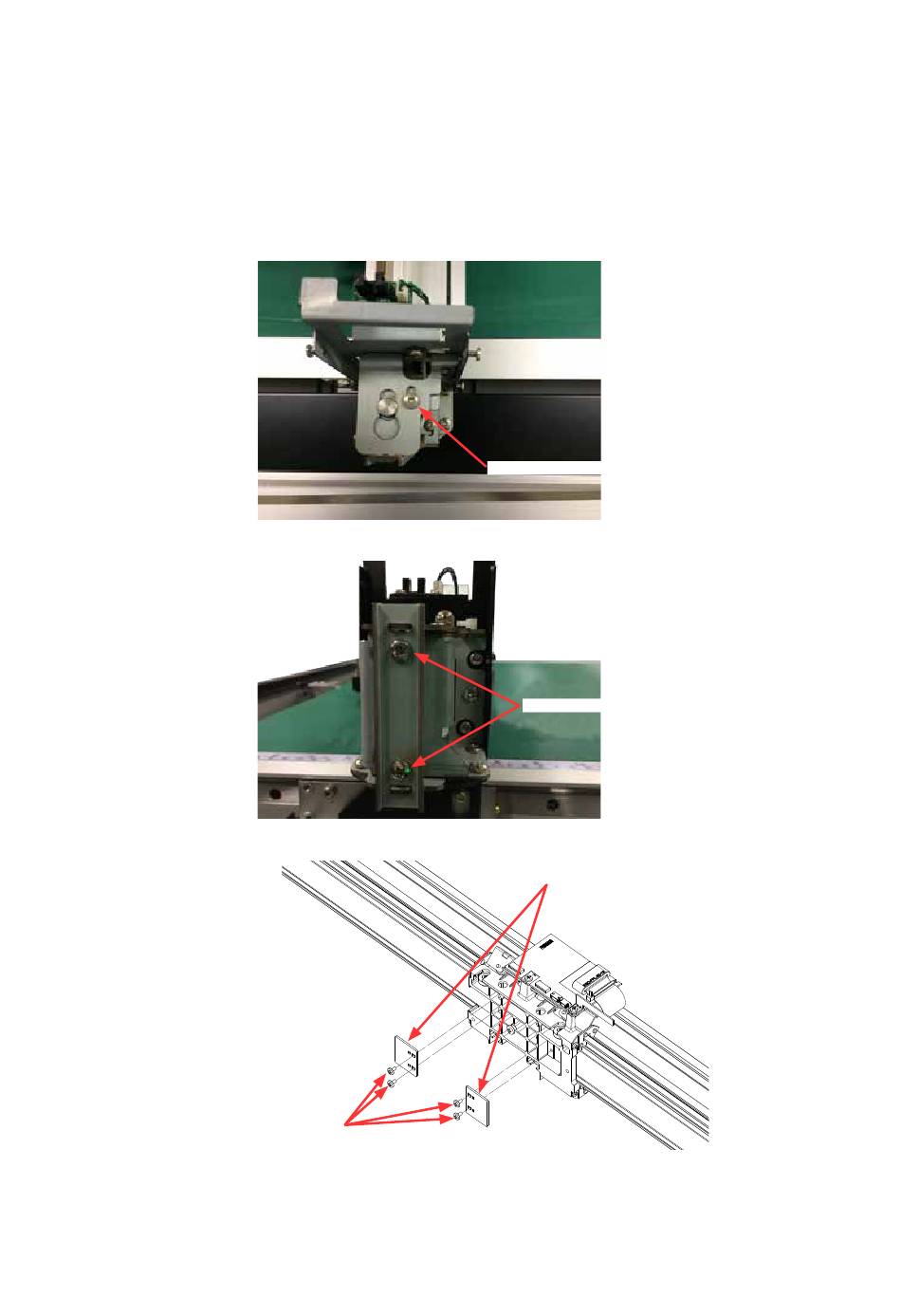

How to detach the Y Belt
(1) Detach the Y bar cover (Refer to the section 8.1.13.).
(2) Detach the front Y bar end cover (Refer to the section 8.1.15.).
(3) Detach the rear Y bar end cover (Refer to the section 8.1.16.).
(4) Detach the pen block (Refer to the section 8.3.6.).
(5) Loosen the Y belt tension fixing screw at front end of Y bar.
Y belt tension fixing screw
(6) Loosen the two belt tension screws to loose the Y belt tension at front end of Y bar.
Y belt tension screw
(7) Remove the four M3L5 binding head screws holding the Y belt stoppers, and then detach it.
Y belt stopper
M3L5 binding head screw
(8) Take out the Y belt from the Y bar.
FCX2000-UM-251-9370 8-41
