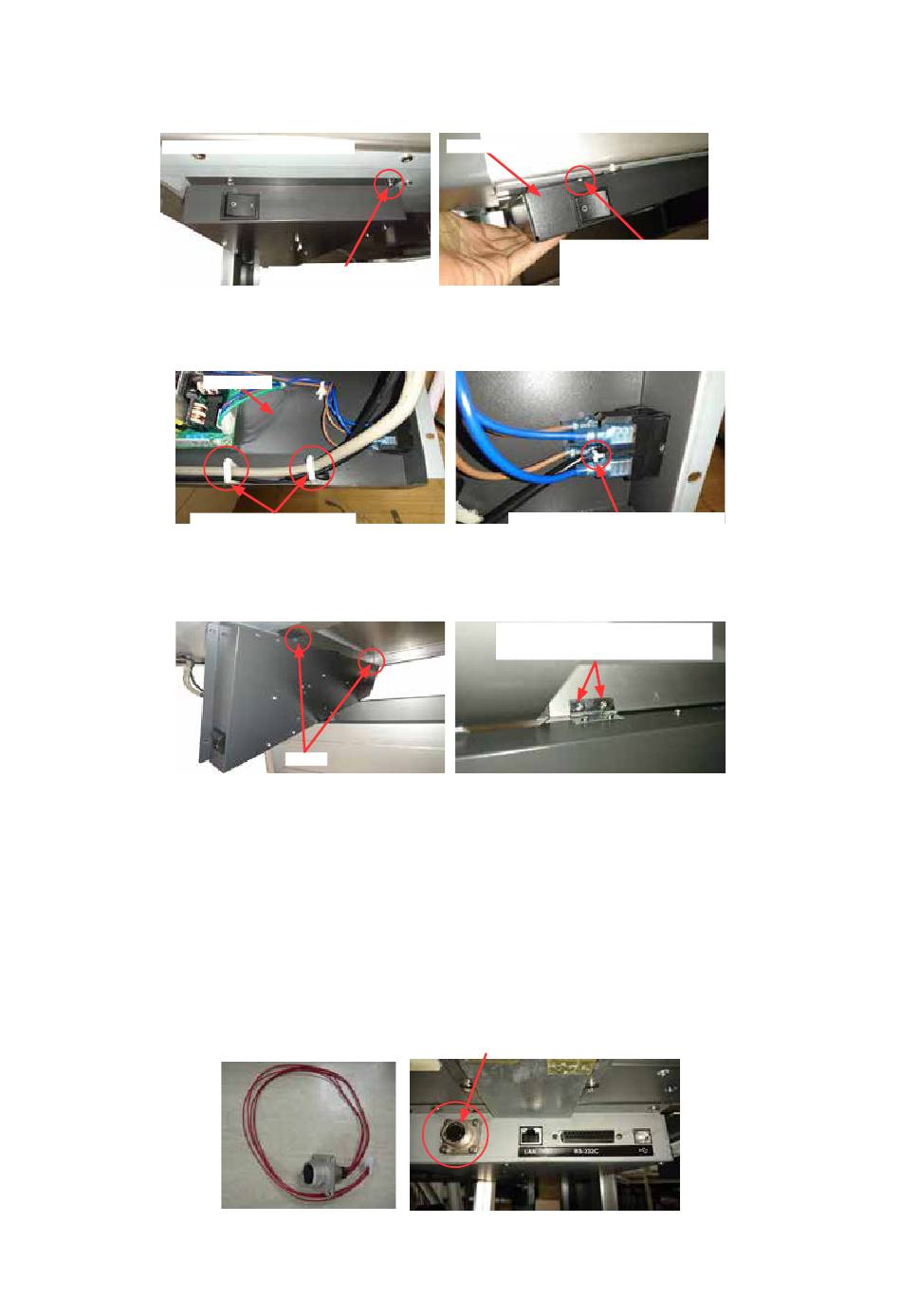

(15) Remove the one M4L8 binding head screws holding the power switch side of control box.
And then remove the one M4L8 binding screws near the power switch while holding the control box with
your hand as shown in the picture below.
Power switch side of control box
(16) Open the control box, then remove the two cable ties from the control box.
And then disconnect the Emergency Stop Switch cable from the power switch.
Control box
Remove the two cable ties
from the control box.
(17) Remove the four M3L6 binding head screws holding the two hinges, and then detach the control box.
When the last M3L6 binding head screw is removing, hold the control box with your hand.
(18) After detach the control box from the FCX2000, remove all of parts from the control box, and then install
all of parts to the optional control box of OPH-A42.
(19) Install the optional control box of OPH-A42 to the FCX2000.
Connect all cable in the reverse order in which they were disconnect in this step.
Reinstall all parts in the reverse order in which they were detached in this step.
(20) Install the connector of warning light (CA403110G) to the control box.
Attach the connector of warning light (CA403110G) to the control box, and then tighten it with the four
M3L6 binding head screws.
FCX2000-UM-251-9370
M4L8 binding head screw
Hinges
Connector of warning light
(CA403110G)
Control box
Remove this M4L8 binding
head screw while holding the
control box with your hand.
Disconnect the Emergency Stop
Switch cable from the power switch.
Remove these M3L6 binding head
screws from the hinges.
Install the connector of warning light to here
with the four M3L6 binding head screws.
