Flexible Cable - GRAPHTEC FCX2000 Service Manual

8 DISASSEMBLY AND ASSEMBLY
8.2.6 X Flexible Cable
How to detach the X Flexible Cable
(1) Detach the left top cover (Refer to the section 8.1.6.)
(2) Detach the rear top cover (Refer to the section 8.1.11.).
(3) Detach the rear Y bar end cover (Refer to the section 8.1.16.).

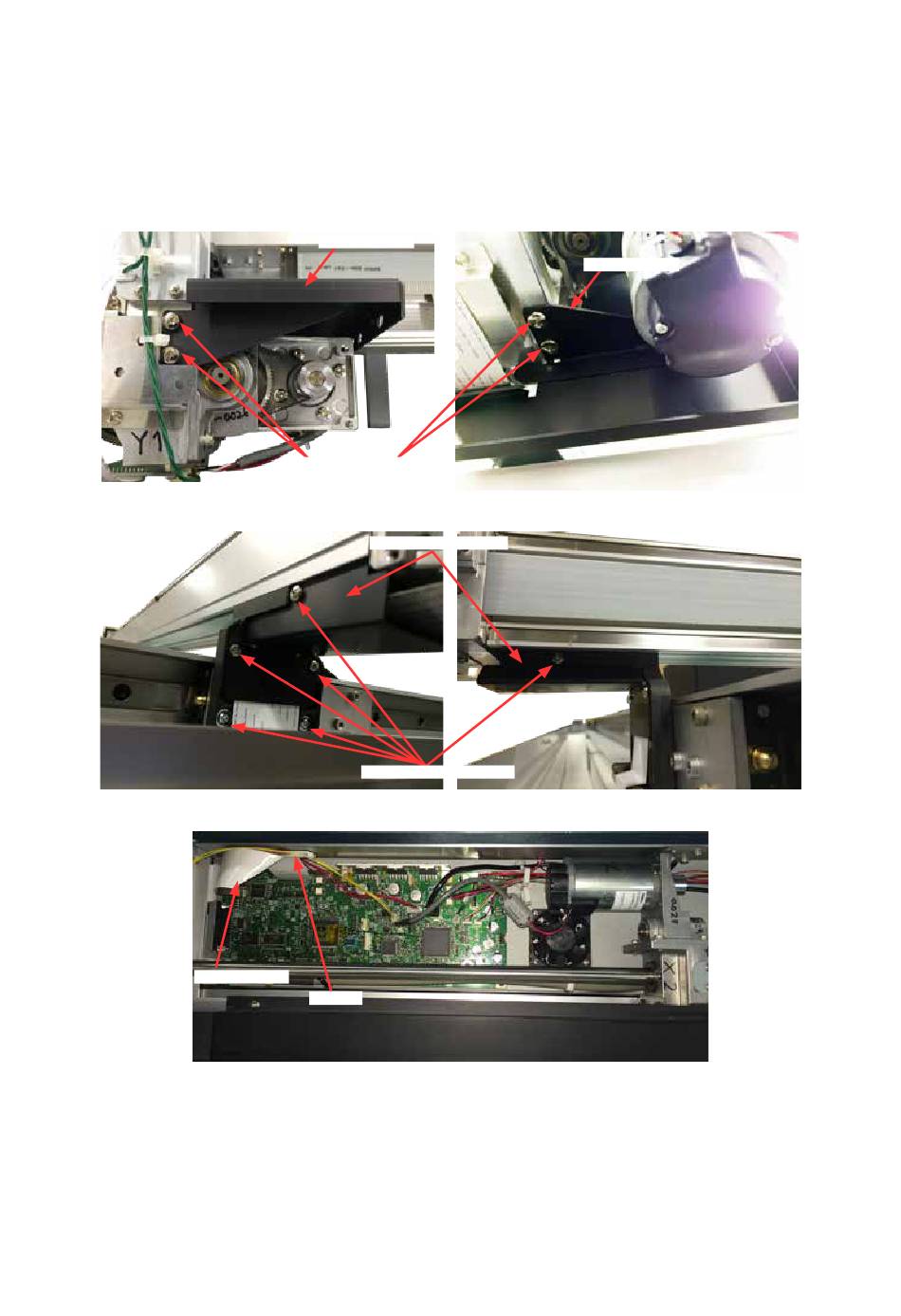

(4) Remove the four M4L6 binding head screws holding the Y bar end plate, and then detach it.
Y rear end plate
Y rear end plate
M4L6 binding head screw
(5) Remove the six M3L6 binding head screws holding the X Flexible Cable Bracket, and then detach it.
X flexible cable bracket
M3L6 binding head screw
(6) Disconnect the X Flexible Cable from the main board.
X Flexible cable
Cable tie
(7) Release the X flexible cable from the cable tie.
FCX2000-UM-251-9370 8-25
