Installing the main unit onto the stand

Take out the main unit from the main unit box, and then put the main unit onto the stand.
2.4.1

Take out the main unit from the box

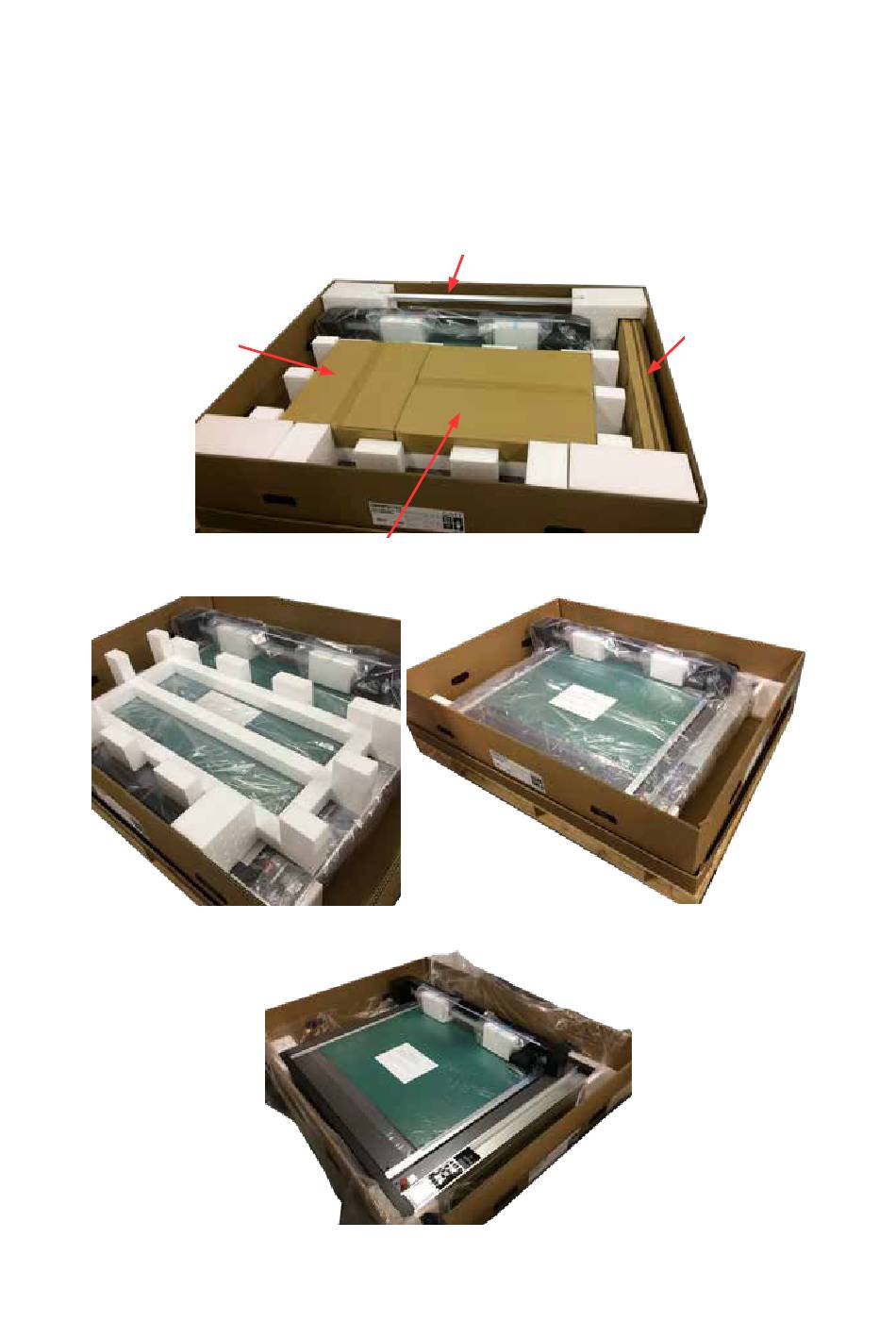

(1) Take out the accessory box and the blower stand box (Empty box for the ES model) and the roll media
hanger shaft from the main unit box.
(The center bars for stand are took out already.)
Blower stand box
(Empty box for the
ES model.)
(2) Take out the packing materials from the main unit box.
(3) Open the plastic cover which is covering the main unit.
Roll media hanger shaft
Accessory box
Center bars of
stand boxes
