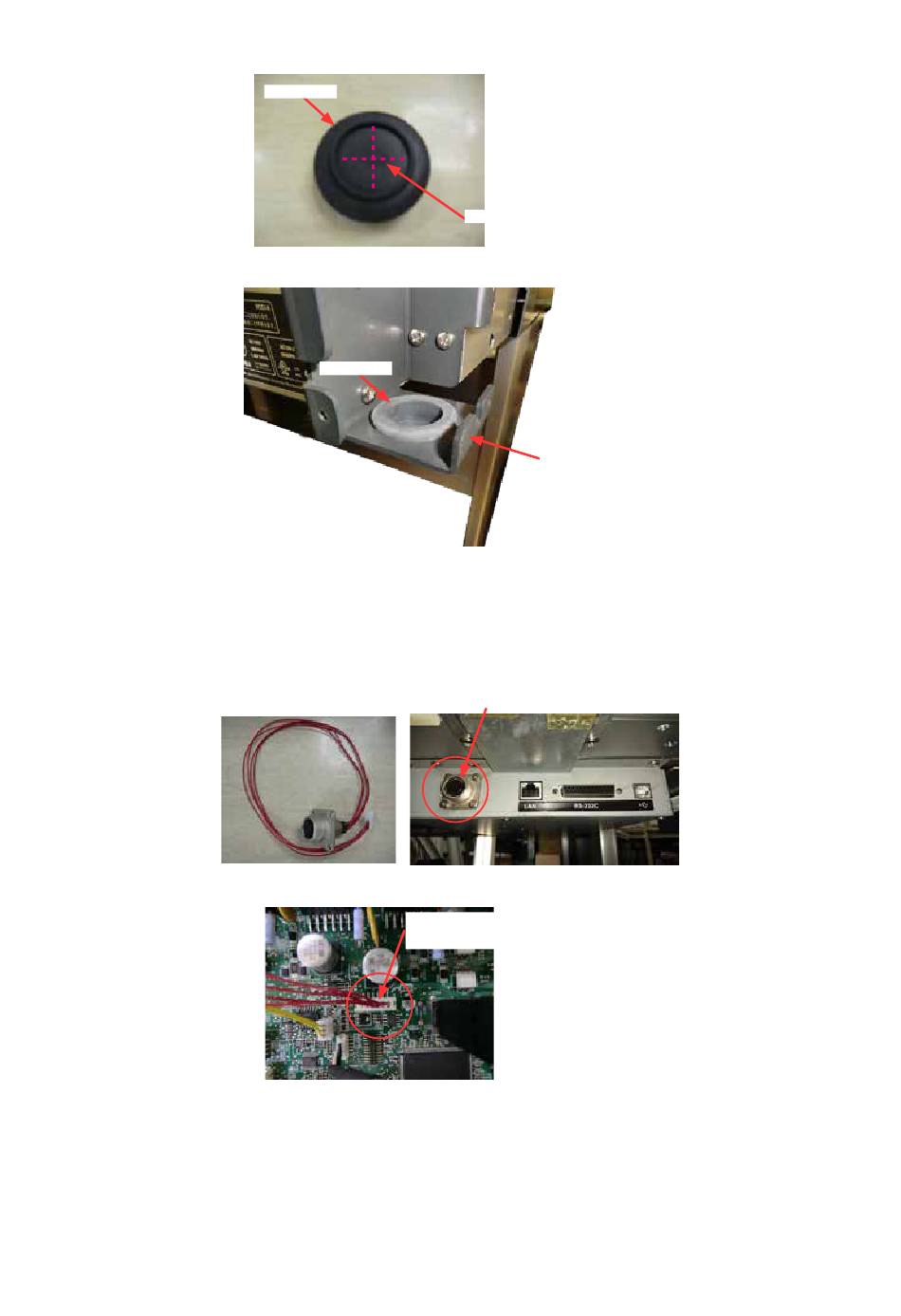

(7) Cut the rubber cap (C-30-SG-30A-EP-UL) as shown in the picture below by using knife.
(8) Install the rubber cap (C-30-SG-30A-EP-UL) to the FRAME_ANGLE>_P.
(9) Install the connector of warning light (CA403110G) to the control box.
Remove the hidden panel of connector of warning light from the control box.
Attach the connector of warning light (CA403110G) to the control box, and then tighten it with the four
M3L6 binding head screws.
(10) Connect the connector of warning light (CA403110G) to the main board (J8).
FCX2000-UM-251-9370
Rubber Cap
Rubber Cap
Connector of warning light
(CA403110G)
Cut the rubber cap on a cross.
FRAME_ANGLE_P
Install the connector of warning light to here
with the four M3L6 binding head screws.
Connect the connector of warning light
to here (J8 on the main board).
