4. OPERATIONS
Adjustment for Half Cutting

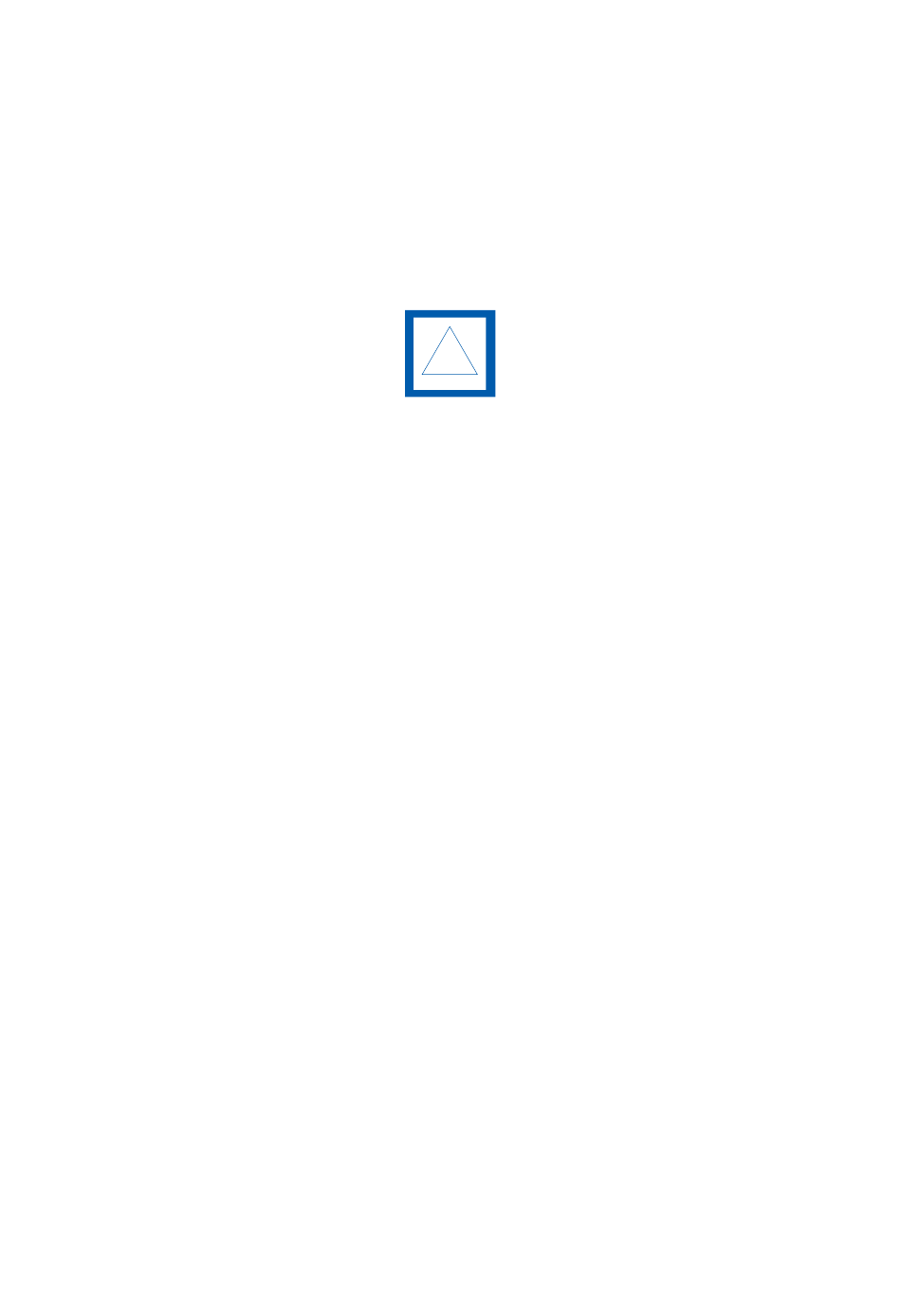

Peel off the triangle area, and adjust so it cuts slightly into the backing sheet.
If the backing sheet has been cut through, either the FORCE setting is too high or the cutter-blade length is
extended too much.
If the backing sheet does not show traces of the cutter blade, either the FORCE setting is too low or the
cutter blade length is not sufficiently extended.
Adjusting the Blade Length or adjust the Force.
The backing sheet shows only a few traces of the cutter blade, if the FORCE setting and the cutter blade
Length adjusted correctly.
Adjustment for Cutting Out
Adjust so the media is completely cut out.
If the media is not completely cut, either the FORCE setting is too low or the cutter blade length is not
sufficiently extended.
Adjustment When Using Plotting Pen
Adjust the FORCE so there will be no faint lines. To prolong the pen life, set the FORCE to the lowest setting
without any faint lines.
FCX2000-UM-251-9730 4-26
