DISASSEMBLY AND ASSEMBLY

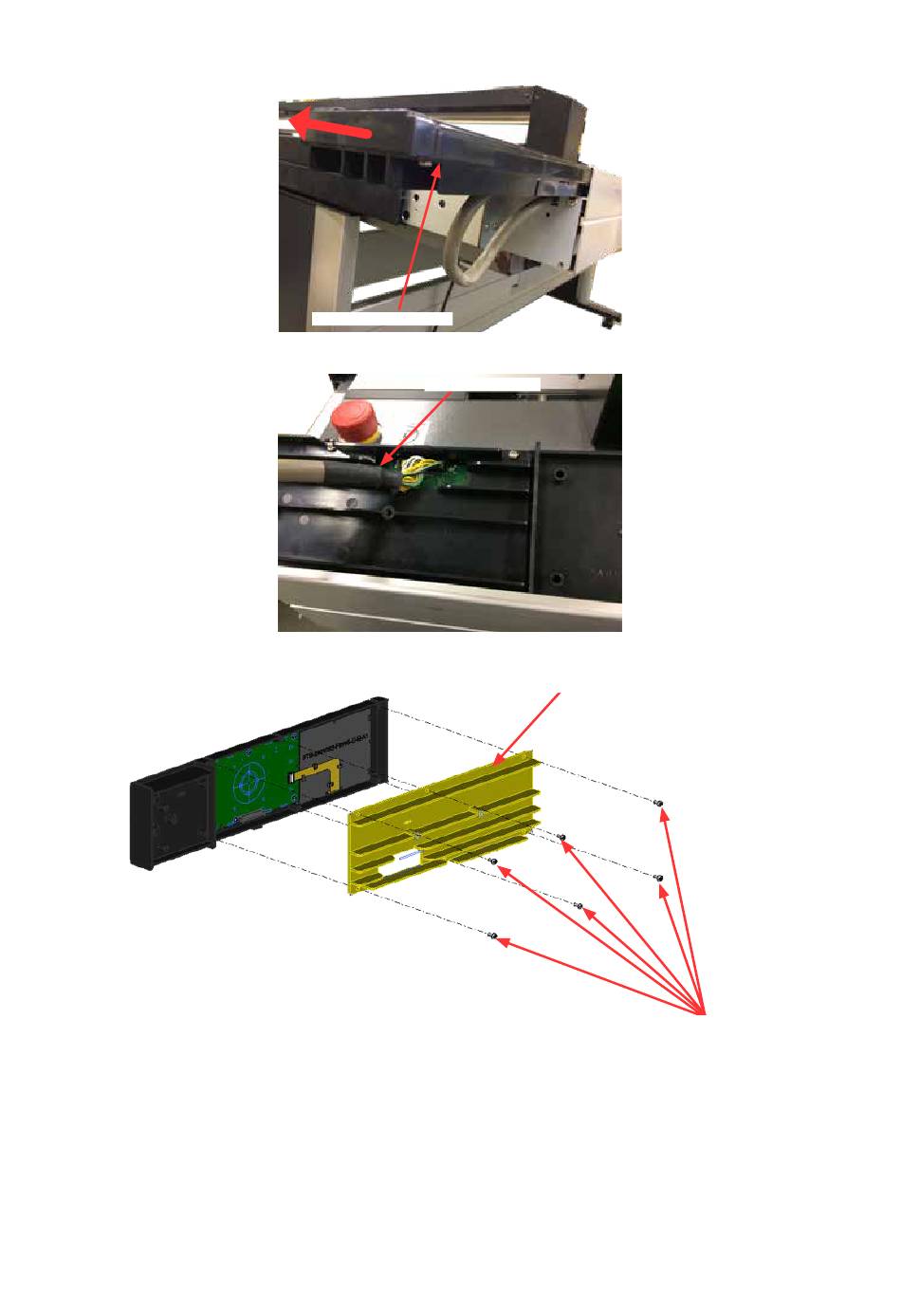

(5) Pull out the control panel assembly from the tray during pushing the control panel cable.
Control panel assembly
(6) Disconnect the control panel cable from the control panel board.
Control panel cable
(7) Remove the six M3L6 self-tapping screws holding the control panel bottom cover, and the detach it.
Control panel bottom cover
M3L6 self-tapping screw
FCX2000-UM-251-9370
