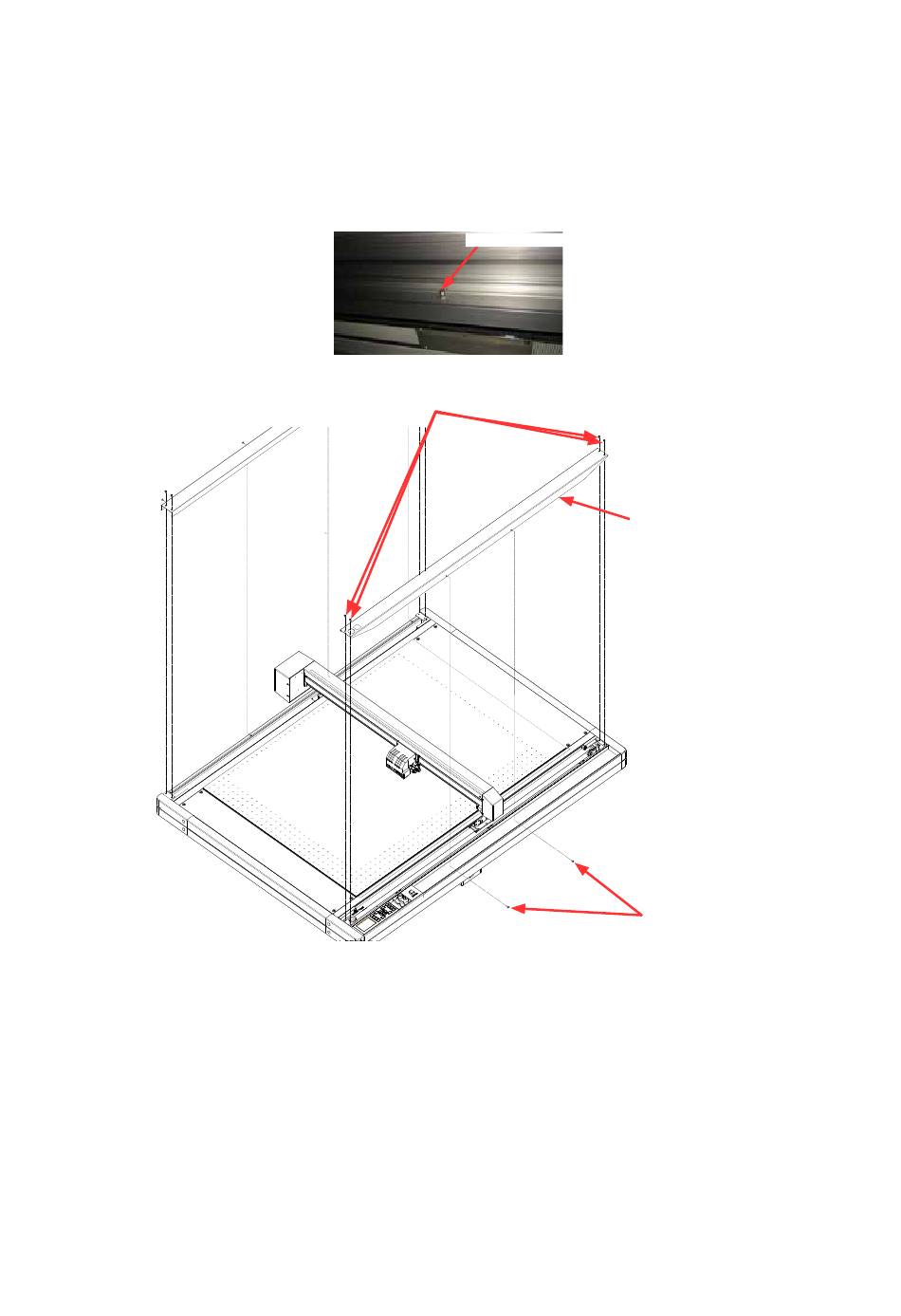

8.1.10 Front Top Cover

How to detach the Front Top Cover
(1) Open the front bottom cover (Refer to the section 8.1.9.).
(2) Remove the M4L6 Cap screws holding the front top cover for the FCX2000-60.
Remove the two M4L6 Cap screws holding the front top cover for the FCX2000-120.
Remove the three M4L6 Cap screws holding the front top cover for the FCX2000-180.
(3) Remove the four M4L8 binding head screws holding the front top cover.
How to reinstall the Front Top Cover
(1) Reattach the front top cover in the reverse order in which it was detached.
FCX2000-UM-251-9370
M4L6 Cap screw
M4L8 binding head screw
8-6
8 DISASSEMBLY AND ASSEMBLY
Front top cover
M4L6 Cap screw
