4.3

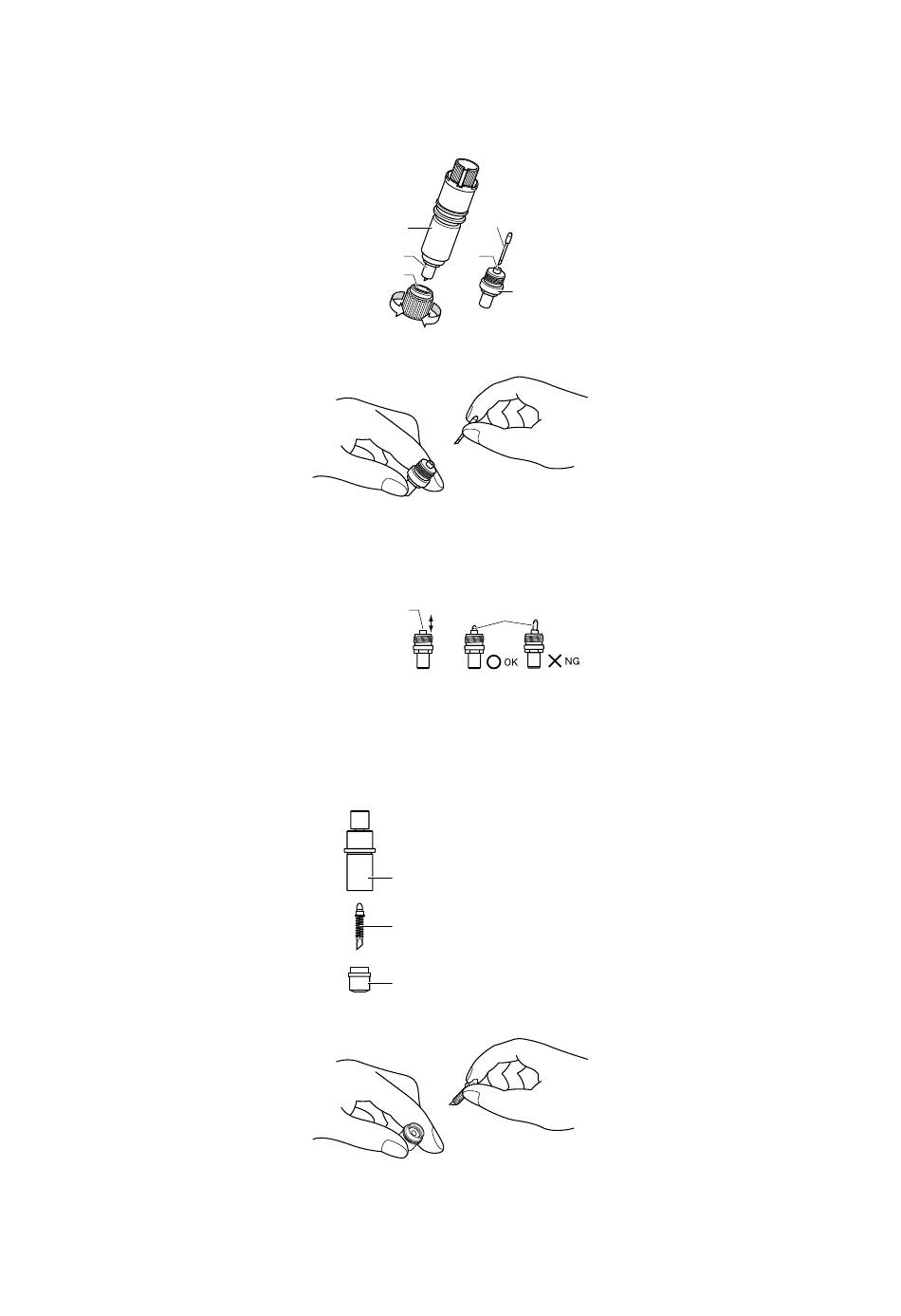

Replacing the Cutter Blade

PHP33-CB09-HS/PHP33-CB15-HS
(1) Remove the chuck from the plunger by using the plunger-cap
(2) Replace the blade of chuck.
Install the blade to the chuck straightly when the blade is installing to the chuck.
Push the blade hole part several times when the blade was not able to install to the chuck straightly.
And then install the blade to the chuck completely.
(3) Install the chuck to the plunger after the blade was replaced.
Then tighten the chuck.
PHP33-CB09-HS/PHP33-CB15-HS
(1) Turn the chuck counterclockwise to remove the chuck from the plunger.
(2) Replace the blade and the spring of chuck.
(3) Install the chuck to the plunger after the blade was replaced.
Then tighten the chuck.
FCX2000-UM-251-9730
Blade
Plunger
Hole
Chuck
Plunger-cap
Install
Remove
Blade hole part
Plunger
ø3.0 mm Blade and Spring
Chuck
4-12
Chuck
4. OPERATIONS
