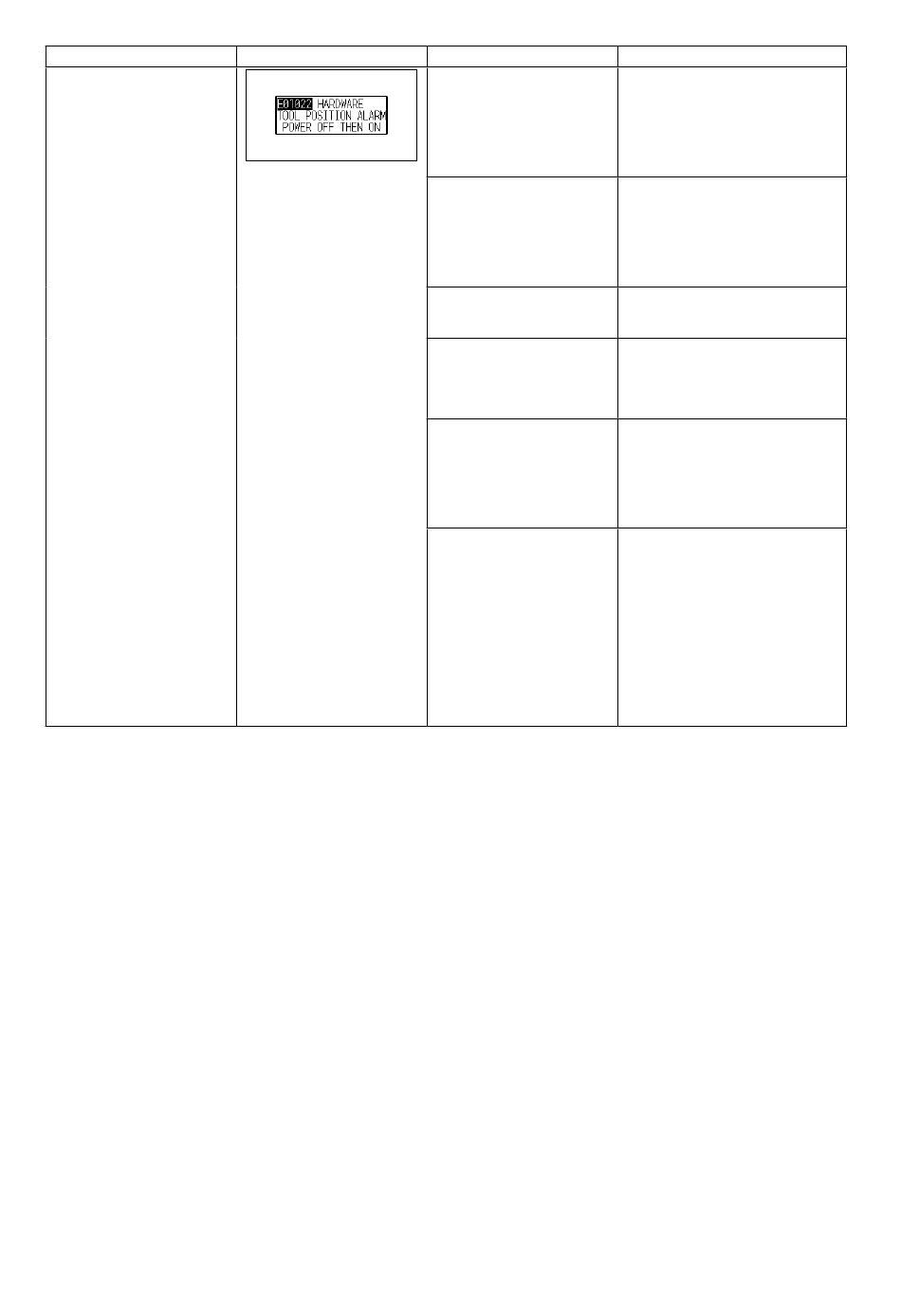

GRAPHTEC FCX2000 Service Manual page 206

Error cord No.
E01022
FCX2000-UM-251-9370
LCD Display
There was a heavy load
on the up and down
function of the tool
carriage.
The Y or X flexible cable
has damage.
There is the dust on the
pen height encoder strip.
The pen height encoder
strip has damage.
The flexible cable
for the pen height is
broken.
The wire of MC coil is
broken.
10-18
10 TROUBLESHOOTING
Cause
Remove the object disturbing
the operation, and then turn
on the power after turning off
the power.
Confirm the Y or X flexible
cable is not broken.
Replace the Y or X flexible
cable when it is broken.
Remove the dust from the
pen height encoder strip.
Replace the pen block
assembly when the pen height
encoder strip has damage.
Replace the pen block
assembly when the flexible
cable for the pen height has
damage.
Confirm the MC coil moves
smoothly.
There is possibility of broken
MC coil if it is not moved
smoothly.
Replace the Replace the pen
block assembly.
Solution
