9 ELECTRICAL ADJUSTMENTS

9.15 Adjusting the Offset of Registration Mark Sensor

This adjustment will adjust the registration sensor offset.
Perform this procedure if adjustment values could not copy from the SUB-NVRAM when replacing the main
board or if the registration sensors were replaced.
Preparation
This adjustment have to be performed after the sensitivity of sensor adjustment (Refer to the section 9.14.).
Print out the target sheet (Refer to the next page) on a printer.
The specification of the cross mark is 30 mm line length, and 0.3 to 0.5 mm line width.
The target sheet does not need to print if the recorded adjustment values are input.
How to adjust the registration mark sensor offset
(1) Set an target sheet of paper into the plotter. (The target sheet does not need to set if the recorded
adjustment values are input.)
(2) Mount a water-based fiber-tip pen into the Tool 1 holder.

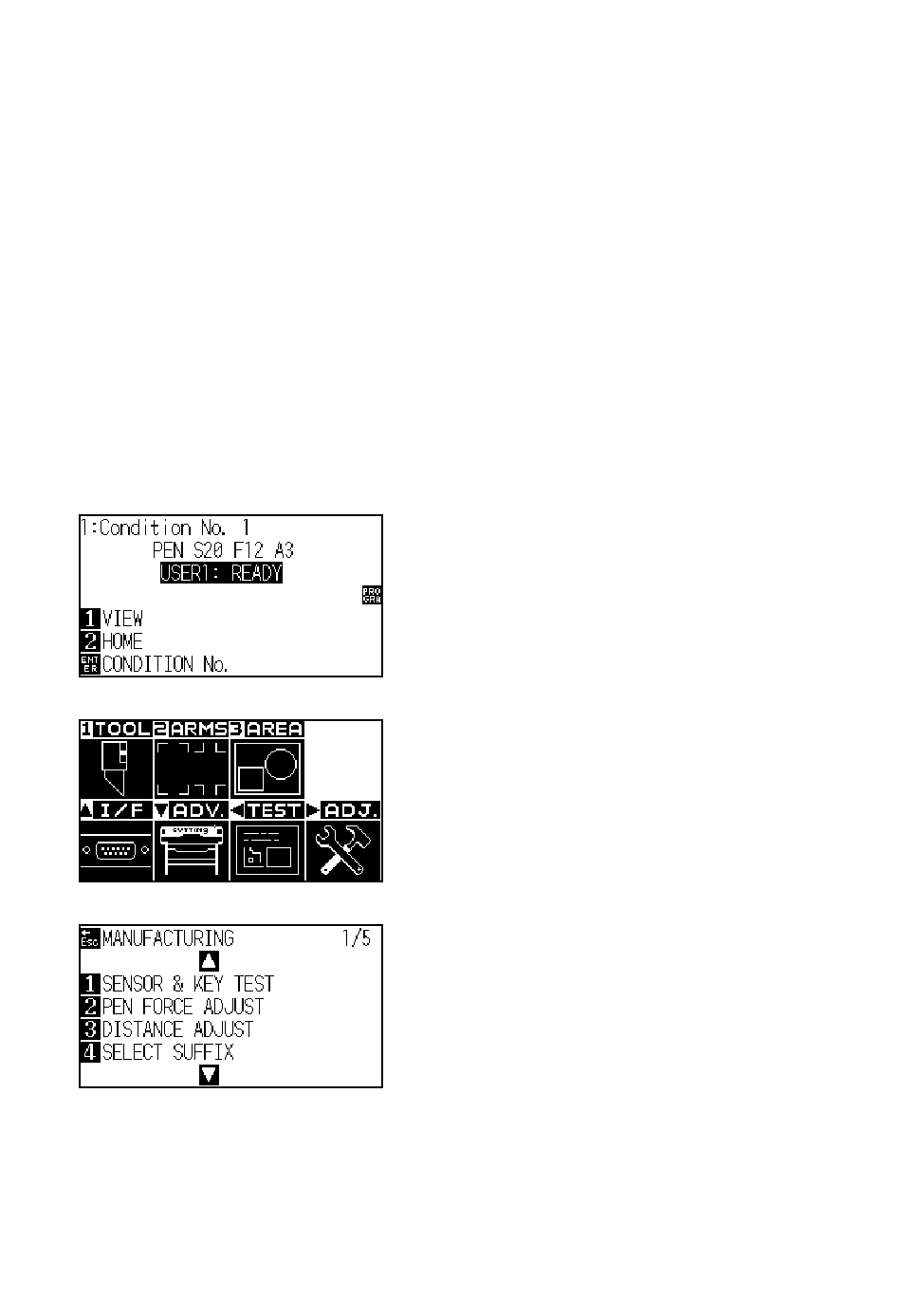

(3) Turn on the power while pressing the SLOW and ENTER keys.
(4) Press the PAUSE/MENU key at the following menu.
(5) The following menu is displayed, and then press the RIGHT ARROW key (ADJ).
(6) The following menu is displayed.
FCX2000-UM-251-9370 9-34
