GRAPHTEC FCX2000 Service Manual page 172

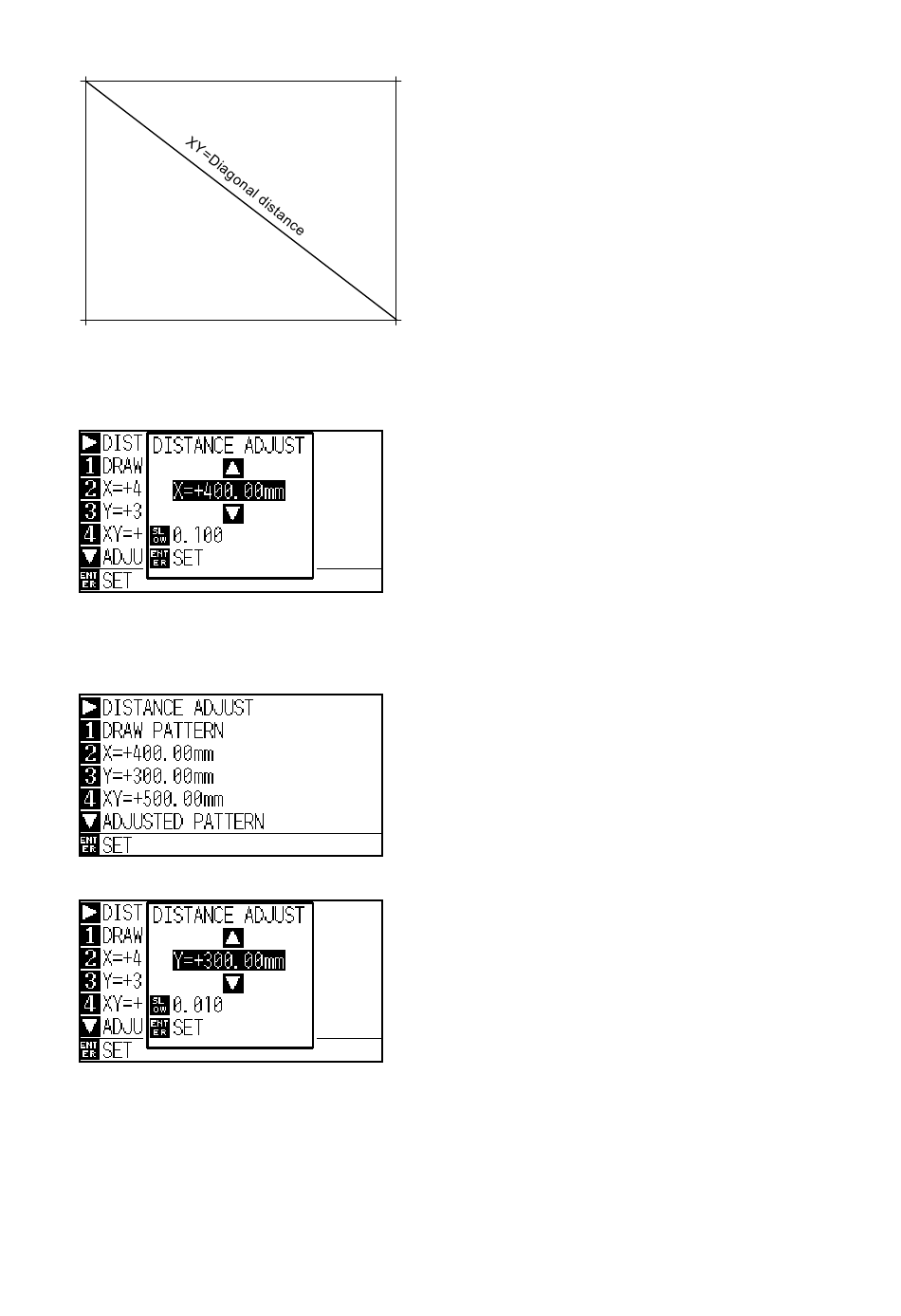

(12) Measure the X-axis distance, Y-axis distance and the diagonal distance.
Input the distance which was measured for the X, the Y, and the diagonal distance.
Press the F2 key (X=) to input the X-axis distance adjustment value.
Change the value by the UP ARROW key and the DOWN ARROW key.
The unit changes when the SLOW key was pressed.
Press the ENTER key to set value.
Press the F3 key (Y=) to input the Y-axis distance adjustment value.
Change the value by the UP ARROW key and the DOWN ARROW key.
The unit changes when the SLOW key was pressed.
