13 Target electrical component for WEEE instruction

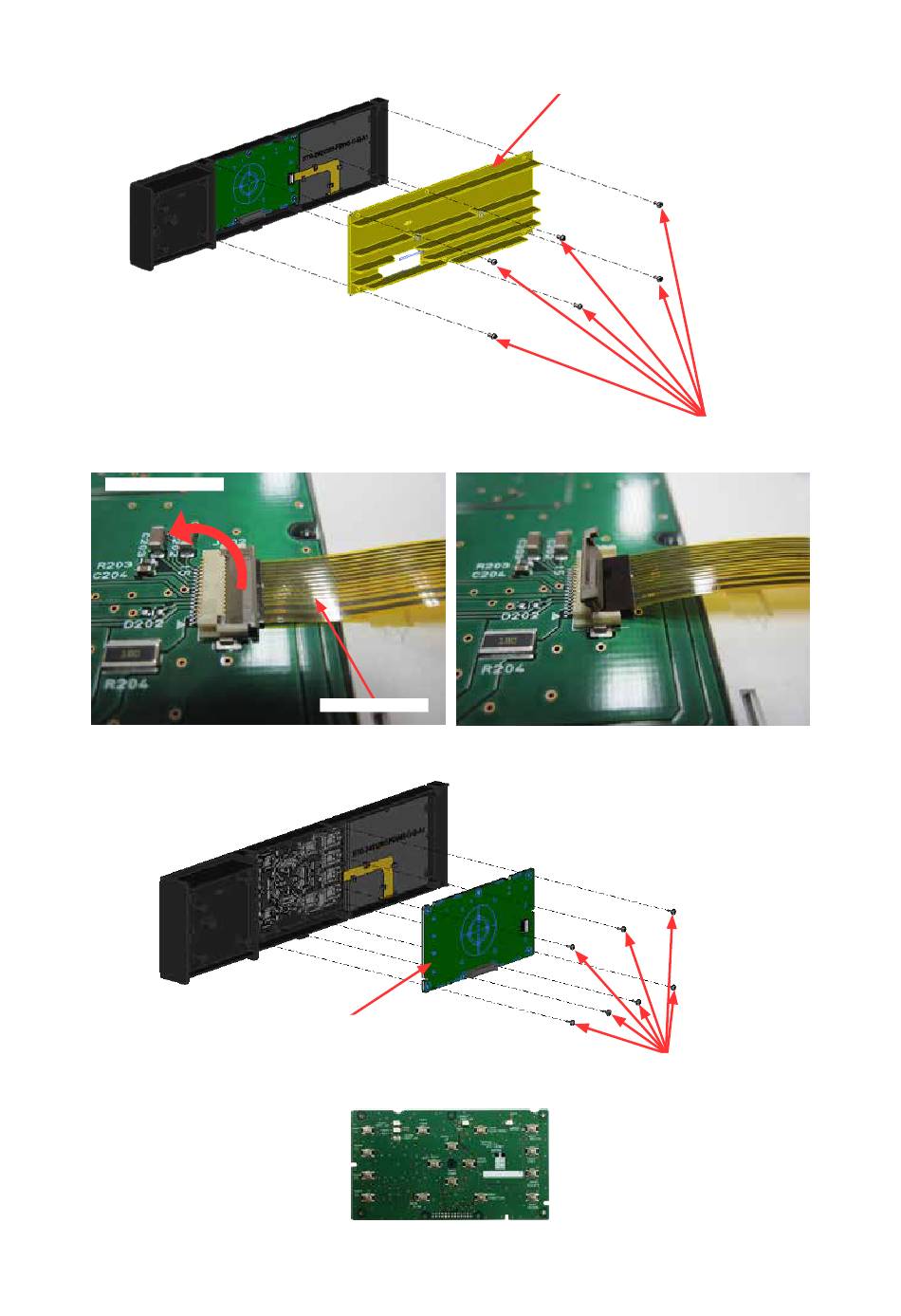

(8) Remove the six M3L6 self-tapping screws holding the control panel bottom cover, and the detach it.
Control panel bottom cover
M3L6 self-tapping screw
(9) Disconnect the LCD flexible cable from the control panel board.
Control panel board
LCD flexible cable
(10) Remove the six M2L5 self-tapping screws holding the control panel board.
Control panel board
M2L5 self-tapping screw
(11) Detach the control panel board.
FCX2000-UM-251-9370
13-9
