GRAPHTEC FCX2000 Service Manual page 37

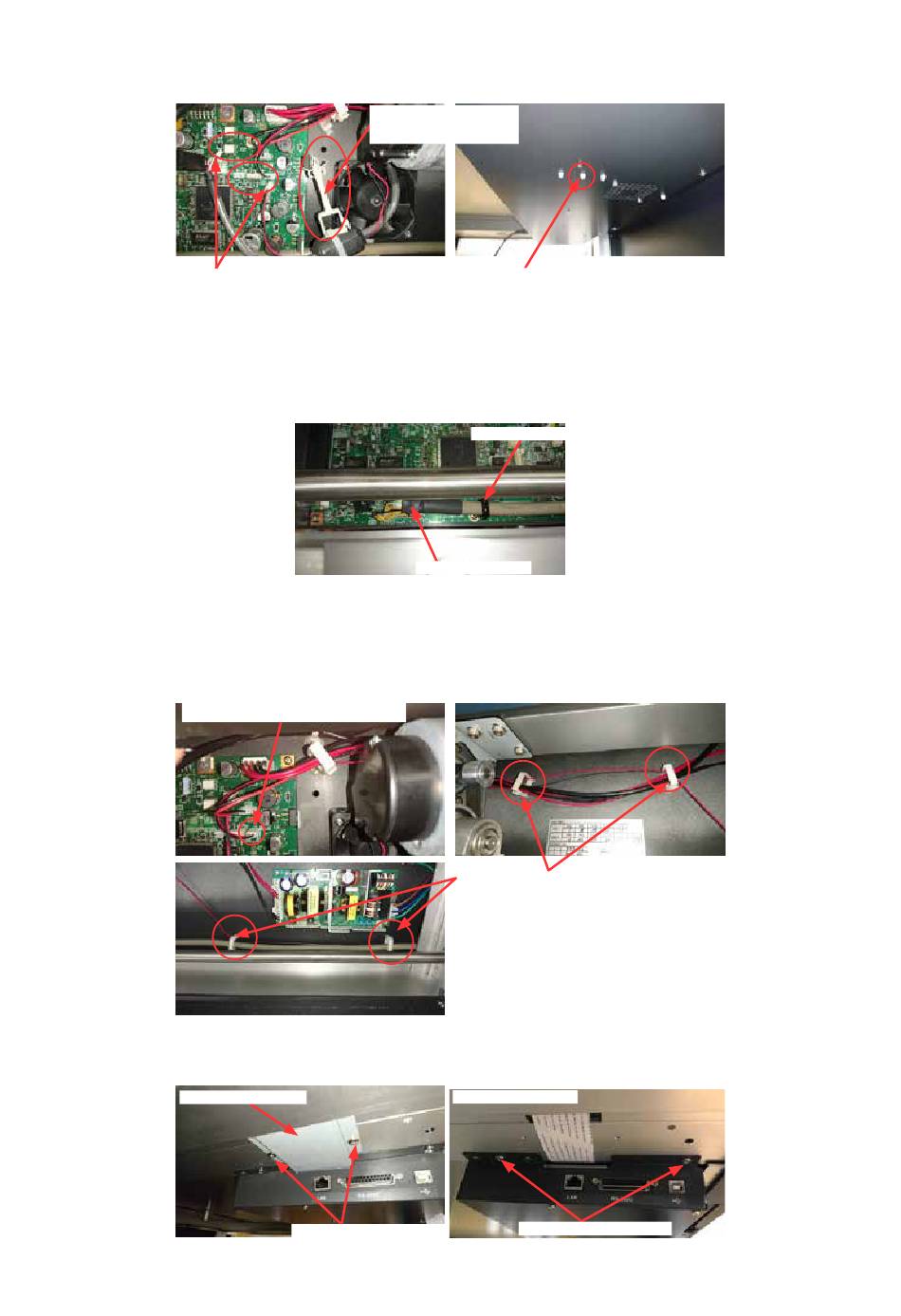

(11) Disconnect the X motor cables from the main board (J11.J17).
And then remove the cable core tie from the control box.
Disconnect the X motor cables from these
connectors (J11, J17).
(12) Disconnect the control panel cable from the main board.
And then remove the control panel cable tie from the main board.
(13) Disconnect the Emergency Stop Switch cable from the main board (J10).
And then remove all cable ties of the Emergency Stop Switch cable from the control box.
Disconnect the
Switch cable from the main
board (J10)
(14) Remove the two M4L8 binding head screws holding the X flexible cable cover, and then detach it.
And then Remove the two M4L8 binding head screws holding the IF side of control box.
X flexible cable cover
FCX2000-UM-251-9370
Remove the cable core
tie from the control box.
Control panel cable
Emergency Stop
.
M4L8 binding head screw
Pinch the bottom of cable core tie by using
the needle-nose pliers from bottom of control
box, and then remove the cable core tie from
the control box.
Control panel cable tie
Remove the cable ties from the control box.
IF side of control box
M4L8 binding head screw
