8.9

Adjusting the Y Bar Height

Adjust the Y bar height when the Y bar was detached or the Y bar height is different at the front and the rear.

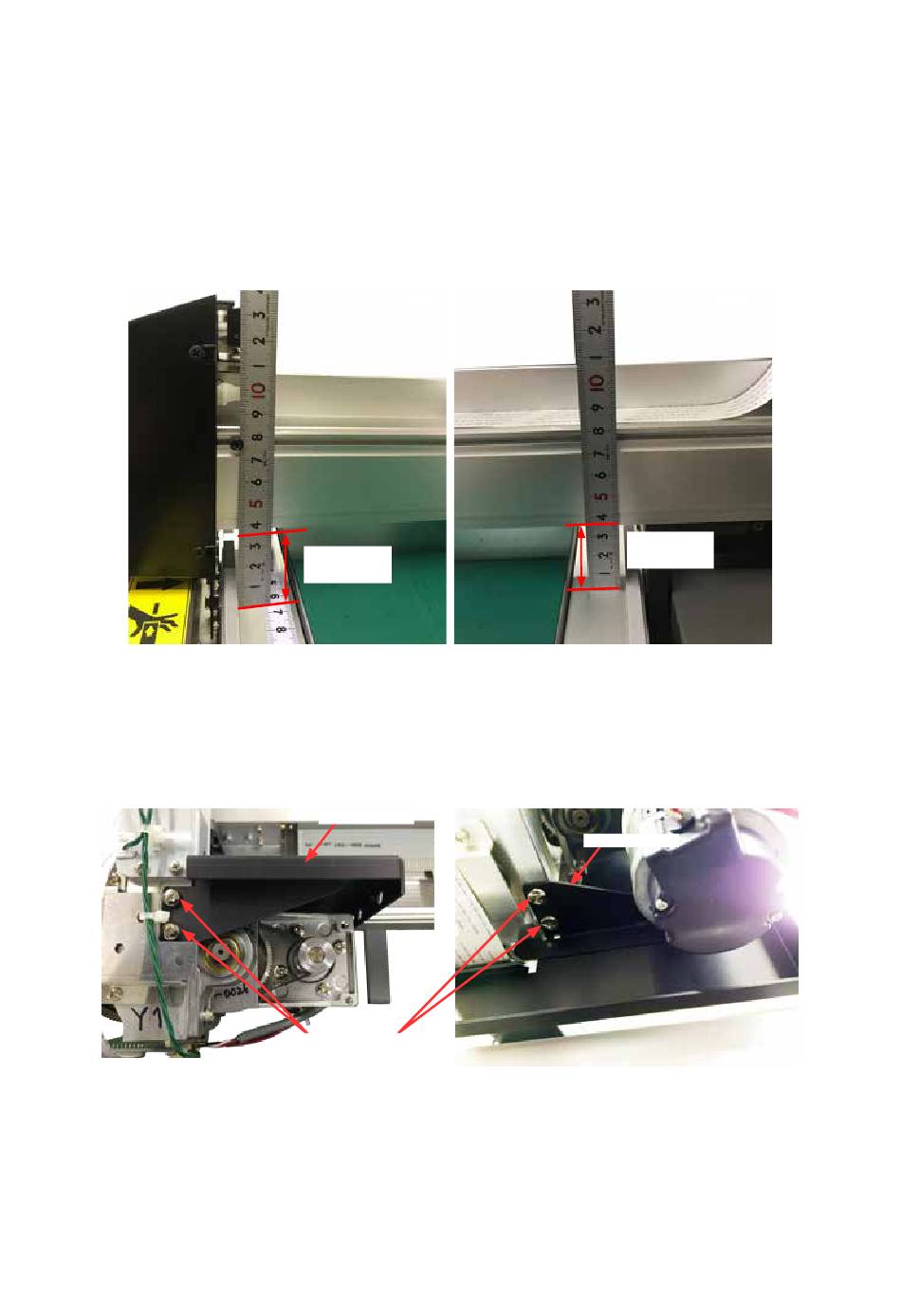

Measure the Y bar height between the right side bottom of Y bar and the X rail.
The Y bar height is:
34.5 mm for the VC model
28.5 mm for the ES model
And the different between the front height and the rear height must to be within 0.5 mm.
The Y bar height between the right side bottom of Y bar and the X rail
How to adjust the Y bar height
(1) Detach the front top cover (Refer to the section 8.1.10.).
(2) Detach the rear top cover (Refer to the section 8.1.11.).
(3) Detach the rear Y bar end cover (Refer to the section 8.1.16.).
(4) Remove the four M4L6 binding head screws holding the Y bar end plate, and then detach it.
FCX2000-UM-251-9370
Front
VC : 34.5 mm
ES : 28.5 mm
Y rear end plate
M4L6 binding head screw
8-69
8 DISASSEMBLY AND ASSEMBLY
Rear
VC : 34.5 mm
ES : 28.5 mm
Y rear end plate
