9.16 Back up to the SUB-NVRAM

This function will back up the adjustment values of main board to the SUB-NVRAM.
Perform this procedure when the SUM-NVRAM valuers were not able to copy to the main board.
The all adjustments need to be performed before performing this function.
Prepare following items before uploading
• PC
• SEND.EXE
• USB cable
• The FCX2000 series of USB driver must be installed before using the SEND.EXE.
• The serial number of FCX2000. (It will start from the character "A" with 9 digit numbers.)
• The back up command file. (This file has to create by the text editor such as word pad.)
How to create the back up command file
Type the following character by using the text editor.
a10,1.Axxxxxxxxx,
The "Axxxxxxxxx" is serial number of the FCX2000.
For example if the serial number is "A610200001", type as below.
a10,1,A601200001,
Save the file after typed it. (Don't forget to type the "," comma of last.)
Procedure
The back up command file should be sent in the READY menu of maintenance mode.
(1) Turn on the power while pressing the SLOW key and the ENTER key.
The following menu is displayed.
(2) Send the back up command file to the FCX2000 by using the SEND.EXE.
(3) Turn off the power after the "READY" was displayed on the LCD of FCX2000.
FCX2000-UM-251-9370
9 ELECTRICAL ADJUSTMENTS

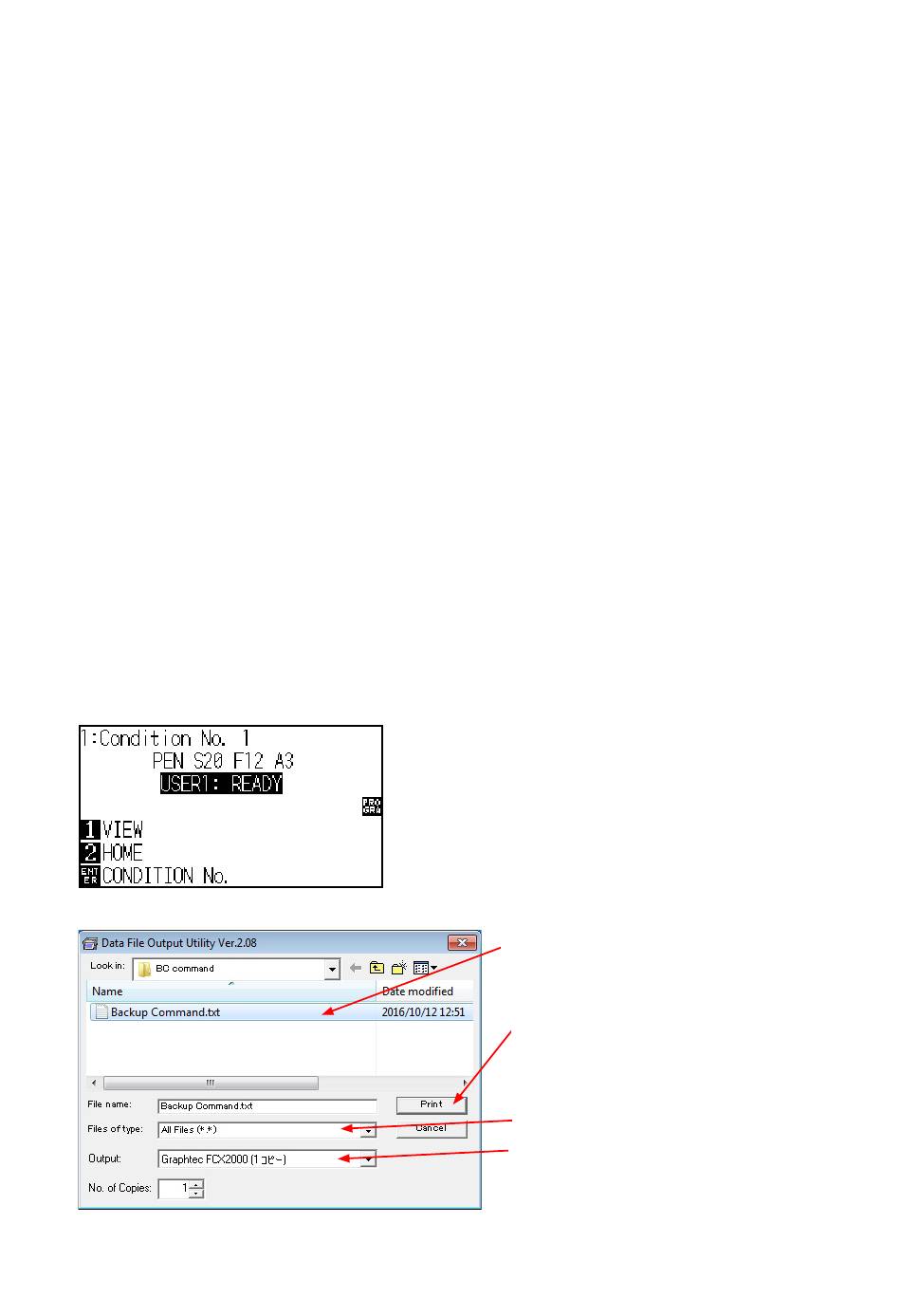

Select the back up command file.
Press the Print button after the back up
command file and the output device were
selected.
Select All files.
Select the FCX2000 for output device.
Confirm the active device of FC2000 at
the Device and Printers.
9-38
