Attaching A Tool - GRAPHTEC FCX2000 Service Manual

4. OPERATIONS
4.5

Attaching a Tool

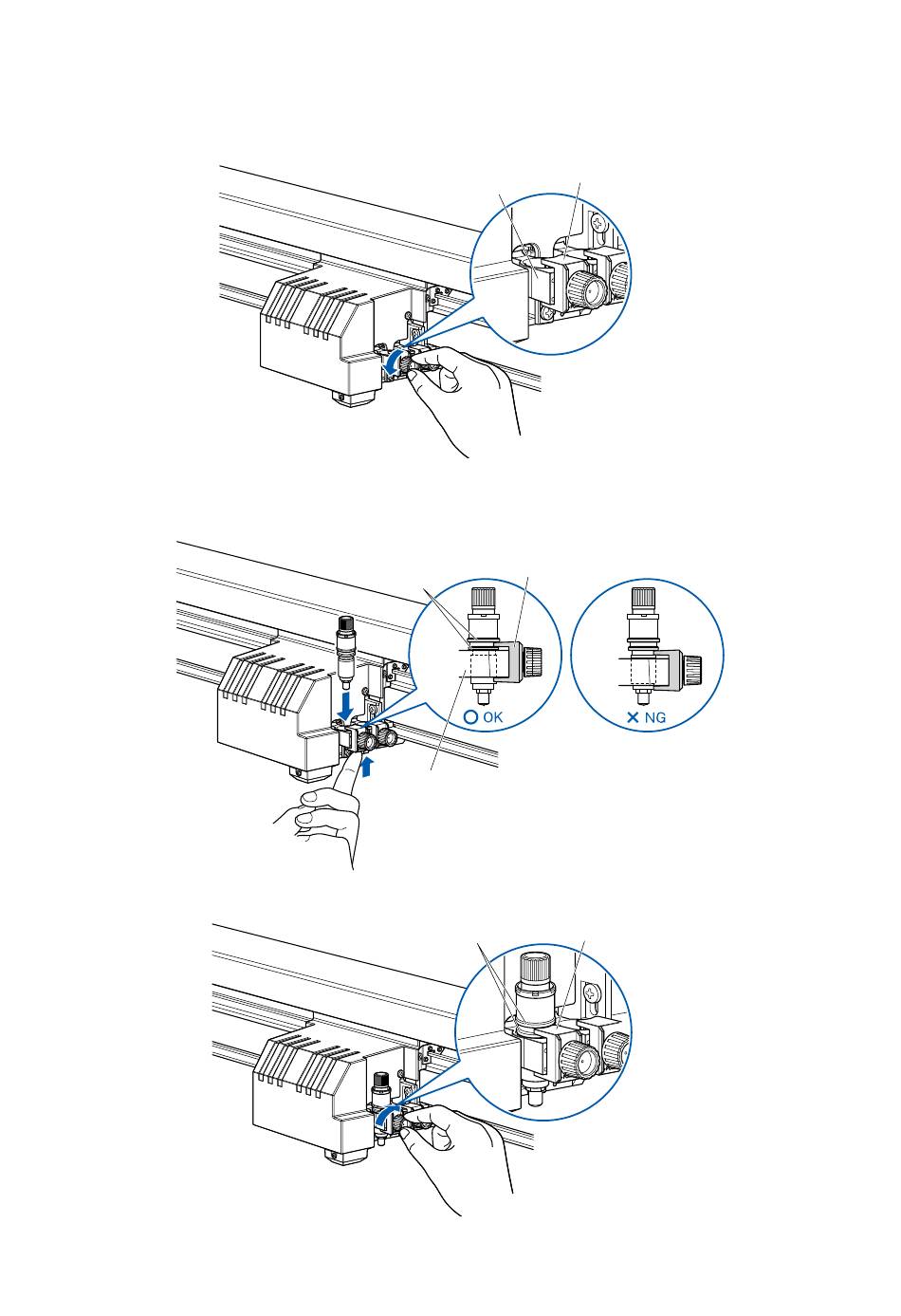

How to attaching
(1) Loosen the tool holder screw.
Bracket to hold tool
Tool holder
2
1
(2) While pushing up the tool holder, push the tool into the holder until its flange completely touches the
upper part of the holder.
Bracket to hold tool
Flange
2
1
Tool holder
(3) Make sure that the tool bracket is engaged on the tool's flange, and then tighten the screw.
Bracket to hold tool
Flange
"
!
