8 DISASSEMBLY AND ASSEMBLY

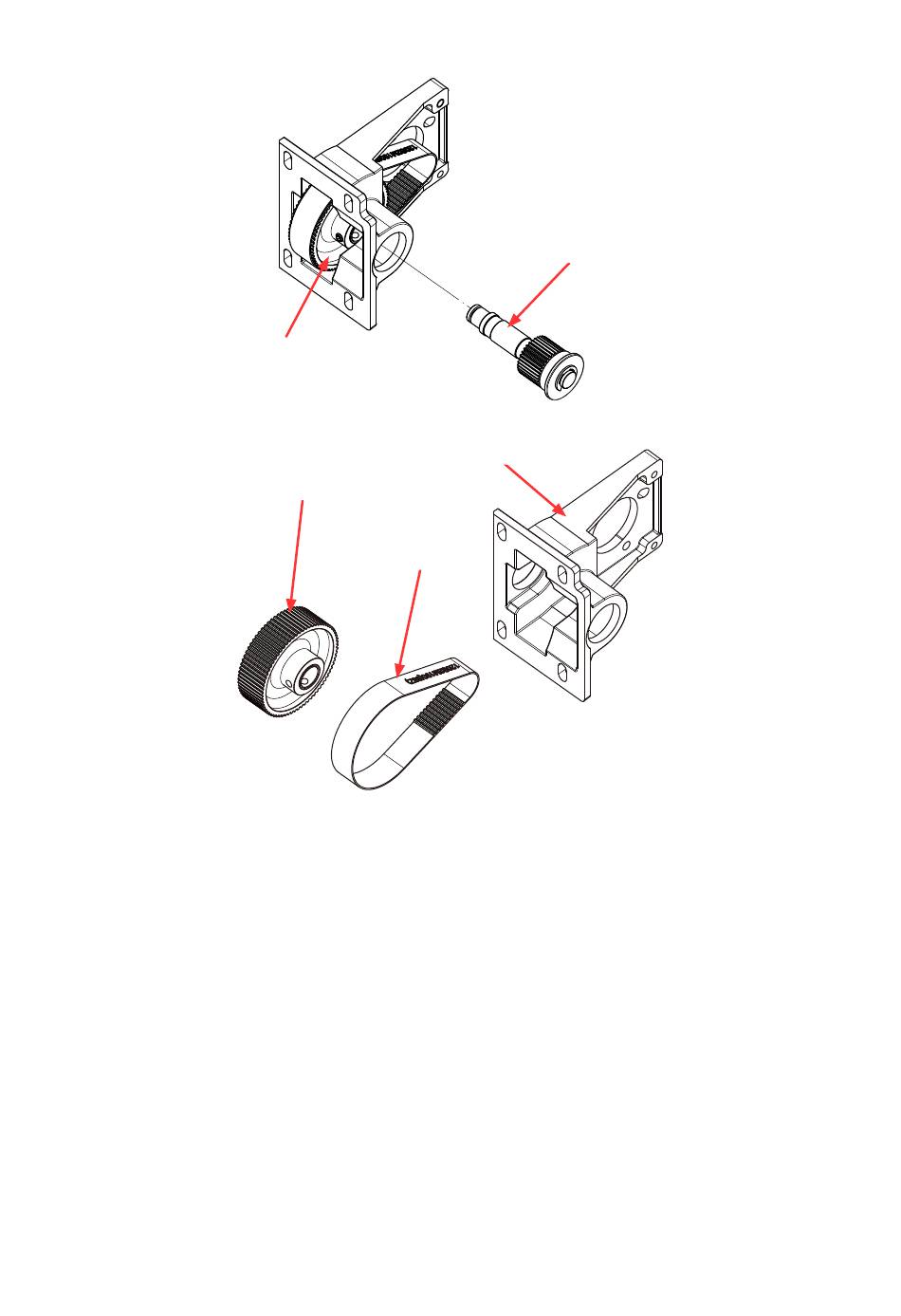

(6) Pull out the X drive gear shaft from the X motor drive gear.
X motor drive shaft
X motor drive gear
(7) Detach the X motor belt from the X motor bracket.
X motor bracket
X motor drive gear
X motor belt
How to reinstall the X Motor Belt
(1) Reattach the X motor belt in the reverse order in which it was detached.
(2) Adjust the play between the motor drive gear and the final drive gear when the motor bracket is installing
to the final gear box (Refer to the section 8.4.6.).
(3) Adjust the X motor belt tension when installing the X motor (Refer to the section 8.4.1.).
(4) Apply a few quantity of the silicon grease to the belt and the tooth of pulley.
