622659020
Cutter Blade Manual
The following describes items on cutter blade.
When the cutter blade is replaced, perform test cutting (cutting test) to adjust the cutter blade.
For operations of the plotter, refer to the user's manual of the plotter.
Contents of this manual and product specifications are subject to change without notice.
カッター刃に関する説明書
カッター刃に関する項目を説明します。
カッター刃を交換した場合は、テストカット （カットテスト）を行い、調整してください。
プロッター本体の操作に関しては、プロッター本体の取扱説明書を参照してください。
本書の内容および製品の仕様は、予告なしに変更することがあります。
Advertisement
Table of Contents
Related Manuals for GRAPHTEC CB15U
Summary of Contents for GRAPHTEC CB15U
- Page 1 622659020 Cutter Blade Manual The following describes items on cutter blade. When the cutter blade is replaced, perform test cutting (cutting test) to adjust the cutter blade. For operations of the plotter, refer to the user’s manual of the plotter. Contents of this manual and product specifications are subject to change without notice.

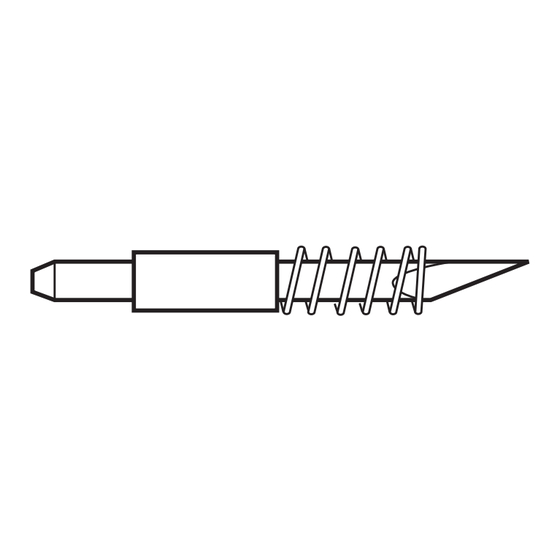

- Page 2 Handle cutter blades with care! Blade type Remarks Supersteel blades • CB15U (Ф1.5mm) The maximum cutting distance is about 4000 m (depending on the media and cutting pressure used). CB15U-K20 (Ф1.5mm) Remove the spring from the cutting blade for plunger (PHP33-CB15N / PHP35-CB15).
- Page 3 (FORCE) Tool holder 2: 1 to 48 Cutter blade type Offset Cutter blade type/ CB09U, CB15U, CB15U-K20, offset (OFFSET) -5 to +5 CB15U-K30 1 to 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, Speed (SPEED)
- Page 4 Supplies Item Model Contents CB09UB-5 0.9 mm diameter, cemeted carbide blade (set of 5) CB15U-5 1.5 mm diameter, cemeted carbide blade (set of 5) Cutter blade CB15U-K20-2SP 1.5 mm diameter, cemeted carbide blade (set of 2) CB15U-K30-5 1.5 mm diameter, cemeted carbide blade (set of 5)
