8.1.12 Rear Bottom Cover

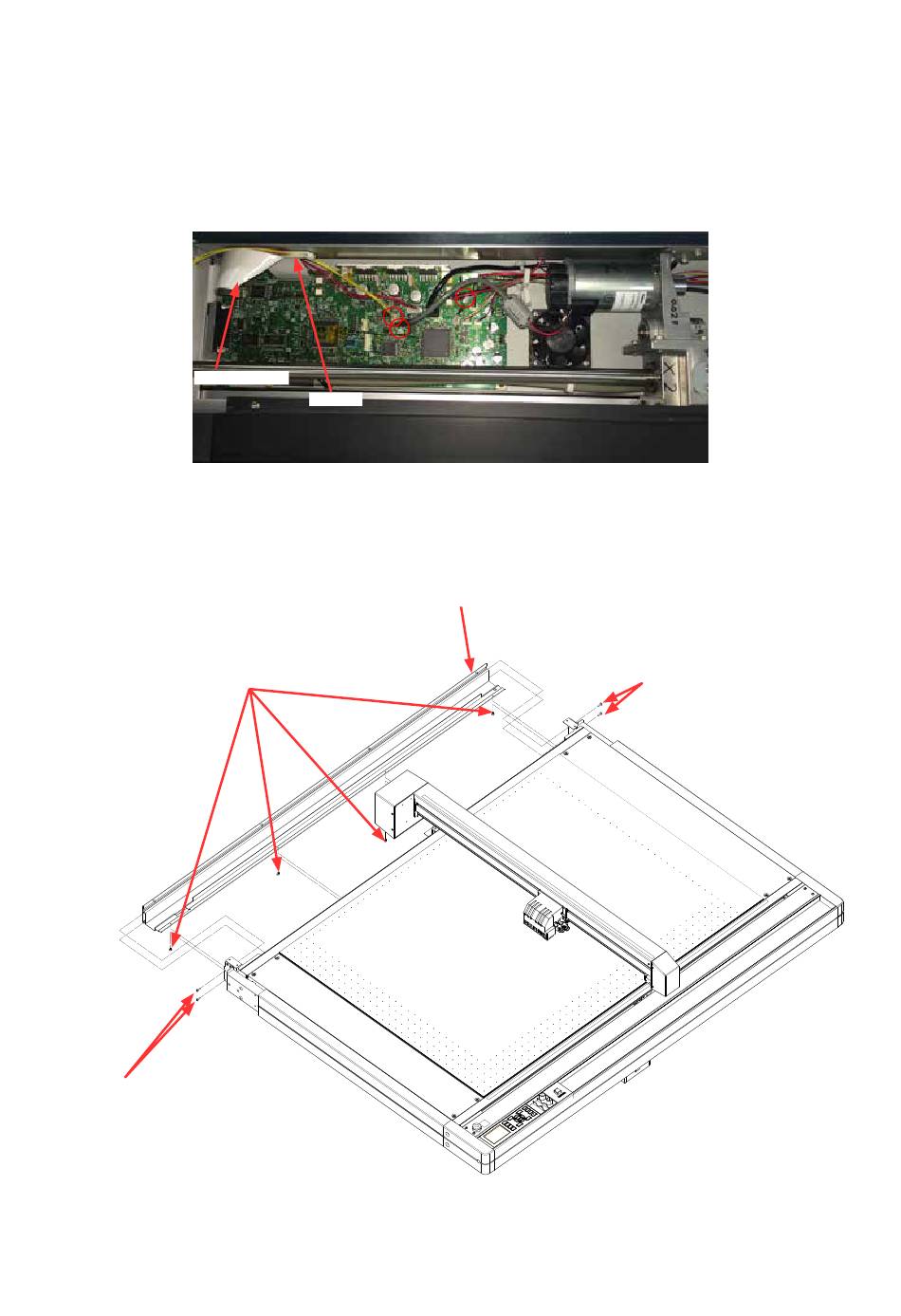

How to detach the Rear Bottom Cover
(1) Detach the right rear corner cover (Refer to the section 8.1.2.).
(2) Detach the left rear corner cover (Refer to the section 8.1.4.).
(3) Detach the left top cover (Refer to the section 8.1.6.).
(4) Disconnect the X Flexible cable from the main board and release the X flexible cable from the cable tie.
X Flexible cable
(5) Detach the rear top cover (Refer to the section 8.1.11.).
(6) Remove the seven M4L8 binding head screws holding the rear bottom cover for the FCX2000-60.
Remove the eight M4L8 binding head screws holding the rear bottom cover for the FCX2000-120.
Remove the nine M4L8 binding head screws holding the rear bottom cover for the FCX2000-180.
M4L8 binding head screw
M4L8 binding head screw
FCX2000-UM-251-9370
Cable tie
Rear bottom cover
8-8
8 DISASSEMBLY AND ASSEMBLY
M4L8 binding head screw
